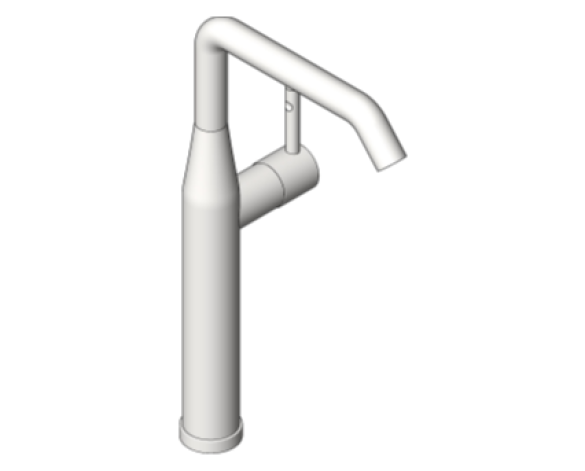

Grohe Essence Vessel Basin U-Spout - 32901001

4.4k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

10/07/2017

Download BIM

Add to collection

Available for:

Single-lever basin mixer 1/2" for free-standing basins XL-Size metal leversingle hole installationGROHE SilkMove® 28 mm ceramic cartridge with temperature limiterGROHE StarLight® chrome finishGROHE EcoJoy® mousseur 5.7 l/minGROHE AquaGuide adjustable mousseurswivel spout with mousseur and stop limitersmooth bodyflexible connection hosesGROHE QuickFix® Plus rapid installation systemmin. recommended pressure 1.0 bar

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Available Colours;

32901A01
32901AL1
32901BE1
32901DA1
32901DL1
32901EN1
32901GL1
32901GN1

_AuthorRyan Lashley
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeD2010
Asset TypeFixed
BIM Object NamePlumbingFixture_GroheLimited_EssenceVesselBasinUSpout_32901001_METRIC
Classification NameUniclass2015
Classification ValuePr_40_20_87_82
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorChrome
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2017-06-01T09:00:00
CW ConnectionYes
CWFU4.5
Default Elevation0 mm
DescriptionA free-standing basin always adds a special touch to a bathroom. Made of wood, ceramics or granite, it will always look uniquely elegant. With its cylindrical shapes and the glossy GROHE StarLight chrome finish, this bathroom tap of the GROHE Essence range is a perfect match for such a setting. Its extra high spout comes with an adjustable swivel range of up to 360°, offering all the flexibility you need to wash your hair comfortably over the basin or fill tall containers. Thanks to the GROHE QuickFix Plus system, you will have this single-lever mixer installed in the blink of an eye. With the GROHE EcoJoy feature, your water consumption will never exceed 6.6 litres per minute, even all full volume. Water volume and temperature can be controlled smoothly and effortlessly thanks to the integrated GROHE SilkMove technology. What more could you ask for? This bathroom tap has it all.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
EcojoyNo
Expected Life0
FeaturesA free-standing basin always adds a special touch to a bathroom. Made of wood, ceramics or granite, it will always look uniquely elegant. With its cylindrical shapes and the glossy GROHE StarLight chrome finish, this bathroom tap of the GROHE Essence range is a perfect match for such a setting. Its extra high spout comes with an adjustable swivel range of up to 360°, offering all the flexibility you need to wash your hair comfortably over the basin or fill tall containers. Thanks to the GROHE QuickFix Plus system, you will have this single-lever mixer installed in the blink of an eye. With the GROHE EcoJoy feature, your water consumption will never exceed 6.6 litres per minute, even all full volume. Water volume and temperature can be controlled smoothly and effortlessly thanks to the integrated GROHE SilkMove technology. What more could you ask for? This bathroom tap has it all.
FinishChrome
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe Limited
Manufacturer NameGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelEssence Basin mixer 1/2" XL-Size
Model Number32901001
Model ReferenceEssence Basin mixer 1/2" XL-Size
NBS DescriptionWater supply fittings for sinks
NBS Object NameGrohe Limited - Water supply fittings for sinks
NBS Office Master Tagn/a
NBS Reference45-35-70/345
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Pipe MaterialGroheLimited-Pipework
Primary MaterialGroheLimited-Chorme
Product Documentation Linkwww.grohe.co.uk/en_gb/essence-basin-mixer-1-2-xl-size-32901001.html
Production Year2017
Product Page URLwww.grohe.co.uk/en_gb/essence-basin-mixer-1-2-xl-size-32901001.html
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments32901001
Type NameEssence Basin mixer 1/2" XL-Size
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
WFU0
