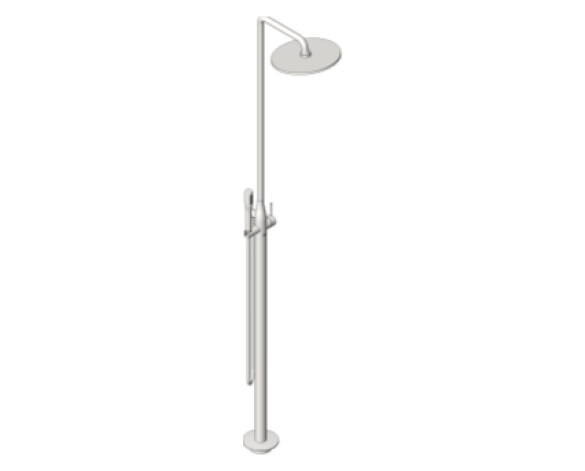

Grohe Essence - Single-Lever free-standing shower mixer - 23741001

Object metadata

• _AuthorRW
• _Authorized ByKris Atkinson
• _Bim Spec Guid0
• _BS Bible Version14
• _Created Bywww.bimstore.co.uk
• _Current Revision1
• _Distributed Bywww.bimstore.co.uk
• Accessibility Performancen/a
• ADA CompliantNo
• Assembly CodeD2010
• Asset TypeFixed
• BIM Object NamePlumbingFixture_GroheLimited_Essence_SingleLeverFreeStandingShowerMixer_23741001_METRIC
• Classification NameUniclass2015
• Classification ValuePr_40_20_87_81
• Code Performancen/a
• Cold Water Connection Diameter10 mm
• ColorChrome
• Constituentsn/a
• Created Byinfo-uk@grohe.com
• Created On2017-06-01T09:00:00
• CW ConnectionYes
• CWFU4.5
• Default Elevation0 mm
• DescriptionFloor-mountedset for final installation for 45 984 001, 29 038 001, 29 086 000 without roughing-in-set GROHE SilkMove 35 mm ceramic cartridge with temperature limiter GROHE StarLight chrome finish automatic diverter: head shower/hand shower 360° horizontal swivable shower arm integrated non-return valve in the shower outlet 1/2'' with shower holder Rainshower Cosmopolitan 310 head shower 9.5 l/min (27 477 000) with ball joint, rotation angle ± 15° GROHE DreamSpray perfect spray pattern SpeedClean anti-lime system hand shower Euphoria Cosmopolitan Stick (27 806 000) 7.6 l/min. Silverflex shower hose 1750 mm (28 388) protected against backflow min. recommended pressure 1.0 bar
• Documentation Certificatesn/a
• Documentation Installation Guiden/a
• Documentation Literaturen/a
• Documentation Maintenancen/a
• Documentation Technicaln/a
• Duration UnitYears
• EcojoyNo
• Expected Life0
• FeaturesFloor-mountedset for final installation for 45 984 001, 29 038 001, 29 086 000 without roughing-in-set GROHE SilkMove 35 mm ceramic cartridge with temperature limiter GROHE StarLight chrome finish automatic diverter: head shower/hand shower 360° horizontal swivable shower arm integrated non-return valve in the shower outlet 1/2'' with shower holder Rainshower Cosmopolitan 310 head shower 9.5 l/min (27 477 000) with ball joint, rotation angle ± 15° GROHE DreamSpray perfect spray pattern SpeedClean anti-lime system hand shower Euphoria Cosmopolitan Stick (27 806 000) 7.6 l/min. Silverflex shower hose 1750 mm (28 388) protected against backflow min. recommended pressure 1.0 bar
• FinishChrome
• Graden/a
• Hot Water Connection Diameter10 mm
• HW ConnectionYes
• HWFU4.5
• Ifc Export AsIfcPipeFitting
• Ifc Export TypeIfcPipeFittingType
• Industry Standardsn/a
• KeynoteN13
• LEED Creditn/a
• Low Emitting MaterialNo
• ManufacturerGrohe Limited
• Manufacturer NameGrohe Limited
• Masterformat Number01 52 19
• Masterformat TitleSanitary Facilities
• MaterialChrome
• ModelEssence Single-lever free-standing shower mixer 1/2''
• Model Number23741001
• Model ReferenceEssence Single-lever free-standing shower mixer 1/2''
• NBS DescriptionShower thermostatic water supply sets
• NBS Object NameGrohe Limited - Shower mixers
• NBS Office Master Tagn/a
• NBS Reference45-35-70/335
• Nominal Depth448 mm
• Nominal Height2298 mm
• Nominal Length310 mm
• Percentage Of Recycled Contentn/a
• Pipe MaterialGroheLimited-Pipework
• Primary MaterialGroheLimited-Chrome
• Product Documentation Linkcdn.cloud.grohe.com/tpi/2000/2000/2000/2009/2009872/original/2009872.pdf
• Production Year2017
• Product Page URLwww.grohe.co.uk/en_gb/single-lever-free-standing-shower-mixer-1-2-23741001.html
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Spare Partsn/a
• Type Comments23741001
• Type NameEssence Single-lever free-standing shower mixer 1/2''
• URLwww.grohe.com
• Vent ConnectionNo
• Warranty Descriptionn/a
• Warranty Duration Laborn/a
• Warranty Duration Partsn/a
• Warranty Duration UnitYears
• Warranty Guarantor Laborinfo-uk@grohe.com
• Warranty Guarantor Partsinfo-uk@grohe.com
• Waste ConnectionNo
• WFU0
