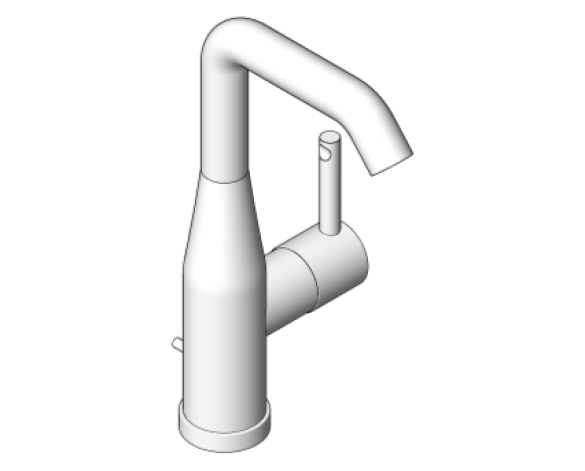

Grohe Essence New Basin Mixer 1/2" L-size

3k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

18/05/2016

Download BIM

Add to collection

Available for:

Essence NewSingle-lever basin mixer 1/2" L-Size• GROHE SilkMove® ceramic cartridge • GROHE StarLight® finish • GROHE EcoJoy® Mousseur 1.5 gpm• GROHE QuickFix® Plus installation system• Single hole installation• With temperature limiter• Swivel tubular spout with flow control and stop limiter• Smooth body• Stainless Steel Braided Flexible Supplies• Metal lever

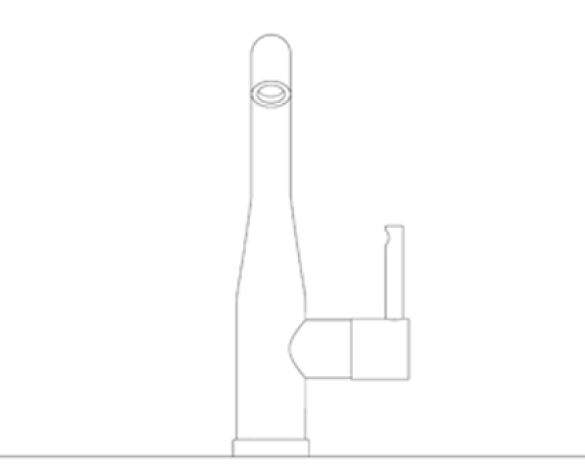

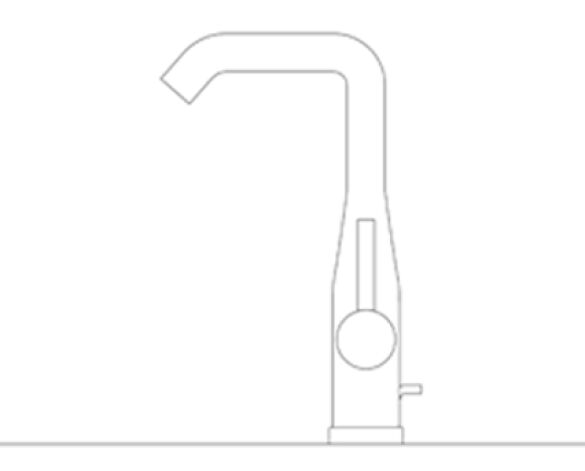

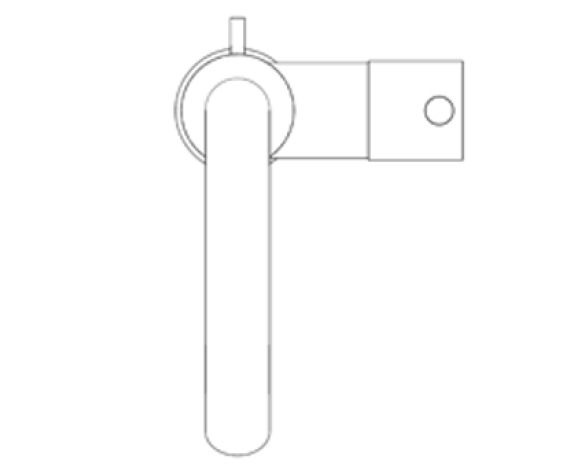

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_BIMspec_GUID0
_created byConnor Laing
_current revision1
_distributed bywww.bimstore.co.uk
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_87_98
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnAugust 2015
CW ConnectionYes
CWFU0
Default Elevation2312
DescriptionSingle Lever Basin Mixer U Spout (Large)
Documentation Certificateswww.grohe.com/cy/10457/search/search-result/product-details/?product=32628-G412&color=001&material=32628001
Documentation Installation Guidecdn08.grohe.com/lib/1/tpi/1852290.pdf
Documentation Literaturecdn08.grohe.com/lib/1/tpi/1904132.pdf
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1904132.pdf
Duration UnitYears
Expected Life0
Faucet MaterialGrohe-Chrome
FinishChrome
Height912
HW ConnectionYes
HWFU0
KeynoteN13
Low Emitting MaterialNo
ManufacturerGrohe
MaterialChrome
ModelEssence OHM - Single Lever Basin Mixer U Spout Large - 23486001
Model Number23486001
NameEssence OHM - Single Lever Basin Mixer U Spout Large - 23486001
NBS DescriptionWater supply fittings for wash basins and troughs
NBS Object NameWashbasin taps
NBS Reference45-35-70/371
Type CommentsSingle Lever Basin Mixer U Spout (Large)
Type NameEssence OHM - Single Lever Basin Mixer U Spout Large - 23486001
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width5
