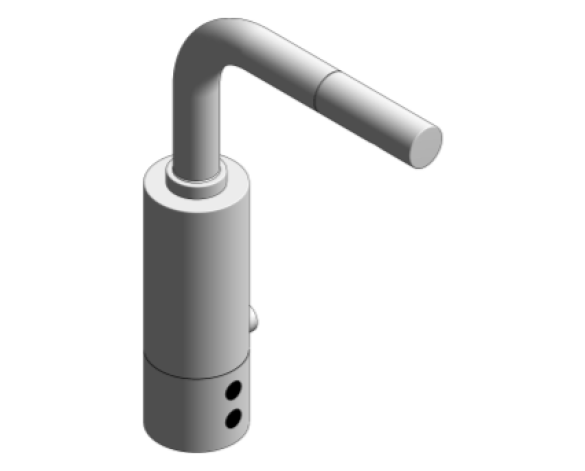

Grohe Essence E Infra-Red Electronic Basin Tap With Mixing Device and Waste Set - 36094000

Object metadata

• _authorized byConnor Laing
• _BIMspec_GUID0
• _created bybimstore
• _current revision2
• _distributed bywww.bimstore.co.uk
• ADA CompliantYes
• Assembly CodeC1030220
• Asset TypeFixed
• Classification NameUniclass2015
• Classification ValuePr_40_20_87_98
• Cold Water Conection Diamiter10 mm
• Cold Water Radius5 mm
• ColorChrome
• Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
• Created Byinfo-uk@grohe.com
• Created OnJuly 13 - Revised August 2015
• CW ConnectionYes
• CWFU4.5
• Default Elevation600 mm
• DescriptionGROHE StarLight® chrome finish. GROHE EcoJoy® technology for less water and perfect flow battery supply 6 V lithium-battery, type CR-P2 CE approved. multistage battery status display. safety shutdown circuit. solenoid valve. mixing device with hot water stop-valve. flow limiter 6 l/min. integrated mousseur. type of protection IP 59K. acoustic group I in accordance with DIN 4109. pop-up waste set 1 1/4inch. flexible connection hoses. dirt strainer. rapid installation system. functions to activate with remote control 36 206 000:. automatic flushing after 1 or 3 days without use. automatic safety stop after 60 sec. (factory set). activation of permanent run for thermal . disinfection for 3.5 or 11 min
• Documentation Certificateswww.grohe.co.uk/en_gb/essence-e-infra-red-electronic-basin-tap-1-2-with-mixing-device-and-waste-set-36094000.html
• Documentation Installation Guidewww.grohe.co.uk/en_gb/essence-e-infra-red-electronic-basin-tap-1-2-with-mixing-device-and-waste-set-36094000.html
• Documentation Literaturewww.grohe.co.uk/pim/profile/1000000/000000/10000/0000/600/121504.pdf
• Documentation Maintenancecdn08.grohe.com/lib/1/tpi/1734224.pdf
• Documentation Technicalwww.grohe.co.uk/pim/profile/1000000/000000/10000/0000/600/121504.pdf
• Duration UnitYears
• EcojoyYes
• Expected Life0
• FinishChrome
• Flow Rate6L/min
• Hot Water Conection Diamiter10 mm
• Hot Water Radius5 mm
• HW ConnectionYes
• HWFU4.5
• Industry StandardsN/A
• KeynoteN13
• Low Emitting MaterialYes
• ManufacturerGrohe AG
• MaterialChrome
• Material 2Grohe-Sensor-Black
• Mixing LeaverNo
• ModelEssence E Infra-Red Basin Tap - 36094000
• Model Number36094000
• NameEssence E Infra-Red Basin Tap - 36094000
• NBS DescriptionWater supply fittings for wash basins and troughs
• NBS Object NameWashbasin taps
• NBS Reference45-35-70/371
• Operating Pressure1 bar
• Percentage of Recycled Content0
• Product Documentation Linkwww.grohe.co.uk/pim/profile/1000000/000000/10000/0000/600/121504.pdf
• Product Page URLwww.grohe.co.uk/en_gb/essence-e-infra-red-electronic-basin-tap-1-2-with-mixing-device-and-waste-set-36094000.html
• Production Year2015
• Type CommentsInfra-red electronic basin mixer 1/2inch. Single hole installation.
• Type NameInfra-red electronic basin mixer 1/2inch. Single hole installation.
• URLwww.grohe.com
• Valve Spacing34 mm
• Vent ConnectionNo
• Warranty Duration UnitYears
• Waste ConnectionNo
• WFU0
