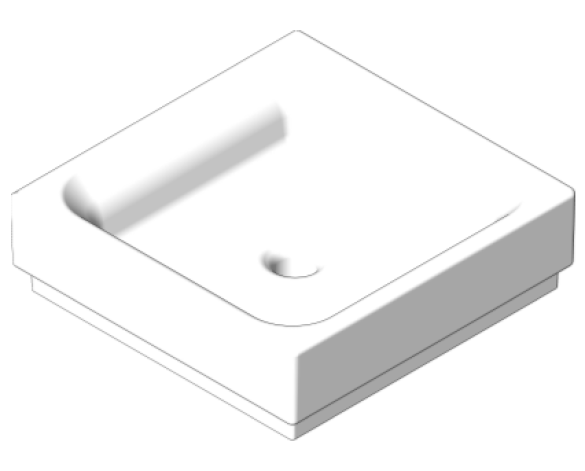

Grohe Cube Ceramic - Vessel basin 40 cm - 3948200H

by GROHE

Download Add to collection

Description

This download contains a plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.

Key Features:

Cube Ceramic vessel basin 40Without overflow400 x 400 mmIncl fixation setFine Fire Clayanti-drip coating and anti-bacterial glazing

Object Data

1 Revision

Last Updated

20/12/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Authorized ByRyan Lashley
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixtures_CubeCeramic_VesselBasin40_3948200H
Classification NameUniclass2015
Classification ValuePr_40_20_96_15
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorWhite
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2017-12-01T09:00:00
CW ConnectionNo
CWFU4.5
Descriptionwithout overflow 400 x 400 mm including fixation set fine fire clay With PureGuard hygiene coating (anti-stick coating and anti-bacterial glazing)
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
EcojoyNo
Expected Life0
Featureswithout overflow 400 x 400 mm including fixation set fine fire clay With PureGuard hygiene coating (anti-stick coating and anti-bacterial glazing)
FinishCeramic
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionNo
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe Limited
Manufacturer NameGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialCeramic
ModelCube Ceramic Vessel basin 40
Model Number3948200H
Model ReferenceCube Ceramic Vessel basin 40
NBS DescriptionCeramic sinks
NBS Object NameGrohe Limited - Ceramic sinks
NBS Office Master Tagn/a
NBS Reference45-35-70/340
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Primary MaterialCeramic, White
Product Documentation Linkwww.grohe.co.uk/en_gb/vessel-basin-40-3948200H.html
Production Year2017
Product Page URLwww.grohe.co.uk/en_gb/vessel-basin-40-3948200H.html
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments3948200H
Type NameCube Ceramic Vessel basin 40
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
WFU0
