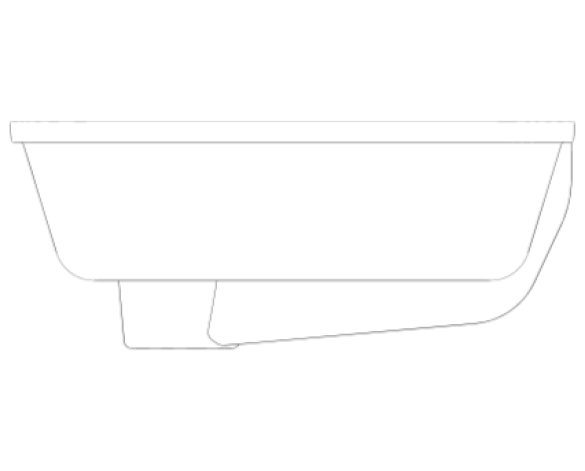

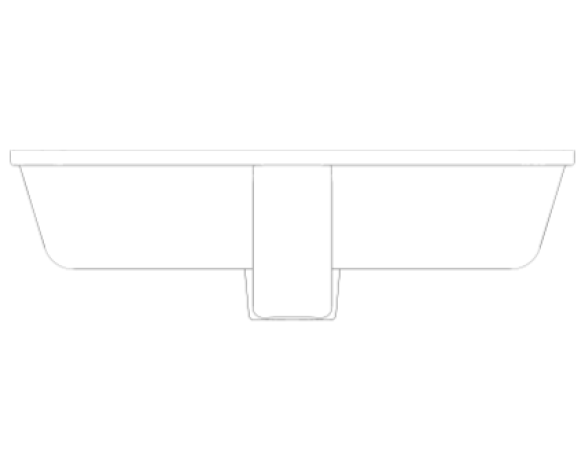

Grohe Cube Ceramic - Under Counter 50 - 3948000H

by GROHE

Download Add to collection

Description

This download contains a plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.

Key Features:

Cube Ceramic under-counter wash basin 50Installation from belowWith overflow492 x 370 mmIncl fixation setFine Fire Clayanti-drip coating and anti-bacterial glazing

Object Data

1 Revision

Last Updated

20/12/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Authorized ByRyan Lashley
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
ADA CompliantNo
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_PlumbingFixtures_CubeCeramic_UnderCounterWashBasin50_3948000H
Classification NameUniclass2015
Classification ValuePr_40_20_96_15
Code Performancen/a
Cold Water Connection Diameter10 mm
ColorWhite
Constituentsn/a
Created Byinfo-uk@grohe.com
Created On2017-12-01T09:00:00
CW ConnectionNo
CWFU4.5
Descriptioninstallation from below with overflow 492 x 370 mm including fixation set fine fire clay With PureGuard hygiene coating (anti-stick coating and anti-bacterial glazing)
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
EcojoyNo
Expected Life0
Featuresinstallation from below with overflow 492 x 370 mm including fixation set fine fire clay With PureGuard hygiene coating (anti-stick coating and anti-bacterial glazing)
FinishCeramic
Graden/a
Hot Water Connection Diameter10 mm
HW ConnectionNo
HWFU4.5
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
Industry Standardsn/a
KeynoteN13
LEED Creditn/a
Low Emitting MaterialNo
ManufacturerGrohe Limited
Manufacturer NameGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialCeramic
ModelCube Ceramic Under-counter wash basin 50
Model Number3948000H
Model ReferenceCube Ceramic Under-counter wash basin 50
NBS DescriptionCeramic sinks
NBS Object NameGrohe Limited - Ceramic sinks
NBS Office Master Tagn/a
NBS Reference45-35-70/340
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Percentage Of Recycled Contentn/a
Primary MaterialCeramic, White
Product Documentation Linkwww.grohe.co.uk/en_gb/under-counter-wash-basin-50-3948000H.html
Production Year2017
Product Page URLwww.grohe.co.uk/en_gb/under-counter-wash-basin-50-3948000H.html
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Type Comments3948000H
Type NameCube Ceramic Under-counter wash basin 50
URLwww.grohe.com
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
WFU0
