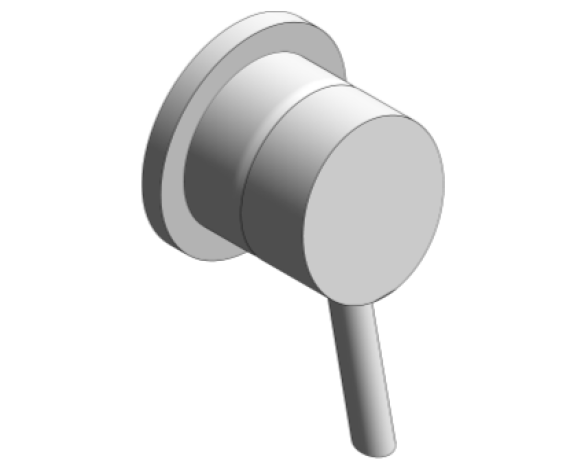

Grohe Concetto 3 Way Diverter ShowerHead / BathTub / HandShower - 29106001 / 29106EN1

GROHE SilkMove®GROHE StarLight® chrome finishMetal lever handle For 3 outlets: Showerhead/Hand Shower/Tub spout

For use with 3-Way Diverter Rough-In Valves (29 902) or (29 903)

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

1 Revision

29/11/2016

Compliant

Compliant

Not Available

Accompanying literature

_BIMspec_GUID0
_created byConnor Laing
_current revision1
_distributed bywww.bimstore.co.uk
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass2015
Classification ValuePr_40_20_87_96
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJune 2016
CW ConnectionYes
CWFU0
Default Elevation600 mm
DescriptionGROHE SilkMove® GROHE StarLight® chrome finish Metal lever handle For 3 outlets: Showerhead/Hand Shower/Tub spout For use with 3-Way Diverter Rough-In Valves (29 902) or (29 903)
Duration UnitYears
Expected Life0
Faucet MaterialGrohe-Chrome
Height67 mm
HW ConnectionYes
HWFU0
KeynoteN13
Low Emitting MaterialNo
ManufacturerGrohe
MaterialChrome
Mixing LeaverYes
Model3 way diverter handle -29106001
Model Number3 way diverter handle -29106001
NamePlumbing_Fixtures_Grohe_Concetto_ShowerHead-Handshower-Tub_29106001-29106EN1
NBS Object NameWater supply fittings for wash basins and troughs
NBS Reference45-35-70/371
Type CommentsSingle Lever Handle Diverter
Type Name3 way diverter handle -29106001
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width80 mm
