Grohe Concealed Flushing Cistern - 39054000

3.9k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

03/09/2015

Download BIM

Add to collection

Available for:

Concealed flushing cistern6 l / 3 lDual Flushwater supply from left/right or backaccoustic group Iround push button actuation Ø 50 mm with Eco buttonactuation from front, top, left or rightfor walls 18 -24 mm thicknessbowden cable 0.5 m lengthfor more flexibility in push button positionfixing bracketsflush pipeWC inlet connectorGROHE StarLight® chrome finishGROHE EcoJoy® technology for less waterand perfect flowmin. recommended pressure 0.2 bar

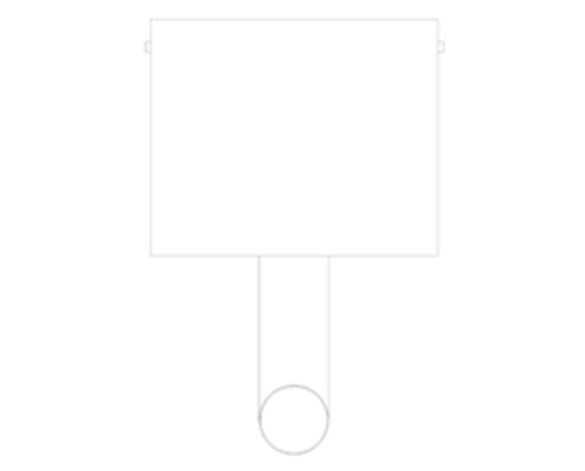

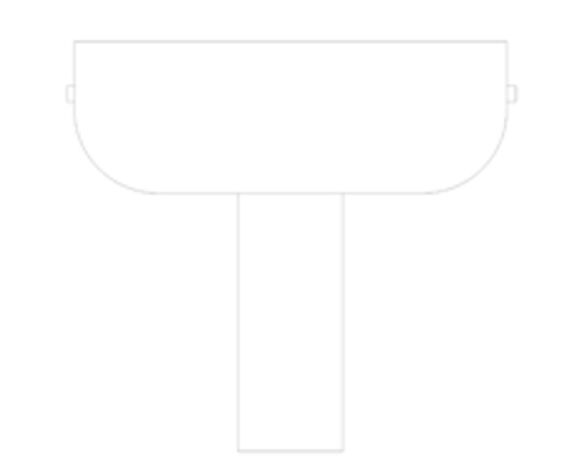

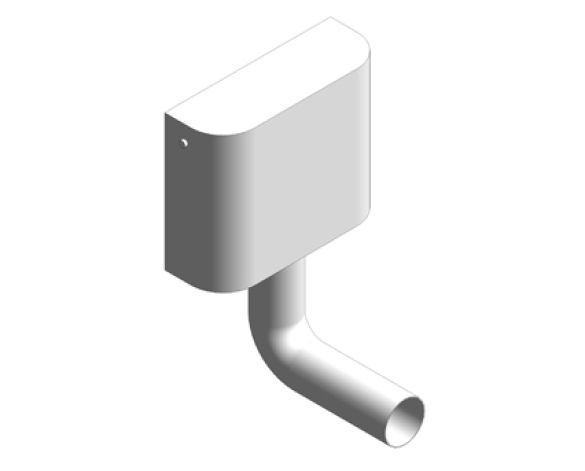

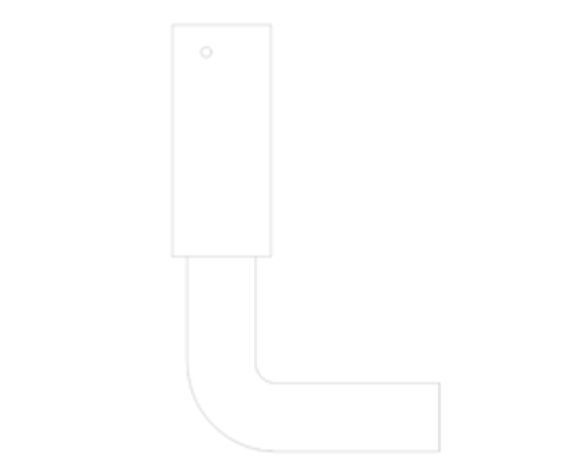

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_BIMspec_GUID0
_created byJoe Shaw
_created dateMarch 2015
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Adjuster Head Width60 mm
Adjuster Stem Height20 mm
Asset TypeFixed
Barcode0
Button Height20 mm
Button Width10 mm
Classification NameUniclass 2015
Classification ValuePr_40_20_93_78
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnMarch 2015
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionConcelaed Flusshing Cistern, Dual Flush, water supply from left/right or back
Disc Length188 mm
Documentation Certificateswww.grohe.co.uk/en_gb/concealed-flushing-cistern-39054000.html
Documentation Installation Guidewww.grohe.co.uk/pim/profile/1000000/000000/10000/9000/500/121846.pdf
Documentation Literaturewww.grohe.co.uk/en_gb/concealed-flushing-cistern-39054000.html
Documentation Technicalwww.grohe.co.uk/pim/profile/1000000/000000/10000/9000/500/121846.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-White
Handle Width15 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length194 mm
Low Emitting MaterialYes
Maintenance Informationcdn08.grohe.com/lib/1/tpi/1734224.pdf
ManufacturerGrohe Limited
Mixed Water Radius5 mm
ModelConcealed Flushing Cistern
Model NumberConcealed Flushing Cistern
NamePlumbing_Fixtures-Grohe-Europlus-OHM_sink_swivel_spout
NBS Object NameUrinal cisterns
NBS Reference45-35-70/354
Percentage of Recycled Content0
Product Page URLwww.grohe.co.uk/en_gb/relexa-shower-outlet-elbow-1-2-28628000.html
Serial Number0
Spare Parts Listwww.grohe.co.uk/en_gb/relexa-shower-outlet-elbow-1-2-28628000.html
Tag Number0
Type CommentsConcealed Flushing Cistern
Type NameConcealed Flushing Cistern
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width188 mm
