BAUEDGE Basin mixer 1/2″ S-Size (23330000)

by GROHE

Download Add to collection

Description

BauEdgeSingle-lever basin mixer 1/2"S-Sizesingle hole installationmetal leverGROHE Longlife 28 mm ceramic cartridgeGROHE StarLight® chrome finishGROHE EcoJoy® mousseur 5.7 l/minrapid installation systemsmooth bodyflexible connection hosesmin. recommended pressure 1.0 bar

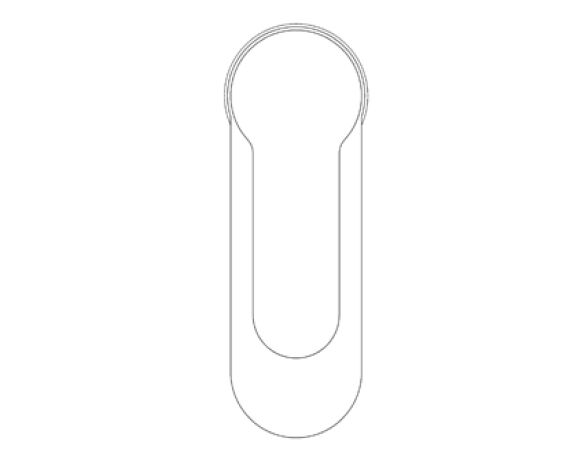

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

22/03/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_authorized byKris Atkinson
_BIMspec_GUID0
_created byRyan Lashley
_current revision1
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass 2015
Classification ValuePr_40_20_87_96
Cold Water Connection Diameter10 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnFebruary 2017
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionBauEdge. Single-lever basin mixer 1/2. S-Size. single hole installation. metal lever. GROHE Longlife 28 mm ceramic cartridge. GROHE StarLight® chrome finish. GROHE EcoJoy® mousseur 5.7 l/min. rapid installation system. smooth body. flexible connection hoses. min. recommended pressure 1.0 bar
Duration UnitYears
EcojoyYes
Expected Life0
Faucet MaterialGrohe-Chrome
FeaturesBauEdge. Single-lever basin mixer 1/2. S-Size. single hole installation. metal lever. GROHE Longlife 28 mm ceramic cartridge. GROHE StarLight® chrome finish. GROHE EcoJoy® mousseur 5.7 l/min. rapid installation system. smooth body. flexible connection hoses. min. recommended pressure 1.0 bar
FinishChrome
Hot Water Connection Diameter10 mm
HW ConnectionYes
HWFU4.5
Industry Standardsn/a
KeynoteN13
Low Emitting MaterialNo
ManufacturerGrohe Limited
Masterformat Number01 52 19
Masterformat TitleSanitary Facilities
MaterialChrome
ModelBauEdge - Single Lever Basin Mixer
Model NumberBauEdge - 23330000
NBS DescriptionWater supply fittings for wash basins and troughs;
NBS Object NameWater supply fittings for wash basins and troughs;
NBS Reference45-35-70/371
Production Year2016
Type CommentsBauEdge - 23330000
Type NameBauEdge - Single Lever Basin Mixer
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
