Grohe BauEdge Basin Mixer - 23356000

Description

GROHE BauEdgeBasin mixer 1/2"monobloc installationmetal lever28 mm ceramic cartridge with GROHE SilkMove®GROHE StarLight® chrome finishGROHE EcoJoy® mousseur 5.7 l/minpop-up waste set 1 1/4"flexible connection hosesrapid installation systemmin. recommended pressure 1.0 bar

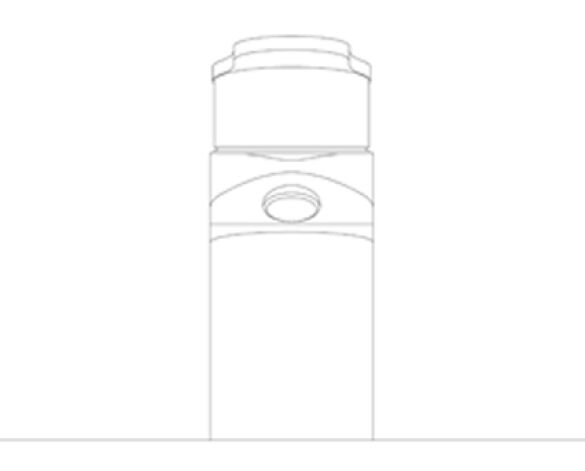

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

Object Data

1 Revision

Last Updated

10/09/2015

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_BIMspec_GUID0
_created byConnor Laing
_created dateMarch 2015
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Asset TypeFixed
Barcode0
Classification NameUniclass 2015
Classification ValuePr_40_20_87_98
Connection Diameter10 mm
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnMarch 2015
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionBasin mixer 1/2"
Documentation Certificateswww.grohe.co.uk/en_gb/grohe-bauedge-basin-mixer-1-2-23356000.html
Documentation Installation Guidewww.grohe.co.uk/pim/profile/1000000/000000/70000/4000/800/121902.pdf
Documentation Literaturewww.grohe.co.uk/en_gb/grohe-bauedge-basin-mixer-1-2-23356000.html
Documentation Technicalwww.grohe.co.uk/pim/profile/1000000/000000/70000/4000/800/121902.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Low Emitting MaterialYes
Maintenance Informationcdn08.grohe.com/lib/1/tpi/1734224.pdf
ManufacturerGrohe Limited
Mixed Water Radius5 mm
ModelGROHE BauEdge Basin Mixer 23356000
Model NumberGROHE BauEdge Basin Mixer 23356000
NamePlumbing_Fixtures-Grohe-Europlus-OHM_sink_swivel_spout
NBS Object NameWater supply fittings for wash basins and troughs
NBS Reference45-35-70/371
Overall Height195 mm
Overall Width252 mm
Percentage of Recycled Content0
Product Page URLwww.grohe.co.uk/en_gb/grohe-bauedge-basin-mixer-1-2-23356000.html
Serial Number0
Spare Parts Listwww.grohe.co.uk/en_gb/grohe-bauedge-basin-mixer-1-2-23356000.html
Tag Number0
Tap Width54 mm
Type CommentsBasin mixer 1/2"
Type NameGROHE BauEdge Basin Mixer 23356000
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
