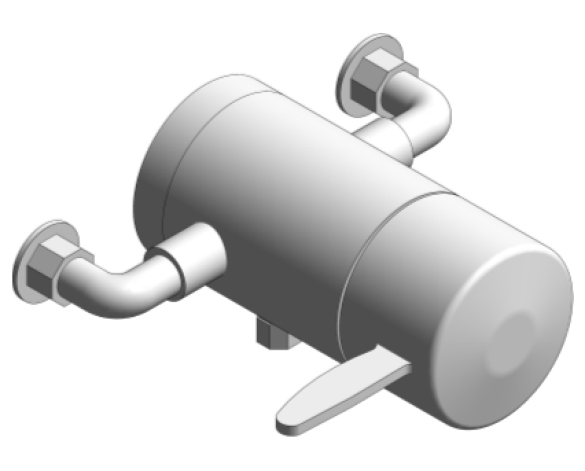

Avensys - Single Control DO8 Shower Mixer - 34038IL0

Download Add to collection

Description

wall mounted, swivel inlet unions
Thermostatic
brass body
wax thermoelement
factory set max. temperature 41°C
combined flow & temperature control handle
metal lever
TMV3 Certified
built-in non return valves
dirt strainers
shower outlet 1/2" top or bottom
reversible body for crossed supplies
flow limiters for high (>1.0 bar) or unequal pressures
GROHE StarLight chrome finish
recommended pressure 0.1 - 5.0 bar
max. pressure differential 5:1

Object Data

1 Revision

Last Updated

03/09/2015

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_BIMspec_GUID0
_created byJoe Shaw
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Adjuster Head Width50 mm
Adjuster Stem Height21 mm
Asset TypeFixed
Barcode0
Button Height20 mm
Button Width10 mm
Classification NameUniclass 2015
Classification ValuePr_40_20_87_98
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnMarch 2015
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionSingle Control DO8 Shower Mixer
Disc Length182 mm
Documentation Certificateswww.grohe.com/30898/search/search-result/product-details/?product=34038-G022&color=IL0&material=34038IL0
Documentation Installation Guidecdn08.grohe.com/lib/1/tpi/1168067.pdf
Documentation Literaturewww.grohe.com/30898/search/search-result/product-details/?product=34038-G022&color=IL0&material=34038IL0
Documentation Maintenancecdn08.grohe.com/lib/1/tpi/1168067.pdf
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1168067.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
Handle Width15 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
Inner Diameter15 mm
KeynoteN13
Length175 mm
Low Emitting MaterialYes
ManufacturerGrohe Limited
Mixed Water Radius5 mm
ModelAvensys
Model NumberAvensys
NamePlumbing_Fixtures-Grohe-Europlus-OHM_sink_swivel_spout
NBS Object NameWater supply fittings for wash basins and troughs
NBS Reference45-35-70/371
Percentage of Recycled Content0
Product Page URLwww.grohe.com/30898/search/search-result/product-details/?product=34038-G022&color=IL0&material=34038IL0
Serial Number0
Spare Parts Listwww.grohe.com/30898/search/search-result/product-details/?product=34038-G022&color=IL0&material=34038IL0
Tag Number0
Type CommentsMixer 1/2"
Type NameAvensys
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width175 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
