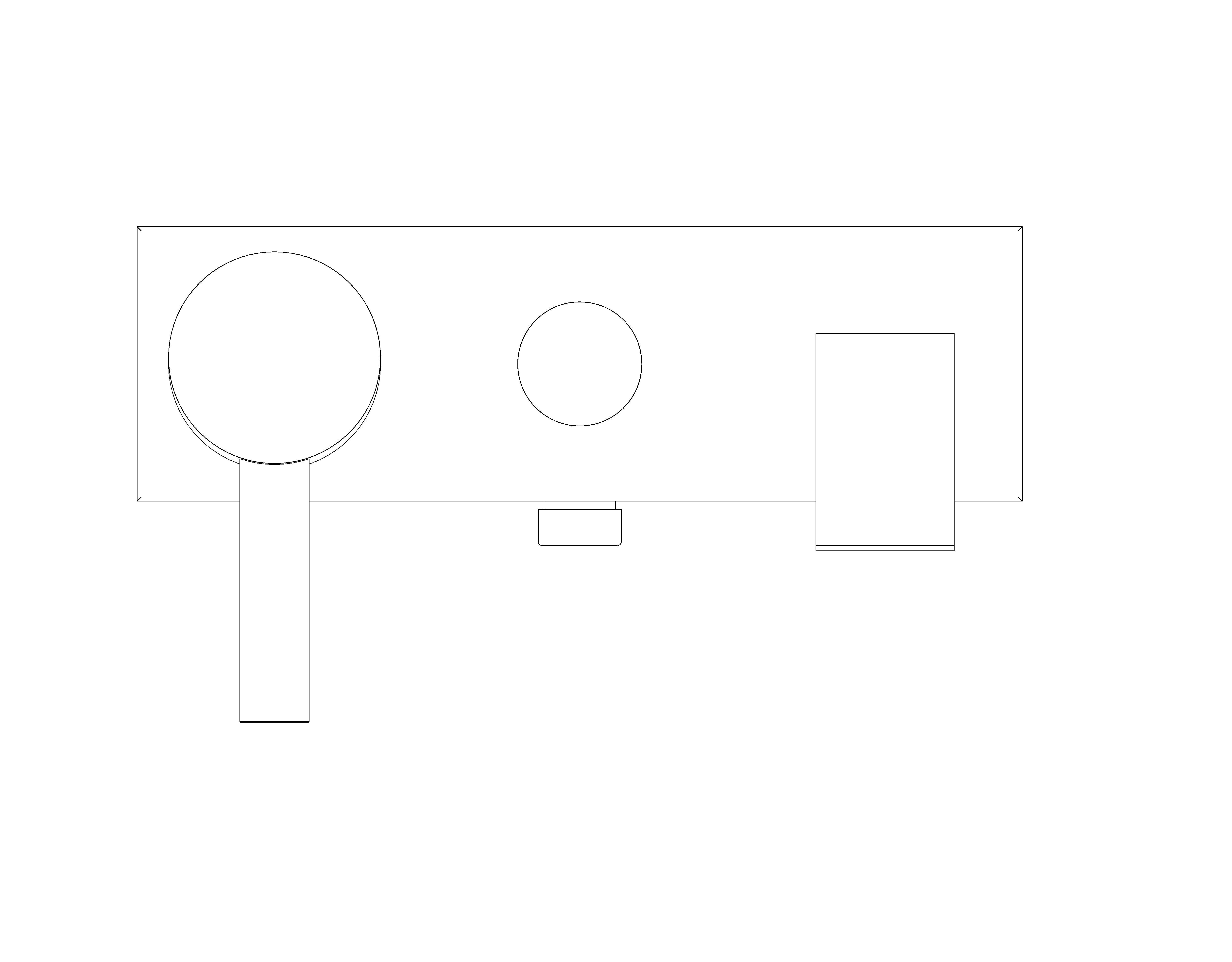

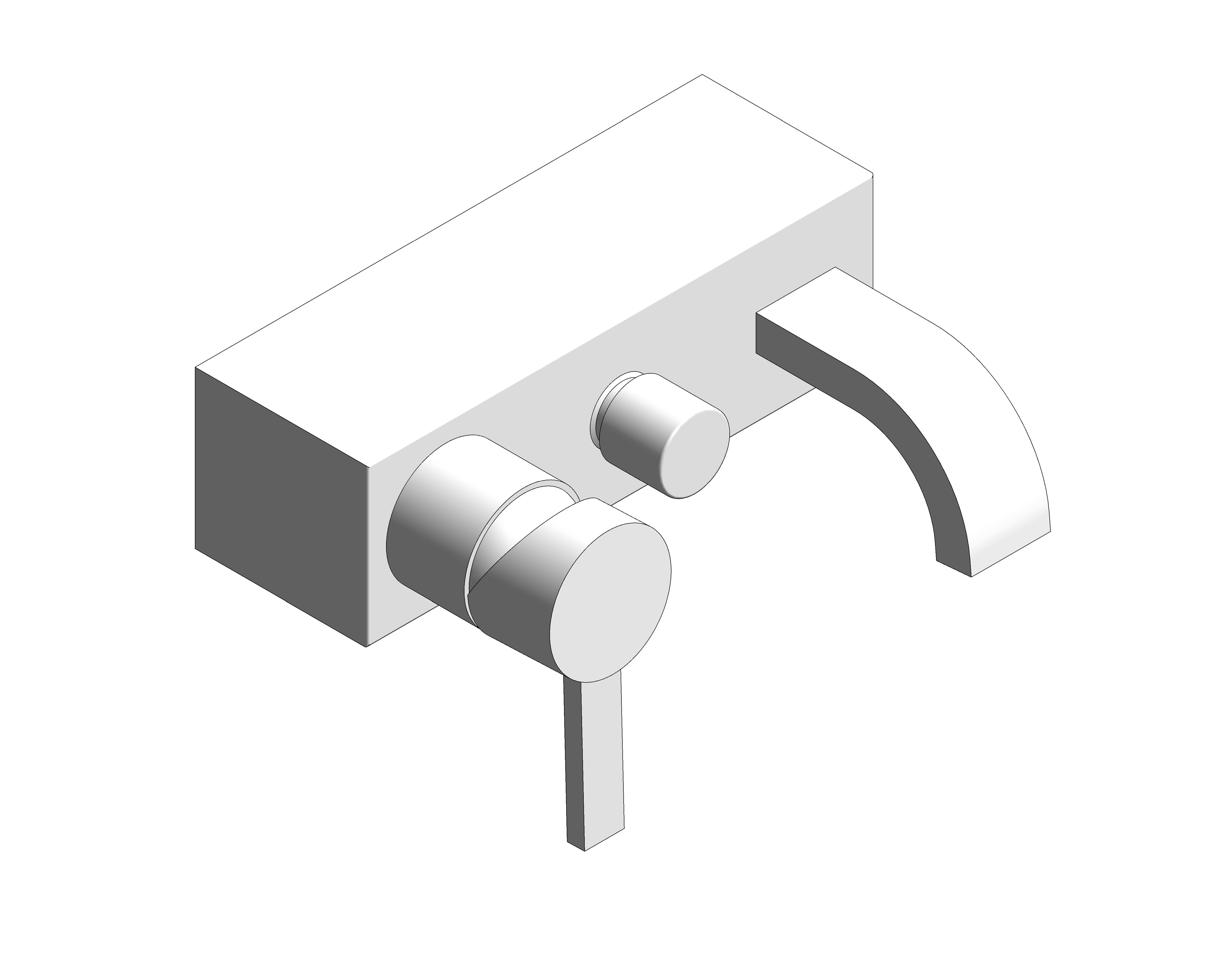

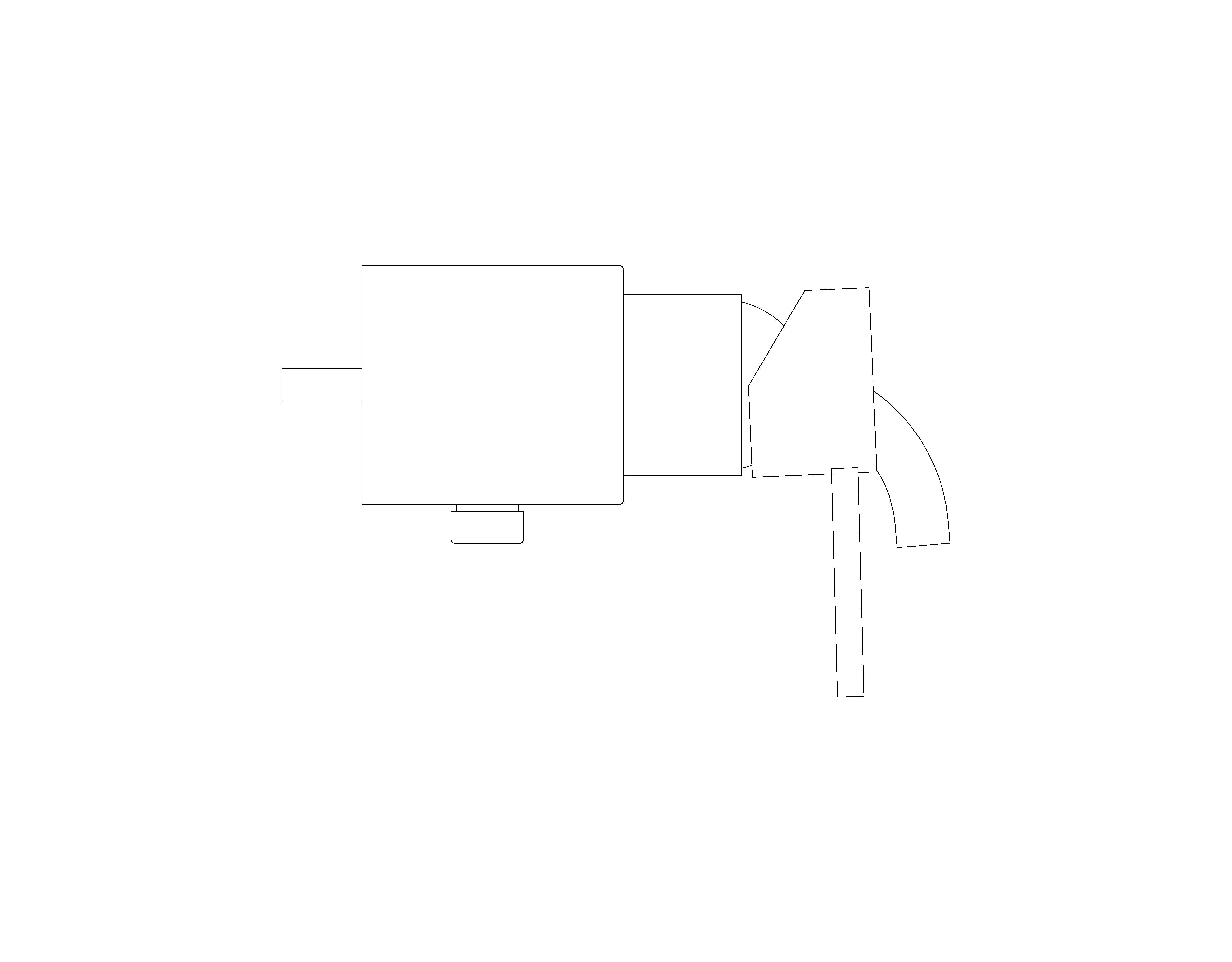

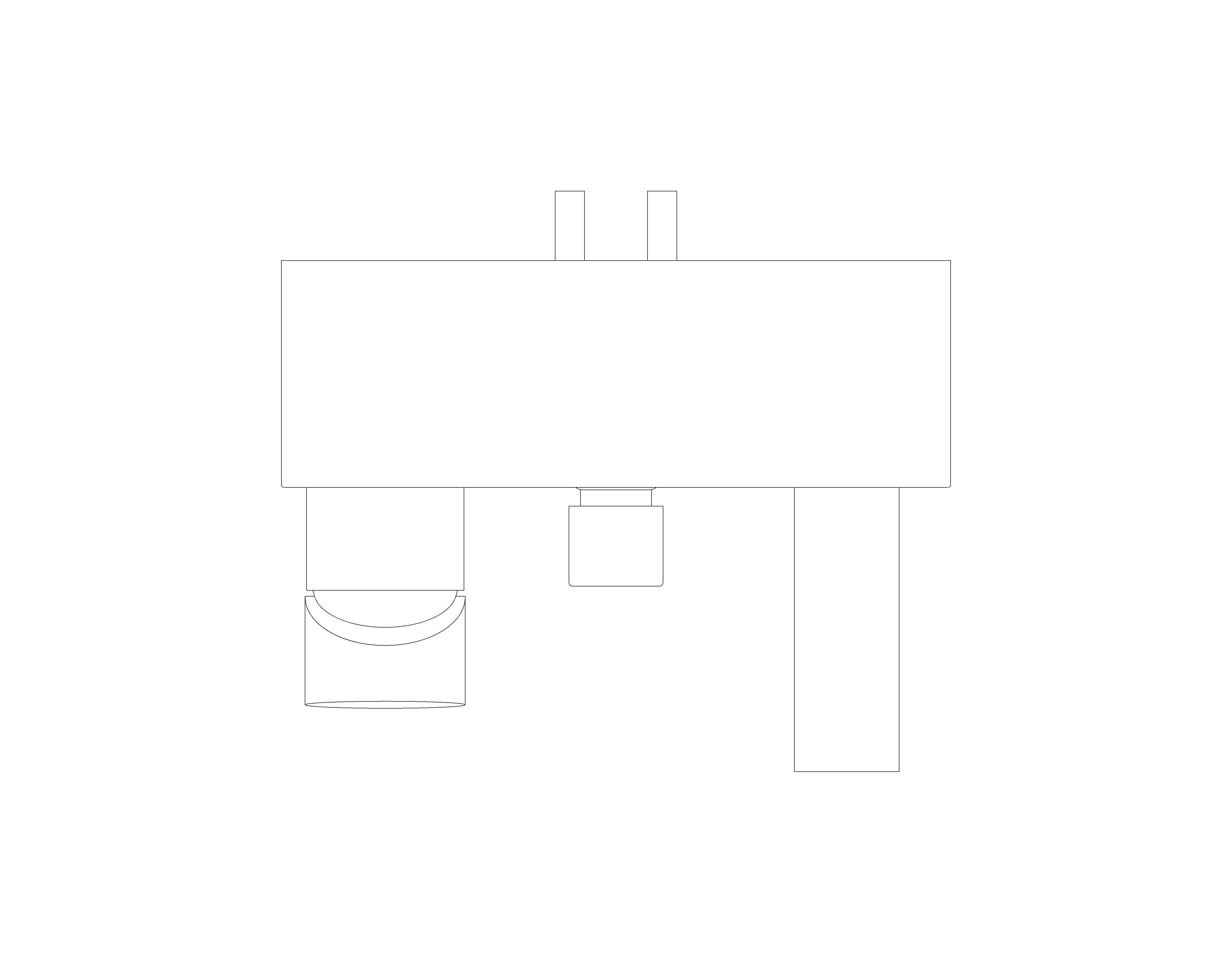

ALLURE Single-lever bath/shower mixer 1/2″ (32826000)

Object metadata

• _AuthorRL
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/grohe-allure-single-lever-bath-shower-mixer-1-2-32826000/document/object-user-guide
• Accessibility Performancen/a
• ADA CompliantNo
• Assembly CodeD2010700
• Asset Typen/a
• BIM Object NameGrohe_PlumbingFixture_Allure_SingleLeverBathShowerMixer_32826000
• Classification NameUniclass 2015
• Classification ValuePr_40_20_87_78
• Code Performancen/a
• Cold Water Connection Diameter10 mm
• ColorChrome
• Constituentsn/a
• Contact Groheinfo-uk@grohe.com
• Created Byinfo-uk@grohe.com
• Created On2020-11-01T09:00:00
• CWFU4.5
• Default Elevation0 mm
• Descriptionwall mounted GROHE SilkMove 46 mm ceramic cartridge GROHE StarLight chrome finish GROHE FastFixation system adjustable flow rate limiter automatic diverter: bath/shower mousseur integrated non-return valve in the shower outlet 1/2" flat wall installation with covered unions protected against backflow
• Documentation Certificateswww.bimstore.co/products/grohe-allure-single-lever-bath-shower-mixer-1-2-32826000/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/grohe-allure-single-lever-bath-shower-mixer-1-2-32826000/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/grohe-allure-single-lever-bath-shower-mixer-1-2-32826000/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/grohe-allure-single-lever-bath-shower-mixer-1-2-32826000/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/grohe-allure-single-lever-bath-shower-mixer-1-2-32826000/document/technical-data-sheet
• Duration UnitYears
• EcojoyNo
• Expected Life0
• Featureswall mounted GROHE SilkMove 46 mm ceramic cartridge GROHE StarLight chrome finish GROHE FastFixation system adjustable flow rate limiter automatic diverter: bath/shower mousseur integrated non-return valve in the shower outlet 1/2" flat wall installation with covered unions protected against backflow
• Finishn/a
• Graden/a
• Hot Water Connection Diameter10 mm
• HWFU4.5
• Ifc Export AsIfcPipeFitting
• Ifc Export TypeIfcPipeFittingType
• Industry Standardsn/a
• KeynoteN13
• LEED Creditn/a
• Low Emitting MaterialNo
• ManufacturerGrohe
• Manufacturer NameGrohe
• Masterformat Number01 52 19
• Masterformat TitleSanitary Facilities
• Materialn/a
• ModelAllure - Single-lever bath/shower mixer 1/2″
• Model Number32826000
• Model ReferenceAllure - Single-lever bath/shower mixer 1/2″
• NBS DescriptionShower mixers
• NBS Object NameGrohe - Shower mixers
• NBS Office Master Tagn/a
• NBS Reference45-35-70/335
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• Percentage Of Recycled Contentn/a
• Primary MaterialSteel, Chrome Plated
• Product Documentation Linkwww.grohe.co.uk/en_gb/allure-single-lever-bath-shower-mixer-1-2-32826000.html
• Production Year2020
• Product Page URLwww.grohe.co.uk/en_gb/allure-single-lever-bath-shower-mixer-1-2-32826000.html
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Spare Partsn/a
• Type Comments32826000
• Type NameAllure - Single-lever bath/shower mixer 1/2″
• URLwww.grohe.co.uk/en_gb/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborinfo-uk@grohe.com
• Warranty Guarantor Partsinfo-uk@grohe.com
