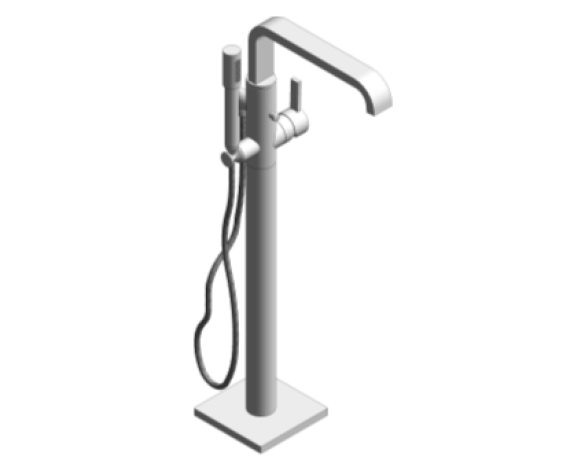

Grohe Allure Single-Lever Bath Mixer - 32754000

4.8k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

09/09/2015

Download BIM

Add to collection

Available for:

AllureSingle-lever bath mixer 1/2"floor-mounted set for final installation for 45 991 without roughing-in-setGROHE SilkMove® 46 mm ceramic cartridgeGROHE StarLight® chrome finish automatic diverter: bath/shower swivel spout with mousseur and stop limiter integrated non-return valve in the shower outlet 1/2" with shower holder Sena hand shower shower hose 1500 mm protected against backflow

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_authorized byConnor Laing
_BIMspec_GUID0
_created bybimstore
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantNo
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass2015
Classification ValuePr_40_20_87_09
Cold Water Connection Diameter10 mm
Cold Water Radius5 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Created Byinfo-uk@grohe.com
Created OnJuly 13 - August 2015
CW ConnectionYes
CWFU5
Default Elevation600 mm
DescriptionAllure Single-lever, Freestanding Bath & Shower mixer 1/2
Documentation Certificateswww.grohe.com/ie/5602/bathroom/tap-mixer/allure/product-details/?product=32754-G150&color=001&material=32754001
Documentation Installation Guidewww.grohe.com/ie/5602/bathroom/tap-mixer/allure/product-details/?product=32754-G150&color=001&material=32754001
Documentation Literaturecdn08.grohe.com/lib/1/tpi/1666942.pdf
Documentation Maintenancecdn08.grohe.com/lib/1/tpi/1852290.pdf
Documentation Technicalcdn08.grohe.com/lib/1/tpi/1666942.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
FinishChrome
Flow Pressuremin. 0.5 bar - recommended 1 - 5 bar
Flow Rate20L/min (Spout) 12L/min (Shower)
Height880 mm
Hot Water Connection Diameter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU5
Industry StandardsN/A
KeynoteN13
Length185 mm
Low Emitting MaterialYes
ManufacturerGrohe AG
MaterialChrome
Mixing LeverYes
ModelAllure Freestanding - Bath and Shower Mixer - 32754000
Model Number32754000
NameAllure Freestanding - Bath and Shower Mixer - 32754000
NBS DescriptionWater supply fittings for baths
NBS Object NameBath taps
NBS Reference45-35-70/315
Operating Pressure3 bar
Percentage of Recycled Content0
Product Documentation Linkcdn08.grohe.com/lib/1/tpi/1666942.pdf
Product Page URLwww.grohe.com/ie/5602/bathroom/tap-mixer/allure/product-details/?product=32754-G150&color=001&material=32754001
Production Year2015
Spare Parts Listprojects.grohe.com/p/25_79041.html#!i79041_75175,p(p32754G150,m32754000),d(s1)
Temp - Hot Water Supplymax. 80°C
Temp - Hot Water Supply (Recommended)energy economy 60°C
Test Pressure16 bar
Type CommentsAllure Single-lever, Freestanding Bath & Shower mixer 1/2
Type NameAllure Single-lever, Freestanding Bath & Shower mixer 1/2
URLwww.grohe.com
Vent ConnectionNo
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width170 mm
