Grohe Allure E Infra-Red Electronic Basin Tap - 36234000

2.9k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

10/09/2015

Download BIM

Add to collection

Available for:

Allure EInfra-red electronic basin tap 1/2" with mixing device and waste setbattery operatedmonobloc installationGROHE StarLight® chrome finishbattery supply 6 V lithium-battery, type CR-P2CE approvedmultistage battery status displaysafety shutdown circuitmixing device with hot water stop-valve6.0 l/min flow rateintegrated mousseurtype of protection faucet IP 59Ksolenoid valve integrated in housingBalance hot and cold supplies recommendedflexible connection hosesrapid installation systemdirt strainersautomatic flushing after 1 or 3 days without useautomatically safety stop after 60 sec.(factory set)GROHE EcoJoy® technology for less water and perfect flow min. recommended pressure 1.0 bar

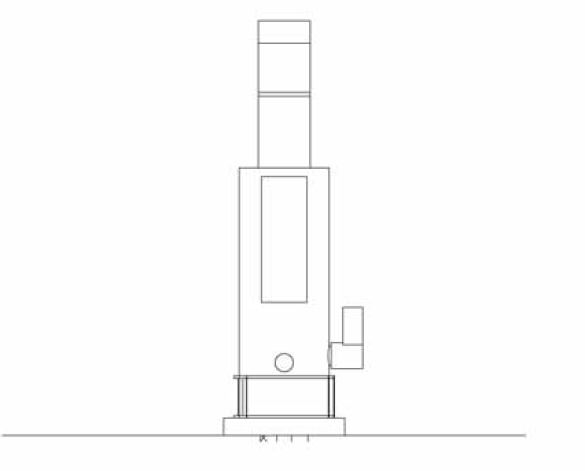

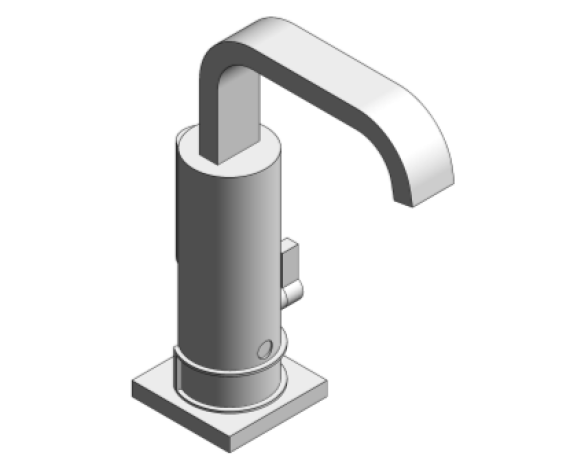

This download is a face based plumbing fixture component created by bimstore.co.uk for Grohe.

This component is created in Revit 2014 for use in MEP systems and is in line with 2015 industry standards.

_authorized byConnor Laing
_BIMspec_GUID0
_created bybimstore
_current revision2
_distributed bywww.bimstore.co.uk
ADA CompliantYes
Assembly CodeC1030220
Asset TypeFixed
Classification NameUniclass2015
Classification ValuePr_40_20_87_98
Cold Water Conection Diamiter10 mm
Cold Water Radius5 mm
ColorChrome
Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
Control HandleYes
Control Handle CenterYes
Created Byinfo-uk@grohe.com
Created OnJuly 13 - Revised June 15
CW ConnectionYes
CWFU4.5
Default Elevation600 mm
DescriptionAllure E Infra-red electronic basin mixer 1/2 battery operated
Documentation Certificateswww.grohe.co.uk/en_gb/allure-e-infra-red-electronic-basin-tap-1-2-with-mixing-device-and-waste-set-36234000.html
Documentation Installation Guidewww.grohe.co.uk/en_gb/allure-e-infra-red-electronic-basin-tap-1-2-with-mixing-device-and-waste-set-36234000.html
Documentation Literaturewww.grohe.co.uk/pim/profile/1000000/000000/10000/0000/600/121504.pdf
Documentation Maintenancewww.grohe.co.uk/pim/profile/1000000/000000/20000/3000/200/121897.pdf
Documentation Technicalwww.grohe.co.uk/pim/profile/1000000/000000/10000/0000/600/121504.pdf
Duration UnitYears
EcojoyNo
Expected Life0
Faucet MaterialGrohe-Chrome
FinishChrome
Flow Rate6L/min
Height482 mm
Hot Water Conection Diamiter10 mm
Hot Water Radius5 mm
HW ConnectionYes
HWFU4.5
Industry StandardsN/A
KeynoteN13
Length184 mm
Low Emitting MaterialYes
Maintenance Informationcdn08.grohe.com/lib/1/tpi/1414814.pdf
ManufacturerGrohe AG
MaterialChrome
Mixing LeaverYes
ModelAllure E - Infra-red electronic basin mixer 1/2 inch - 36234000
Model Number36234000
NameAllure E - Infra-red electronic basin mixer 1/2 inch - 36234000
NBS DescriptionWater supply fittings for wash basins and troughs
NBS Object NameWashbasin taps
NBS Reference45-35-70/371
No of Holes1
Operating Pressure10 bar
Percentage of Recycled Content0
Product Documentation Linkwww.grohe.co.uk/en_gb/allure-e-infra-red-electronic-basin-tap-1-2-with-mixing-device-and-waste-set-36234000.html
Product Page URLwww.grohe.co.uk/en_gb/allure-e-infra-red-electronic-basin-tap-1-2-with-mixing-device-and-waste-set-36234000.html
Production Year2015
Pull out or Pull DownPull Out
Spare Parts Listwww.grohe.co.uk/en_gb/allure-e-infra-red-electronic-basin-tap-1-2-with-mixing-device-and-waste-set-36234000.html
Type CommentsAllure E - Infra-red electronic basin mixer 1/2
Type NameAllure E - Infra-red electronic basin mixer 1/2
URLwww.grohe.com
Valve Spacing34 mm
Vent ConnectionNo
Warranty InfomationN/A
Warranty Duration UnitYears
Waste ConnectionNo
WFU0
Width95 mm
