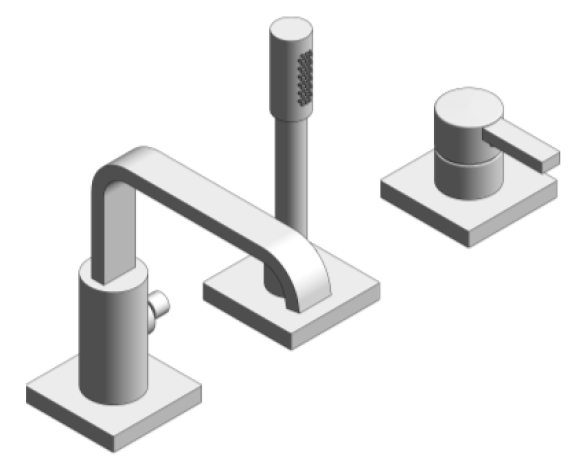

ALLURE 3-hole single-lever bath combination (19316000)

Object metadata

• _authorized byConnor Laing
• _BIMspec_GUID0
• _created bybimstore
• _current revision2
• _distributed bywww.bimstore.co.uk
• ADA CompliantYes
• Assembly CodeC1030220
• Asset TypeFixed
• Classification NameUniclass2015
• Classification ValuePr_40_20_87_98
• Cold Water Conection Diamiter10 mm
• Cold Water Radius5 mm
• ColorChrome
• Contact GroheGROHE Limited, World Business Centre 2, Newall Road, London Heathrow Airport, Hounslow, Middlesex, TW6 2SF - Tel: +44 (0) 871 200 3414 - Fax: +44 (0) 871 200 3415 - EMail: info-uk@grohe.com
• Control HandleYes
• Control Handle CenterYes
• Created Byinfo-uk@grohe.com
• Created OnJuly 13 - Revised August 2015
• CW ConnectionYes
• CWFU4.5
• Default Elevation600 mm
• DescriptionAllure E Infra-red electronic basin mixer 1/2 inch battery operated
• Documentation Certificateswww.grohe.co.uk/en_gb/allure-3-hole-single-lever-bath-combination-19316000.html
• Documentation Installation Guidewww.grohe.co.uk/en_gb/allure-3-hole-single-lever-bath-combination-19316000.html
• Documentation Literaturewww.grohe.co.uk/pim/profile/1000000/000000/20000/3000/200/121897.pdf
• Documentation Technicalwww.grohe.co.uk/pim/profile/1000000/000000/20000/3000/200/121897.pdf
• Duration UnitYears
• EcojoyNo
• Expected Life0
• Faucet MaterialGrohe-Chrome
• FinishChrome
• Flow Rate6L/min
• Height240 mm
• Hot Water Conection Diamiter10 mm
• Hot Water Radius5 mm
• HW ConnectionYes
• HWFU4.5
• Industry StandardsN/A
• KeynoteN13
• Length184 mm
• Low Emitting MaterialYes
• ManufacturerGrohe AG
• MaterialChrome
• Mixing LeaverYes
• ModelAllure 3 Hole Bath Combination - 19316000
• Model Number19316000
• NameAllure 3 Hole Bath Combination - 19316000
• NBS DescriptionWater supply fittings for wash basins and troughs
• NBS Object NameWashbasin taps
• NBS Reference45-35-70/371
• No of Holes1
• Operating Pressure10 bar
• Percentage of Recycled Content0
• Product Documentation Linkwww.grohe.co.uk/pim/profile/1000000/000000/20000/3000/200/121897.pdf
• Product Page URLwww.grohe.co.uk/en_gb/allure-3-hole-single-lever-bath-combination-19316000.html
• Production Year2015
• Pull out or Pull DownPull Out
• Spare Parts Listwww.grohe.com/uk/5602/bathroom/tap-mixer/allure/product-details/?product=36234-G304&color=000&%7E%5Bajax%5D=2194
• Type CommentsAllure 3 Hole Bath Combination
• Type NameAllure 3 Hole Bath Combination
• URLwww.grohe.com
• Valve Spacing34 mm
• Vent ConnectionNo
• Warranty InfomationN/A
• Warranty Duration UnitYears
• Waste ConnectionNo
• WFU0
• Width95 mm
