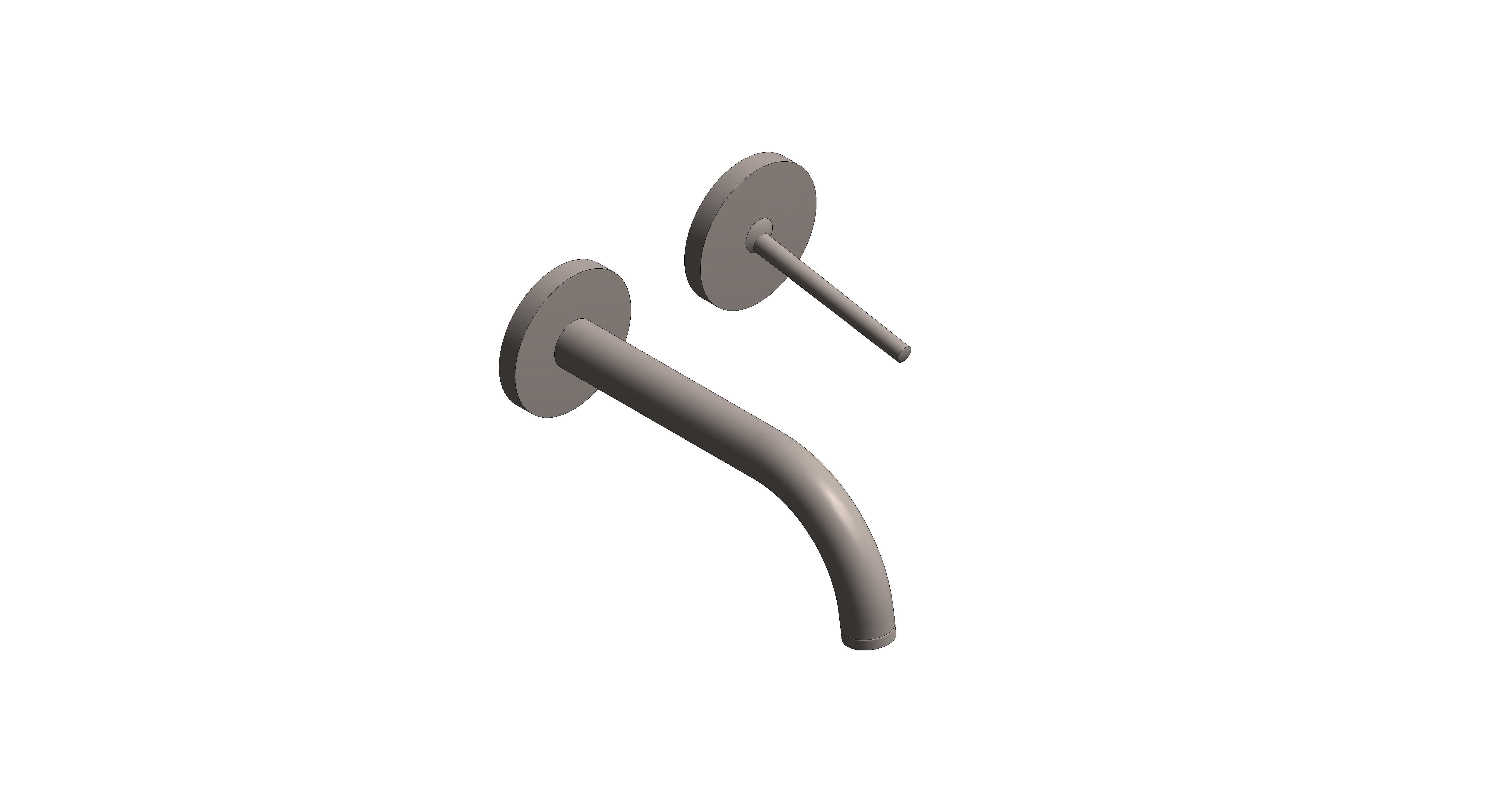

ATRIO Two-hole basin mixer joystick (29410MG0)

Download Add to collection

Description

Product Number - 29410MG0

EAN - 4005176947070

Colour - Satin Graphite

PRODUCT MAIN FEATURES

wall mounted
without concealed body
set for final installation for
23 429 000
GROHE FeatherControl Joystick cartridge
GROHE Long-Life finish
GROHE Water Saving - Less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
centre distance 110 mm
projection 185 mm

Product Page - https://www.grohe.co.uk/en_gb/two-hole-basin-mixer-joystick-29410MG0.html

Object Data

1 Revision

Last Updated

29/09/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorRL 198
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/5b9e5b69-2c1a-4b62-bebc-dd45f6bd428d/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGroheSpa_Atrio_BasinMixer_(29410MG0)
Classification NameUniclass2015
Classification ValuePr_40_20_87_55
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorSatin Graphite
Constituentsn/a
Cradle To Cradle CertificationN/A
Created Byinfo-uk@grohe.com
Created On2025-07-17T09:00:00
Default Elevation1219 mm
DescriptionATRIO Two-Hole Basin Mixer Joystick (29410MG0)
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100000/100010/100014/100014937/1280/100014937.jpg
Documentation Certificateswww.bimstore.co/products/5b9e5b69-2c1a-4b62-bebc-dd45f6bd428d/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/5b9e5b69-2c1a-4b62-bebc-dd45f6bd428d/document/installation-guide
Documentation Literaturewww.bimstore.co/products/5b9e5b69-2c1a-4b62-bebc-dd45f6bd428d/document/product-literature
Documentation Maintenancewww.bimstore.co/products/5b9e5b69-2c1a-4b62-bebc-dd45f6bd428d/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/5b9e5b69-2c1a-4b62-bebc-dd45f6bd428d/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000010Finishing section
EF000278not relevant
EF000958true
EF001469not relevant
EF00170770
EF002149false
EF002286not applicable
EF002671Other
EF0054640
EF005474IP25
EF006974Manually operated
EF011775AA, free air gap
EF011779false
EF0127535.00
EF014578false
EF014591false
EF015280not relevant
EF016712TRUE
EF016713TRUE
EF016714TRUE
EF016731Group I,<= 20 dB(A)
EF017097TRUE
EF020103false
EF020105No
EF020774false
EF020775false
EF020776false
EF020777true
EF020778false
EF020779false
EF020780Single-grip
EF020781Cartouche, ceramic
EF020782Brass
EF020783Chromium-plated
EF020784Other
EF020785not applicable
EF0207861
EF020787Group II, <=30 dB(A)
EF020788true
EF020789185
EF020790true
EF020963true
EF021498TRUE
EF021855false
EF022042None
EF022133false
EF022484true
EF023686not applicable
EF023687false
EF023957false
EF024921true
EF025098true
EF025102not relevant
EFDE0022Group I, <=20 dB(A)
EFSE0002false
Expected Life0
Featuresn/a
FinishSatin Graphite
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
Ifc Export AsIfcValveType
Ifc Export TypeFAUCET
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
ModelATRIO Two-Hole Basin Mixer Joystick (29410MG0)
Model Number29410MG0
Model ReferenceATRIO Two-Hole Basin Mixer Joystick (29410MG0)
NBS DescriptionMixer taps
NBS Noten/a
NBS Object NameGrohe - Mixer taps
NBS Office Master Tagn/a
NBS Reference45-35-70/345
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/2/294/original/29410MG0-pqchart-en_GB.svg
Primary MaterialGrohe_SatinGraphite
Product Descriptionwall mounted without concealed body set for final installation for 23 429 000 GROHE FeatherControl Joystick cartridge GROHE Long-Life finish GROHE Water Saving - Less water, perfect flow maximum flow rate (at 3 bar): 5 l/min center distance 110 mm projection 185 mm
Production Year2025
Product Number29410MG0
Product Page URLwww.grohe.co.uk/en_gb/-29410MG0.html
Product Short TextTwo-hole basin mixer joystick
Product TypeSingle Lever Mixer
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2100/2190/2196/2196068/original/2196068.pdf
Type CommentsATRIO Two-Hole Basin Mixer Joystick (29410MG0)
Type NameATRIO Two-Hole Basin Mixer Joystick (29410MG0)
URLwww.grohe.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
