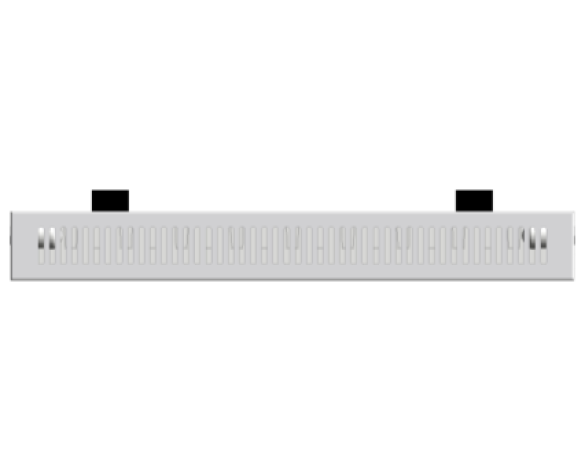

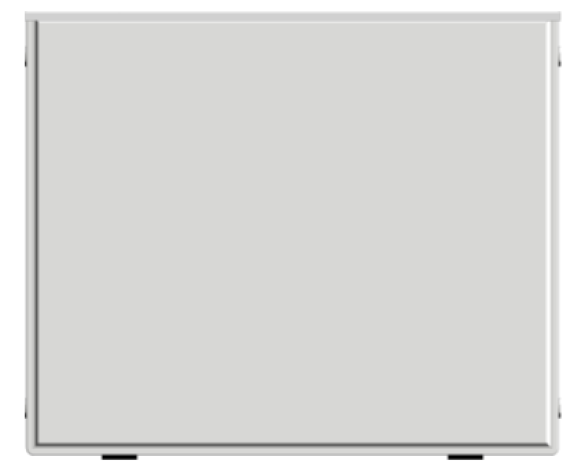

Galant Plan Horizontal

  • Image of Galant Plan Horizontal
  • Image of Galant Plan Horizontal
  • Image of Galant Plan Horizontal
  • Image of Galant Plan Horizontal
SketchfabSketchfab
  • Views 5.1k
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

14/12/2018

Available for:
  • Logo: Autodesk Revit

The Galant Plan horizontal radiator is manufactured from 1.2mm steel with a 0.5mm aluminium front plate and is available in RAL 9016 Traffic White as standard, with other colours available on request.

Supplied complete with wall brackets, plugs and air vent, welded side panels and top grille as standard, the Galant horizontal radiator has a 6 bar maximum working pressure (8 bar test), with 10 bar maximum working pressure available upon request. The Galant Plan horizontal is supplied with 6 x 1/2” bsp-f connections, offering multiple connection options. All horizontal models are supplied with welded side panels, which, combined with optional top grille security clips, make it the perfect radiator for high-traffic environments such as schools and hospitals. The MHS Galant Plan carries a 10-year guarantee against manufacturing defects.
