Ductile Iron PN16 Fully Lugged Butterfly Valve, PTFE Seat [00/0448]

by Valves Instruments Plus

Download Add to collection

Description

Ductile Iron Fully Lugged Butterfly Valve, PN16, 316 Stainless Steel Disc, PTFE Lined EPDM Seat, Malleable Iron Lever.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

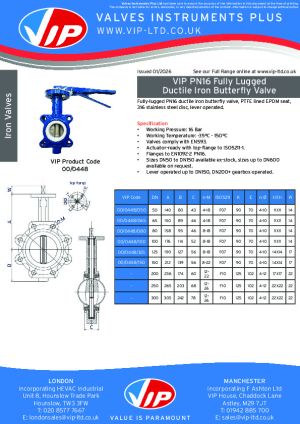

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAdam Grant
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created ByAdam Grant
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/1646dbe3-aa1a-4b18-a1f6-9516add07ffd/document/object-user-guide
A140 mm
Accessibility Performancen/a
Assembly CodeD50
Asset TypeFixed
B80 mm
BIM Object NameVIP_ButterflyValve_FullyLugged_PTFE_Seats_PN16(00/0448)
BodyVIP - Ductile Iron
C43 mm
C230 mm
C314 mm
C45 mm
Classification NameUniclass 2025
Classification ValuePr_65_54_95_08
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-05-09 T:09:00:00
D50 mm
D1125 mm
D290 mm
D370 mm
Default Elevation0 mm
DescriptionPN16 Fully Lugged Ductile Iron Butterfly Valve PTFE Seats
DiscAISI 316
Documentation Certificateswww.bimstore.co/products/1646dbe3-aa1a-4b18-a1f6-9516add07ffd/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/1646dbe3-aa1a-4b18-a1f6-9516add07ffd/document/installation-guide
Documentation Literaturewww.bimstore.co/products/1646dbe3-aa1a-4b18-a1f6-9516add07ffd/document/product-literature
Documentation Maintenancewww.bimstore.co/products/1646dbe3-aa1a-4b18-a1f6-9516add07ffd/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/1646dbe3-aa1a-4b18-a1f6-9516add07ffd/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Flange Hole CoverVIP - Flange Holes
Flanges StandardEN1092-2 PN16
Graden/a
KeynoteS
LinerVIP - PTFE EPDM
Lug Angle45.00 °
Lug Centre Offset63 mm
Lug Height44 mm
Lug Hole Radius8 mm
Lug Outer Hole Radius14 mm
Lug Thickness27 mm
ManufacturerVIP
Manufacturer NameVIP
Materialn/a
ModelFully Lugged Butterfly Valve
Model Number00/0448/050
Model ReferenceButterfly Valves
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameVIP - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
No. Lug4
Nominal Diameter50 mm
Notch PlateVIP - Stainless Steel
OC90 mm
Operating Pressure16 bar
Operating Temperature-35°C to 150°C
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Rubber70 mm
Shapen/a
SizeDN50
Spare Partsn/a
Stem Width32 mm
Top Flange Thickness11 mm
Type Comments00/0448/050
Type NameDN50
URLwww.vip-ltd.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@vip-ltd.co.uk
