Nickel Plated Brass Ball Valve, MxF, 'T' Handle [00/0035]

by Valves Instruments Plus

Download Add to collection

Description

Nickel Plated Brass Ball Valve, BSP Male x Female Connections, 'T' Handle.

Object Data

1 Revision

Last Updated

20/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

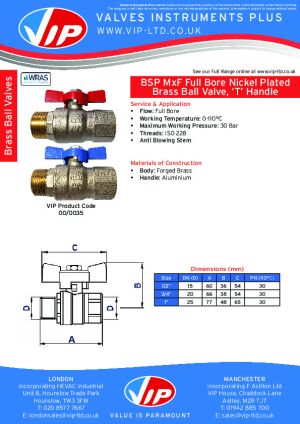

Object User Guide

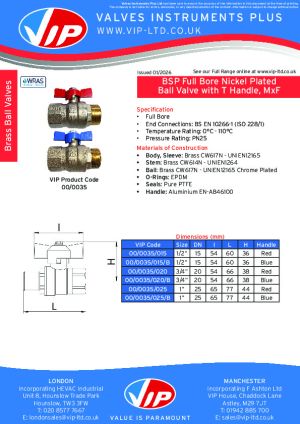

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAA
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created ByAA
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/a02b02ec-0e7f-4815-96ec-031ff3980486/document/object-user-guide
Accessibility Performancen/a
Assembly CodeDN15
Asset TypeFixed
BIM Object NameVIP_BRASS_BALL_VALVE(00/0035)
Center Height25 mm
Center MaterialVIP - Brass
Center Width9 mm
Circle27 mm
Classification NameUniclass 2024
Classification ValuePR_65_54_95_06
Code Performancen/a
ColorSilver & Red & Yellow
Connector Width15 mm
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-03-25T09:00:00
Default Elevation0 mm
Description'T' Handle Operated Ball Valve (Red)
DN15 mm
Documentation Certificateswww.bimstore.co/products/a02b02ec-0e7f-4815-96ec-031ff3980486/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/a02b02ec-0e7f-4815-96ec-031ff3980486/document/installation-guide
Documentation Literaturewww.bimstore.co/products/a02b02ec-0e7f-4815-96ec-031ff3980486/document/product-literature
Documentation Maintenancewww.bimstore.co/products/a02b02ec-0e7f-4815-96ec-031ff3980486/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/a02b02ec-0e7f-4815-96ec-031ff3980486/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H36 mm
Handle Offset16 mm
I54 mm
KeynoteS
L60 mm
ManufacturerVIP
Manufacturer NameVIP
Max Working Pressure25 Bar
Model'T' Handle Operated Ball Valve
Model Number00/0035/015/R
Model ReferenceBall Valves
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
Nut MaterialVIP - Nickel Plated Brass
Opening15 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
T Handle MaterialVIP - T Handle Material Red
ThreadsISO 228
Thread Width17 mm
Type Comments00/0035/015
Type NameDN15
URLwww.vip-ltd.co.uk/Valves/VIP_Brass_Ball_Valves/00_0035/
Valve Body MaterialVIP - Nickel Plated Brass
Valve Body Thickness29 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
Working Temperature0°C to 110°C
WRAS ApprovedYes

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
