Framing Anchor MFAC

by Expamet

Download Add to collection

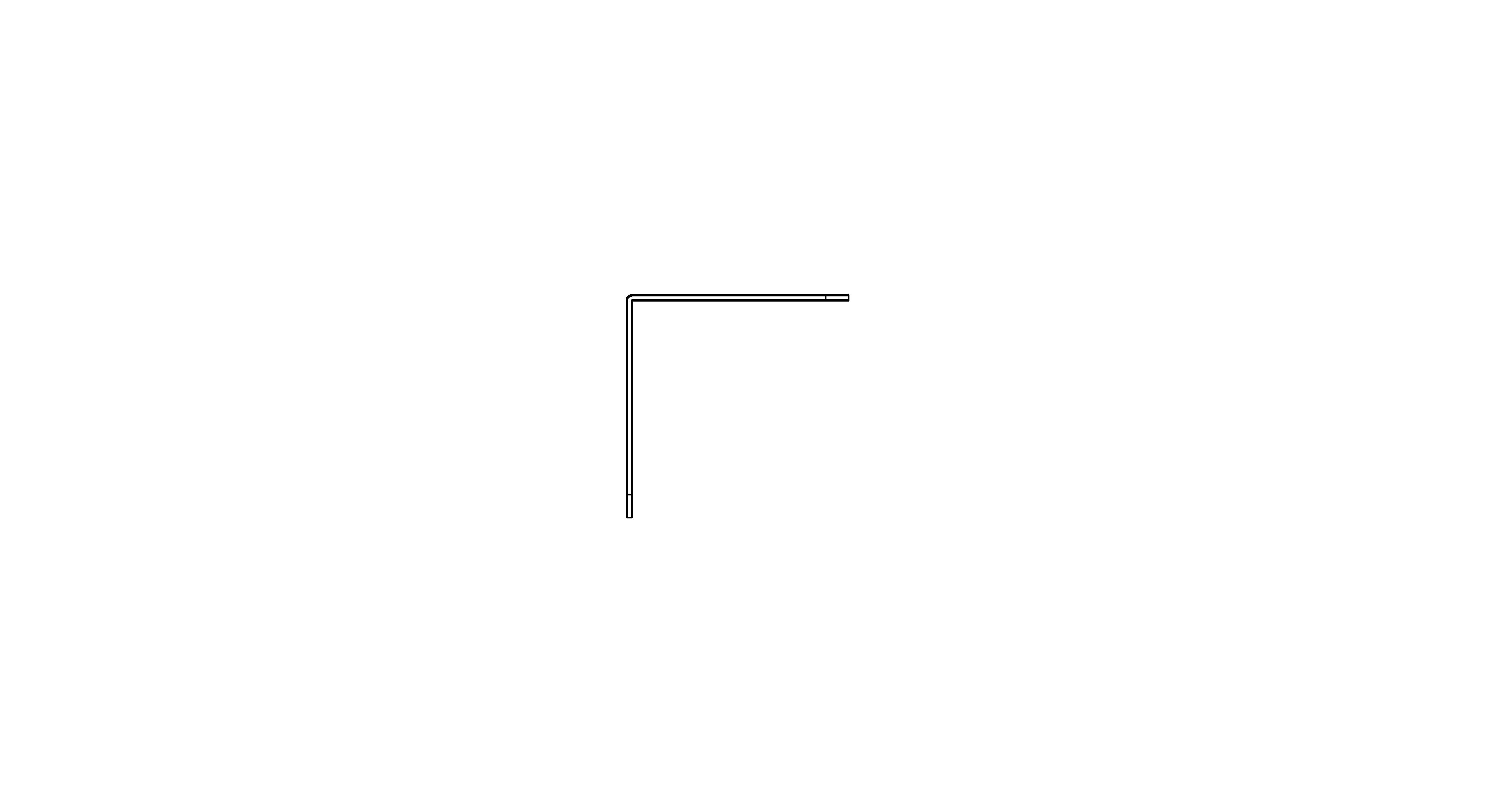

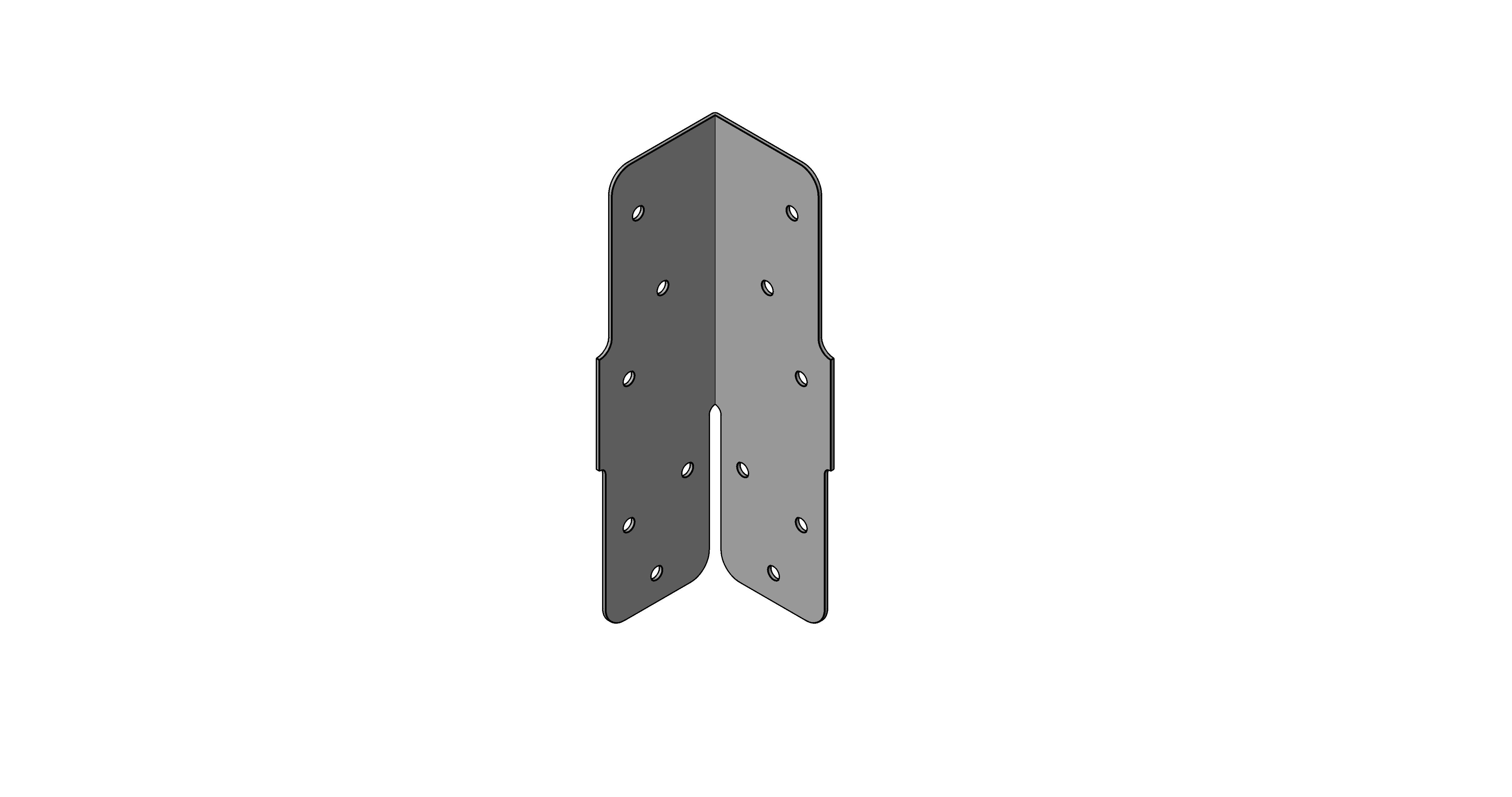

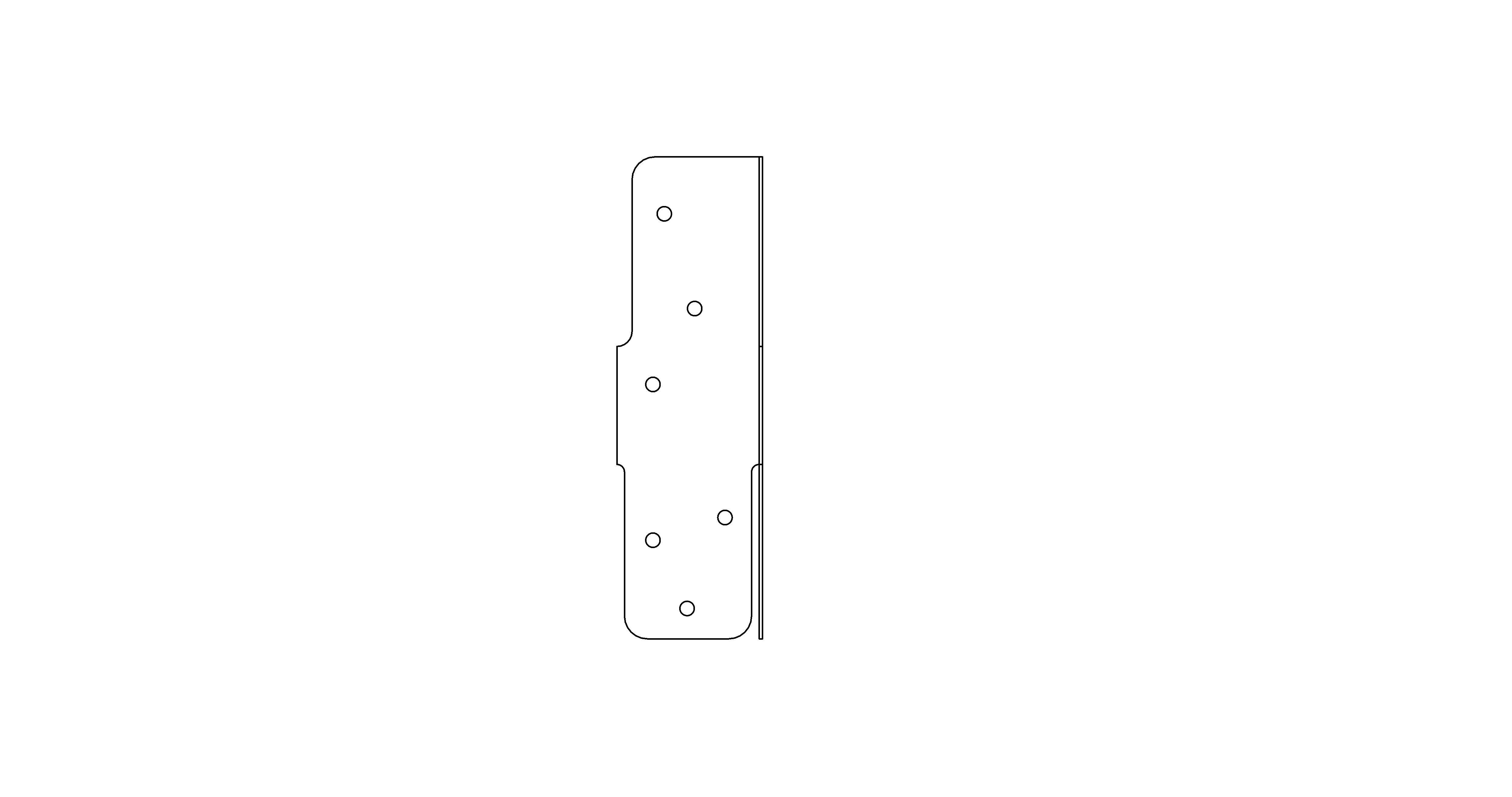

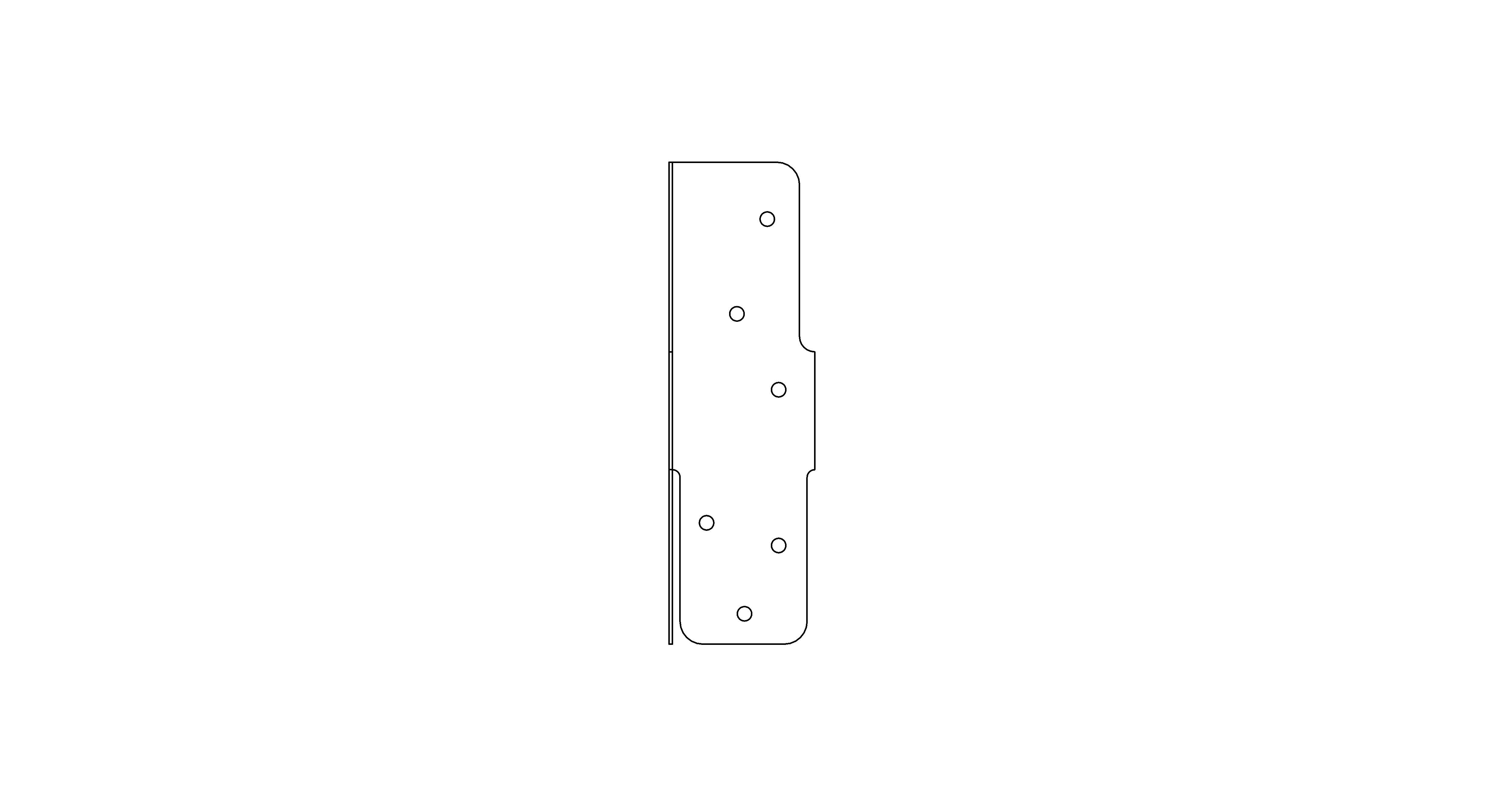

Description

BAT Multi-Grip Framing Anchors offer the most effective and economical method of providing strong a mechanical joints for framing of timbers. All timber facing nail holes must be filled. Always use in pairs to avoid eccentric loading.

Object Data

1 Revision

Last Updated

18/11/2019

Available Software

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/framing-anchor-mfac/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB10
Asset TypeFixed
BIM Object NameExpamet_FramingAnchors_MultiGrip
Classification NameUniclass2015
Classification ValuePr_20_29_03_31
Code PerformanceETAG015/TR016, ETAG015 (ETA13/0802), BS EN 10346:2015, DX51D + Z275
ColorSteel
Constituentsn/a
Created Byinfo@birtleygroup.co.uk
Created On2019-06-18 T09:00:00
Declared Shear Capacity6.4kN (ULS) Shear per pair
DescriptionBAT Multi-Grip Framing Anchors offer the most effective and economical method of providing strong a mechanical joints for framing of timbers. All timber facing nail holes must be filled. Always use in pairs to avoid eccentric loading.
Documentation Certificateswww.birtleygroup.co.uk
Documentation Installation Guidewww.birtleygroup.co.uk
Documentation Literaturewww.birtleygroup.co.uk
Documentation Maintenancewww.birtleygroup.co.uk
Documentation Technicalwww.birtleygroup.co.uk
Duration UnitYears
Expected Life0
Featuresn/a
Finish275g/m² Zinc Coating
Framing Anchor MaterialExpamet_GalvanizedSteel
Graden/a
Ifc Export AsIfcMember
Ifc Export TypeIfcMemberTypeEnum.PLATE
KeynoteG20
ManufacturerExpamet
Manufacturer NameExpamet
MaterialGalvanized mild steel
ModelMFAC
Model NumberProvide strong mechanical joints for framing of timbers.
Model ReferenceMFAC
NBS DescriptionFraming Anchors
NBS Object NameExpamet FramingAnchors
NBS Office Master Tagn/a
NBS Reference45-50-50/405
Nominal Length37.50 mm
Number Of Nail Holes12
Overall Height127.00 mm
Overall Length37.50 mm
Overall Width37.50 mm
Production Year2019
Referenced StandardETAG015/TR016, ETAG015 (ETA13/0802), BS EN 10346:2015, DX51D + Z275
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Thickness0.90 mm
Type CommentsProvide strong mechanical joints for framing of timbers.
Type NameMFAC
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@birtleygroup.co.uk
Warranty Guarantor Partsinfo@birtleygroup.co.uk
