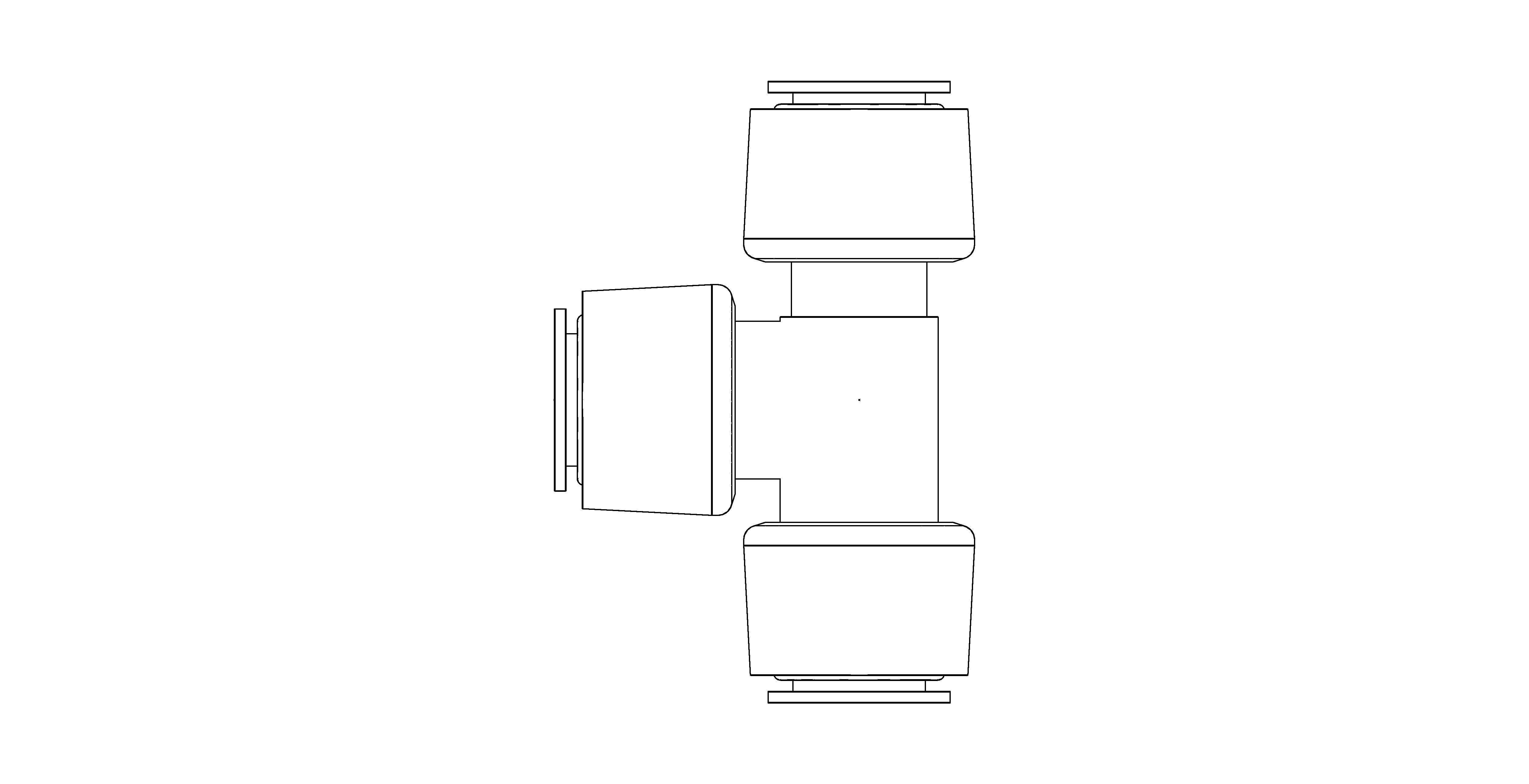

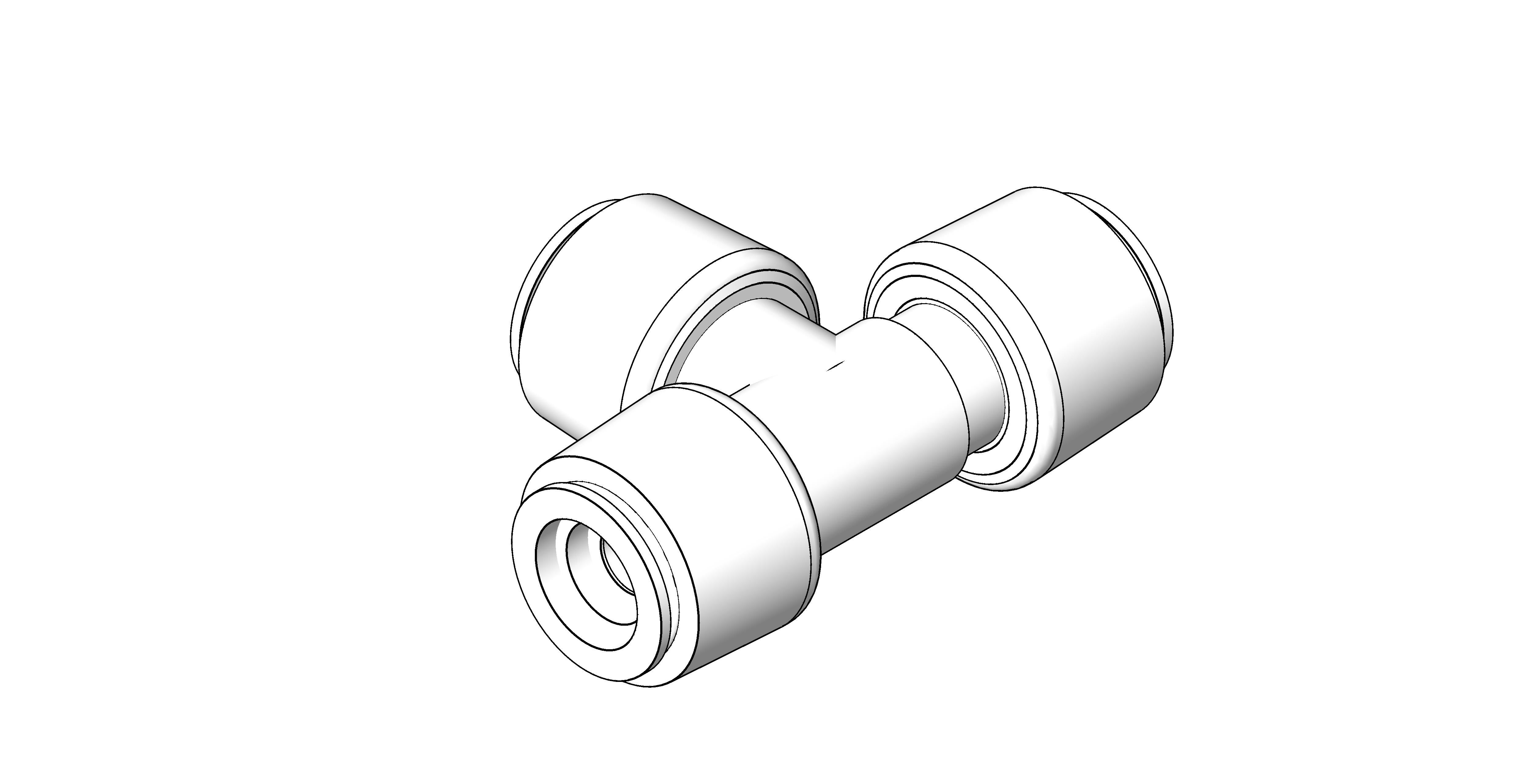

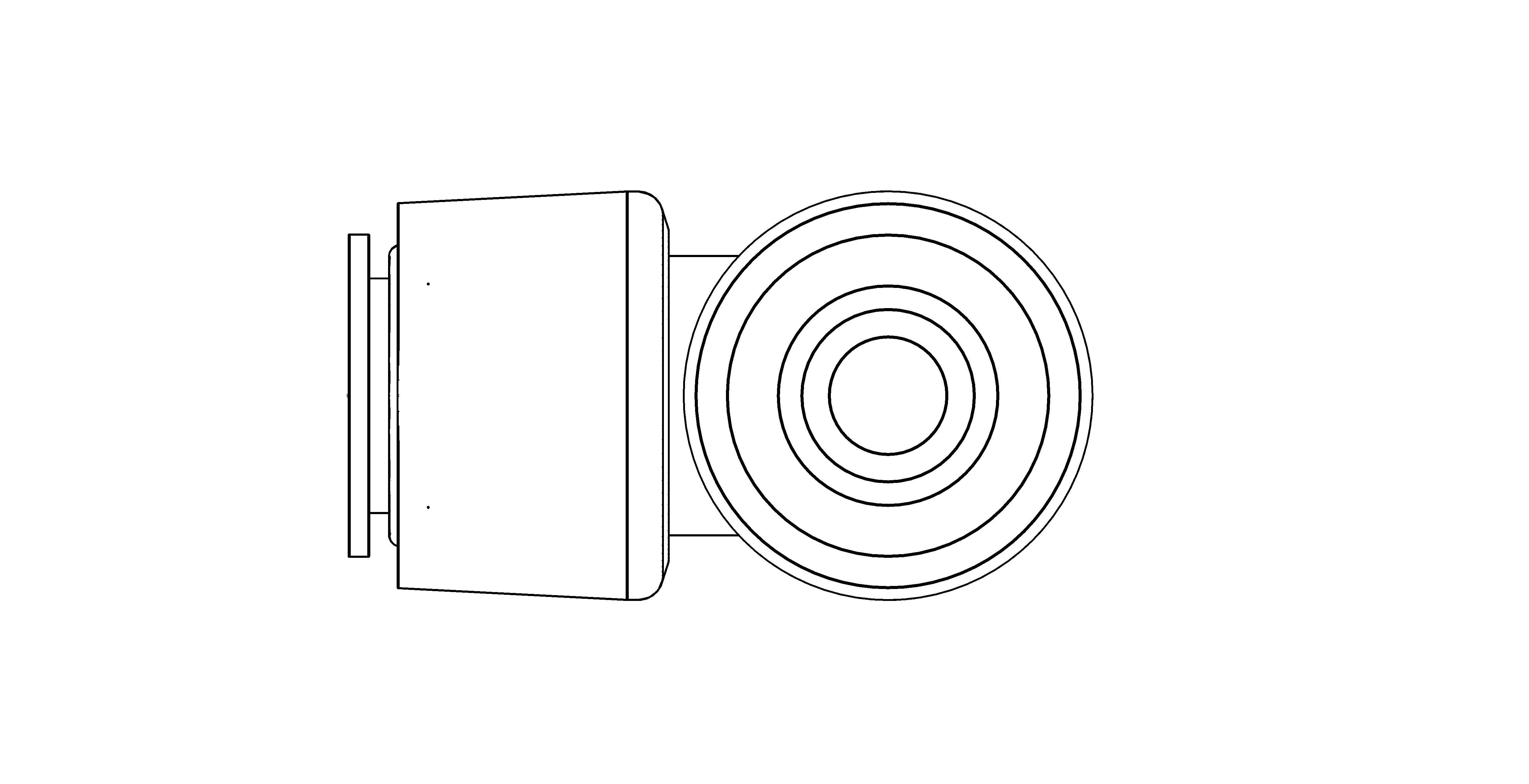

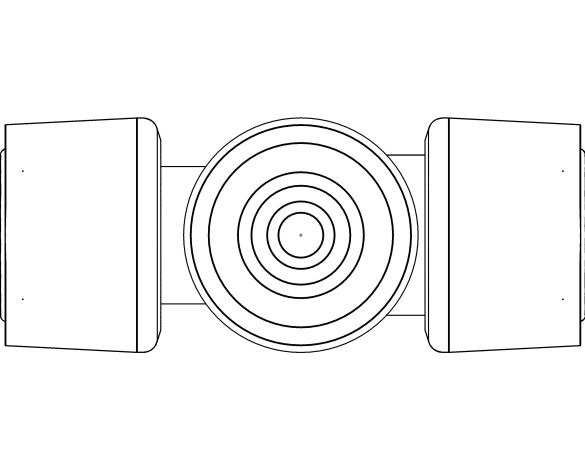

FloFit+ - Reducing Tee

Object metadata

• _AuthorMM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.wienerberger.co.uk
• _Current Revision1
• _Distributed Bywww.bimstore.co.uk
• _Object User Guiden/a
• 1 Cap 15mm_28.7mmYes
• 1 Cap 15mm_29.4mmNo
• 1 Cap 22mmNo
• 1 Cap 28mmNo
• 2 Cap 10mmYes
• 2 Cap 15mm_29.4mmNo
• 2 Cap 22mmmNo
• 2 Cap 28mmNo
• 3 Cap 10mmYes
• 3 Cap 15mm_28.7mmNo
• 3 Cap 15mm_29.4mmNo
• 3 Cap 22mmNo
• 3 Cap 28mmNo
• Accessibility Performancen/a
• Angle90.00 °
• Assembly CodeD2090800
• Asset TypeFixed
• BIM Object NameFloPlast_PipeFittings_FloFit+Fittings_ReducingTee
• BSI AccreditationFloFit+ fittings are Kitemarked to BS 7291 Parts 1,2 & 3 (KM602628)
• Classification NameUniclass2015
• Classification ValuePr_65_52_63_60
• Code Performancen/a
• ColorWhite
• Constituents1 x 15mm x 10mm x 10mm Reducing Tee Body, 1 x 15mm EPDM "O" Rings, 2 x 10mm EPDM "O" Ring, 1 x 15mm Reating Ring, 2 x 15mm Retaining Rings, 1 x 15mm Nut, 2 x 10mm Nuts, 1 x 15mm Collet, 2 x 10mm Collets, 1 x 15mm Collet Clip & 2 x 10mm Collet Clips
• Created Bywbukdesignservices@wienerberger.co.uk
• Created On2022-07-22T09:00:00
• D119.30 mm
• D216.25 mm
• D312.15 mm
• Description15mmx10mmx10mm Reducing Tee
• Diameter 1010.00 mm
• Diameter 1515.00 mm
• Diameter 2222.00 mm
• Diameter 2828.00 mm
• Documentation Certificateswww.floplast.co.uk/hot-and-cold-plumbing/flofit-fittings
• Documentation Installation Guidewww.floplast.co.uk/hot-and-cold-plumbing/flofit-fittings
• Documentation Literaturewww.floplast.co.uk/hot-and-cold-plumbing/flofit-fittings
• Documentation Maintenancewww.floplast.co.uk/hot-and-cold-plumbing/flofit-fittings
• Documentation Technicalwww.floplast.co.uk/hot-and-cold-plumbing/flofit-fittings
• Duration UnitYears
• Expected Life0
• FeaturesFloFit+ is a flexible and fully demountable push-fit plumbing system suitable for all domestic and small commercial hot & cold water installations, including central heating systems for both pressurised (unvented) and combi (vented) systems. FloFit+ enables the installer to undertake a faster, easier and more cost effective installation. Independent testing confirms time savings of up to 40% compared with traditional plumbing materials. 50 Year Guarantee - An unrivalled 50-year product guarantee is offered on all FloFit+ fittings and pipe. BSI Accreditation - FloFit+ fittings are Kitemarked to BS 7291 Parts 1, 2 & 3, including ‘Class S’ (KM602628). WRAS Approved - Fully WRAS certified under approval number 2101806. Made In The UK - All FloFit+ fittings are manufactured at FloPlast’s Kent, UK production facility. Lightweight Design - Easy to handle and work with whilst remaining incredibly strong and durable. Superior White Finish - FloFit+ fittings and pipe are produced with a maintenance free white finish.
• Finishn/a
• Graden/a
• Ifc Export AsIfcPipeFitting
• Ifc Export TypeIfcPipeFittingTypeEnum.JUNCTION
• KeynoteS
• ManufacturerFloPlast
• Manufacturer NameFloPlast
• MaterialEach fitting comprises of a Polybutylene body, Nylon cap an Acetal collet (grip ring) containing 301 grade stainless steel grip teeth, a Ethylene Propylene Die Monomer (EPDM) O-ring, Acetal retaining ring and an Acetal collet clip
• ModelTee
• Model Numbern/a
• Model Referencen/a
• NBS DescriptionPolybutylene (PB) pipes and fittings
• NBS Noten/a
• NBS Object NameFloPlast - Polybutylene (PB) pipes and fittings
• NBS Office Master Tagn/a
• NBS Reference90-10-65/355
• Nominal Depth32.00 mm
• Nominal Diameter 115.00 mm
• Nominal Diameter 210.00 mm
• Nominal Diameter 310.00 mm
• Nominal Height52.00 mm
• Nominal Length81.00 mm
• Pipe Insertion Depth 130.00 mm
• Pipe Insertion Depth 223.00 mm
• Pipe Insertion Depth 323.00 mm
• Pipe Radius 105.00 mm
• Pipe Radius 157.50 mm
• Pipe Radius 2211.00 mm
• Pipe Radius 2814.00 mm
• Production Year2022
• Radius 111.25 mm
• Radius 29.15 mm
• Radius 39.15 mm
• Referenced Standardn/a
• Replacement Costn/a
• Shape90° Reducing Tee
• Spare Partsn/a
• Type CommentsFRT151010
• Type NameFRT151010
• URLwww.floplast.co.uk/
• W128.70 mm
• W224.90 mm
• W38.10 mm
• W419.30 mm
• W513.45 mm
• W60.60 mm
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts50
• Warranty Duration UnitYears
• Warranty Guarantor Labortechnical@floplast.co.uk
• Warranty Guarantor Partstechnical@floplast.co.uk
• WRAS ApprovedWRAS Certified under approval number 2101806
