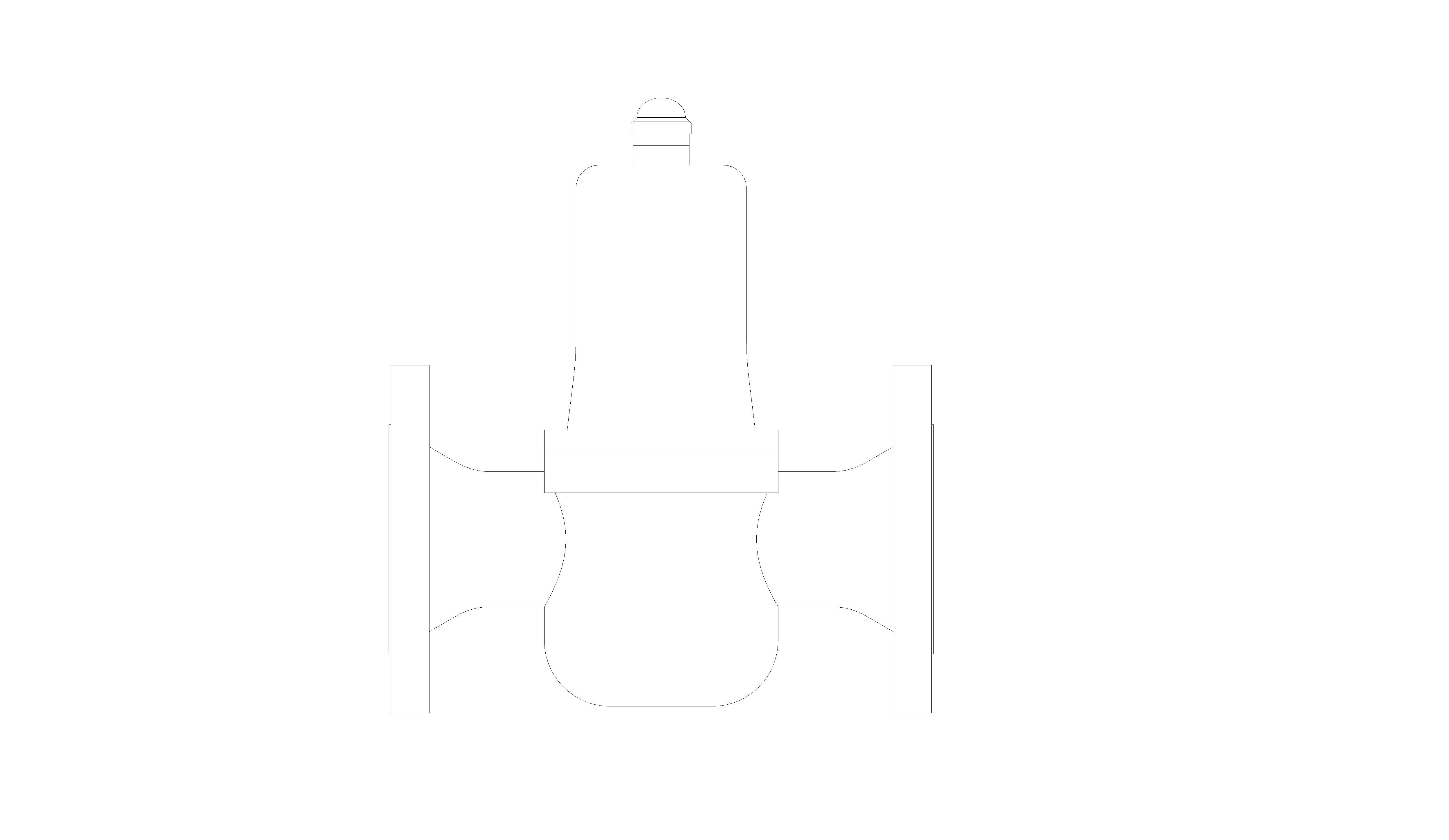

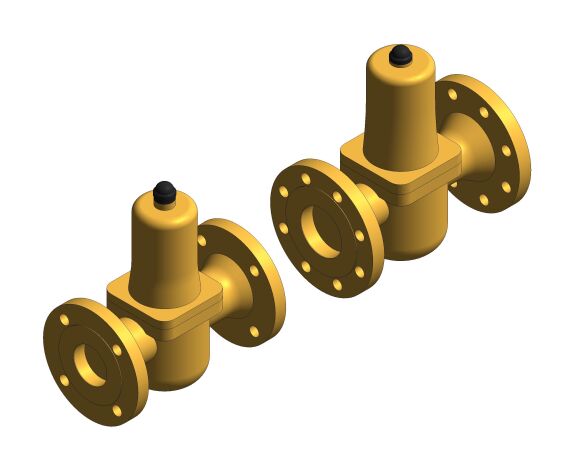

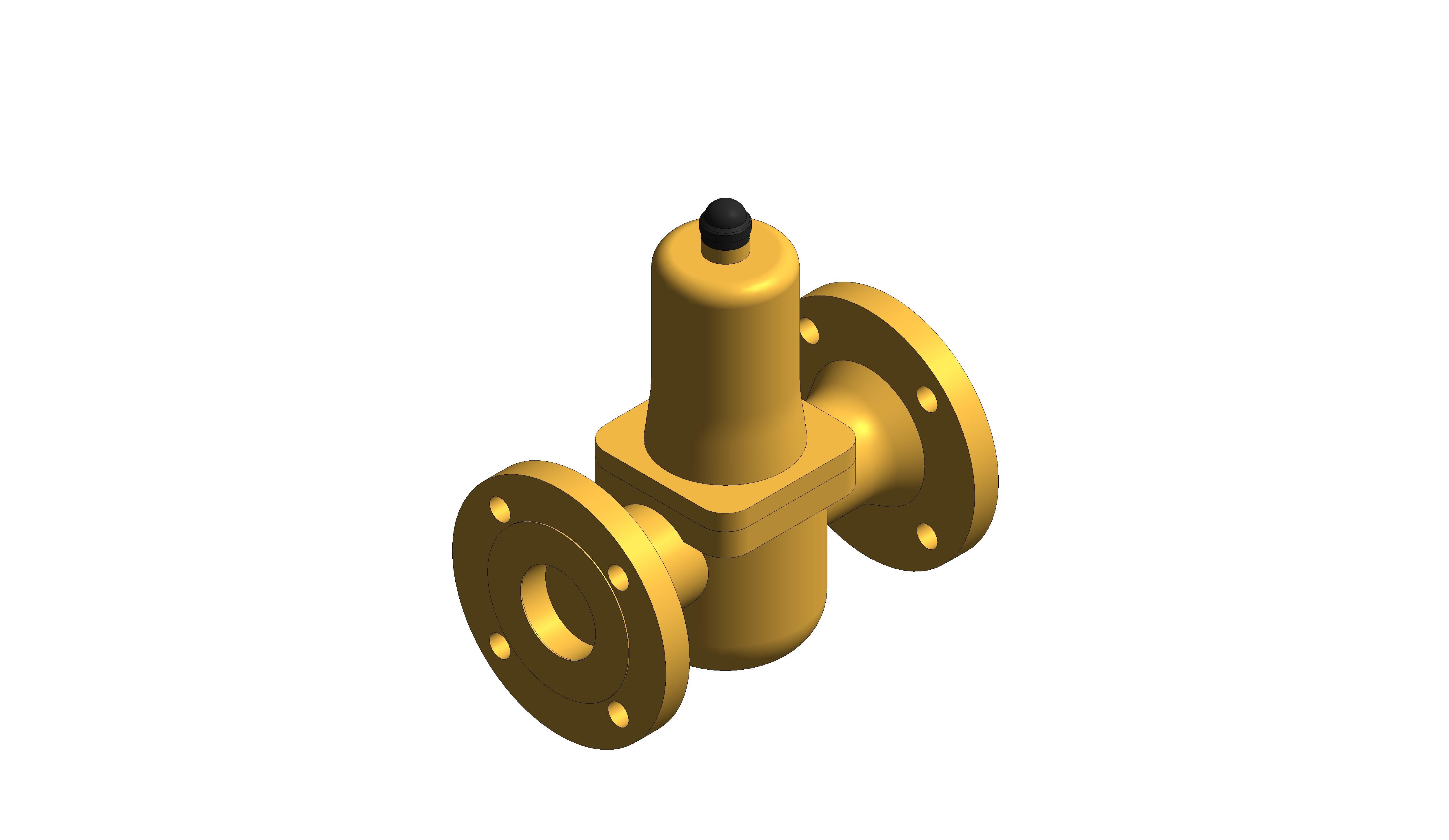

Fig. M516 & M525 - Pressure Reducing Valve - Bronze

Download Add to collection

Description

PN16 & PN25 Pressure Reducing Valves - Bronze

PRVs enable control of pressure from boosted cold water supplies to match site requirements
Simple to install
Features an integral strainer preventing debris from affecting valve performance
WRAS approved
Adjustable outlet pressure from 1-8 bar
Conforms to BS EN 1567 (Fig.M516)

Object Data

1 Revision

Last Updated

30/10/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

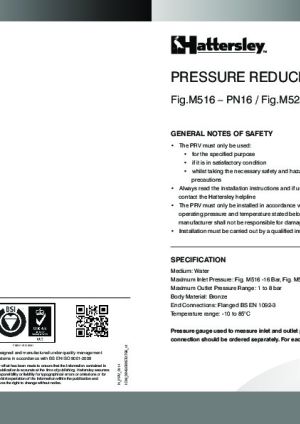

Installation Guide

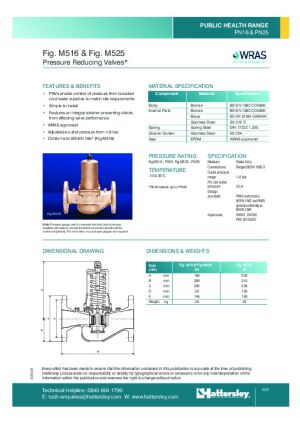

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/fig-m516-m525-pressure-reducing-valve-bronze/document/object-user-guide
a21.6 mm
Accessibility Performancen/a
Assembly CodeD30
Asset TypeFixed
BIM Object NameHattersley_GlobeValve_Fig17
Classification NameUniclass2015
Classification ValuePr_65_54_95_16
Code Performancen/a
Colorn/a
Connection Radius32.5 mm
Connection Size65.0 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2023-09-11 T09:00:00
D185.0 mm
Default Elevation0.0 mm
DescriptionPN16 Bronze Globe Valve
DN65Yes
DN80No
Documentation Certificateswww.bimstore.co/products/fig-m516-m525-pressure-reducing-valve-bronze/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fig-m516-m525-pressure-reducing-valve-bronze/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fig-m516-m525-pressure-reducing-valve-bronze/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fig-m516-m525-pressure-reducing-valve-bronze/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fig-m516-m525-pressure-reducing-valve-bronze/document/technical-data-sheet
Duration UnitYear
End ConnectionFlanged BS EN 1092-3
Expected Life0
Features- PRVs enable control of pressure from boosted cold water supplies to match site requirements - Simple to install - Features an integral strainer preventing debris from affecting valve performance - WRAS approved - Adjustable outlet pressure from 1-8 bar - Conforms to BS EN 1567 (Fig.M516)
Finishn/a
Graden/a
H235.0 mm
h89.0 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.REGULATING
Inlet BodyBronze CC499K
Internal Parts 1Bronze CC499K
Internal Parts 2Brass CW614N
Internal Parts 3Stainless Steel SS316 Ti
K145.0 mm
K Coefficient0
KeynoteS
L290.0 mm
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
MaterialBronze
ModelM516
Model NumberM516
Model ReferenceM516
NBS DescriptionCopper alloy globe valves
NBS Noten/a
NBS Object NameHattersley - Copper alloy globe valves
NBS Office Master Tagn/a
NBS Reference90-10-90/344
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
Outlet BodyBronze CC499K
Pressure RatingPN16
Production Year2023
Referenced Standardn/a
Replacement Costn/a
SealEPDM WRAS Approved
Shapen/a
Sizen/a
Spare Partsn/a
SpringSpring Steel DIN 17223 1.1200
StrainerStainless Steel SS304
Temperature Rating-10 to 85°C
Type CommentsDN65
Type NameDN65
URLwww.hattersley.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@hattersley.com
Weight20.00 kg
