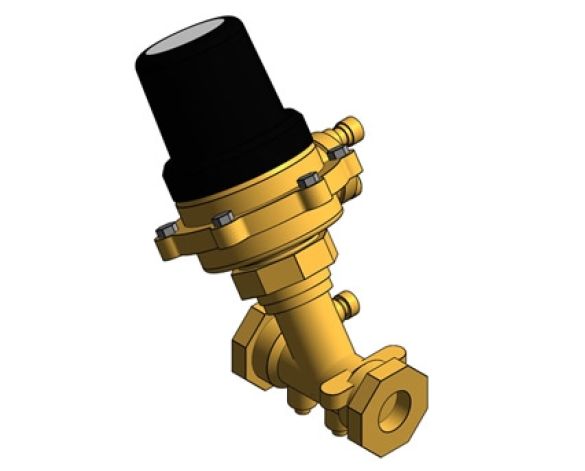

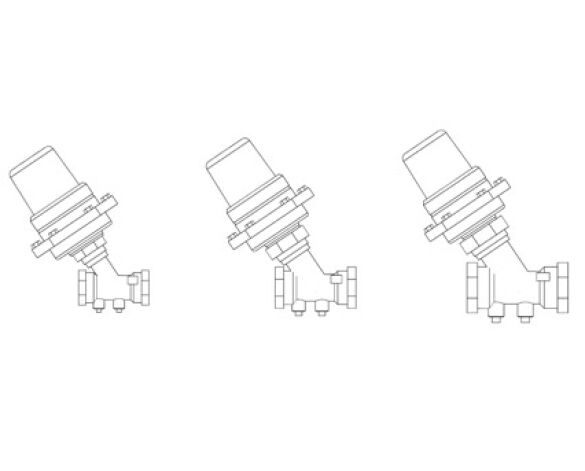

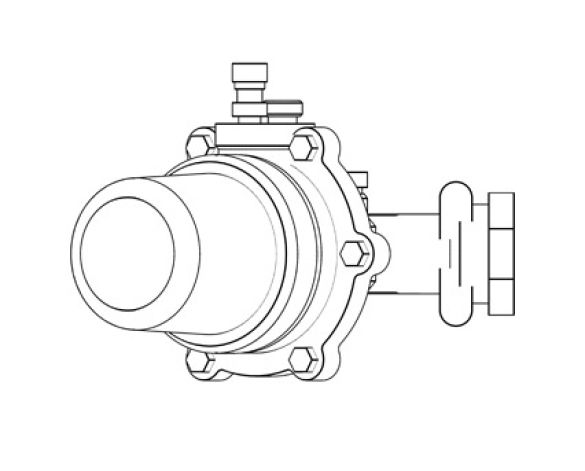

Fig F400 Flow - Female Ended

Download Add to collection

Description

Features & Benefits:

A high performing differential pressure control valve fitted in the supply or return pipework (dependant on version), regulating both differential pressure and flow rate
Differential pressure activation range (DP Range) from 20 to 100 kPa
Integrated valve position indicator for visual inspection
Tested in accordance with the BSRIA guidance standard

Object Data

1 Revision

Last Updated

17/04/2014

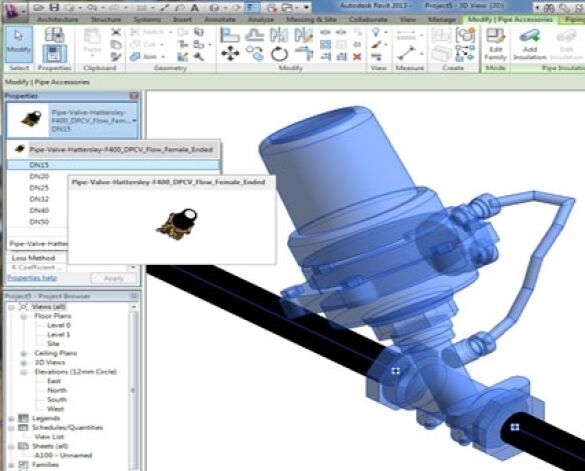

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

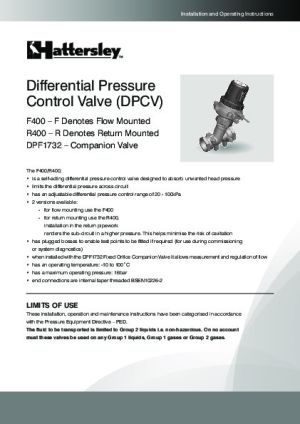

Installation Guide

Product Data Sheet

Object metadata

_authorConnor Laing
_BIMspec_GUID0
_current revision1
_distributed bywww.bimstore.co.uk
A mm87 mm
AdjusterNylon Grade PA6
Assembly CodeD30
B mm175 mm
Barcode0
BodyBronze BS EN 1982 (CC491K)
BonnetBronze BS EN 1982 (CC491K)
BSYes
Cap Offset82.6 mm
ChamberBronze BS EN 1982 (CC491K)
Cog Offset11.7 mm
Connection Hex Thickness10 mm
Connection Piece Dia11.1 mm
Connection Piece Length56.5 mm
Connection Piece Offset11.7 mm
Connection Size15 mm
Connection Size Calc7.5 mm
DescriptionFig. F400 Return
DiaphragmRubber EPDM
DN15 BodyYes
DN20 BodyNo
DN25 BodyNo
DN32 BodyNo
DN40 BodyNo
DN50 BodyNo
DocumentationLink URLwww.hattersley.com/documents/Fig_F400_R400_DPCV_Hattersley_0813_v3.pdf
End Hex Dia43 mm
End Round Thickness9 mm
Expected Life0
Hex Dia Calc43 mm
Hex Thickness10 mm
K Coefficient2.32
KeynoteS
Loss Method2
Lugg Downstand7.2 mm
Lugg Length22 mm
Lugg Offset5 mm
Lugg Width12 mm
ManufacturerHattersley
ModelF400
Model NumberF400
O-Ring SealsRubber EPDM
Pressure (BAR)www.hattersley.com/documents/Fig_F400_R400_DPCV_Hattersley_0813_v3.pdf
Pressure Rating (Cat)PN16
Product DescriptionDPCV- Return Female Ended
Product Documentation Linkwww.hattersley.com/documents/Fig_F400_R400_DPCV_Hattersley_0813_v3.pdf
Product Page URLwww.hattersley.com/productView.asp?prodID=198&catID=35
Stem / PistonStainless Steel BS EN 10088 - 1:2005
Temperature deg C-10 to 170
Type CommentsDN 50
Type NameDN 50
UK End ConnectionRp 1/2" Parallel
Uniclass 2WR-90-94-95
URLwww.hattersley.com
Valve MaterialBrass, Soft Yellow
Warranty Duration12 months
Warranty Duration Unit12 months
Weight (kg)2.32
