Fig C31 - Gate Valve - Bronze

Download Add to collection

Description

Features & Benefits:

Robust and high quality bronze body with integral seating surfaces.
Inside screw pattern with non-rising stem.
Suitable for high pressures up to 16 bar.

Object Data

1 Revision

Last Updated

15/03/2014

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

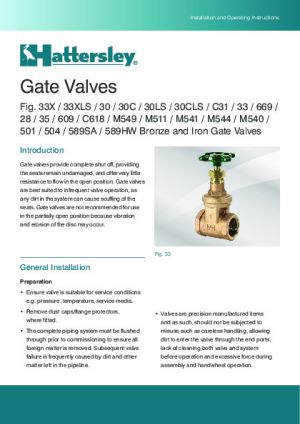

Installation Guide

Product Data Sheet

Object metadata

_authorMark Thompson
_BIMspec_GUID0
_Bonnet Lower Depth15 mm
_Bonnet Lower Radius28 mm
_current revision1
_distributed bywww.bimstore.co.uk
_End Nut Diameter58 mm
_End Nut Thickness14.2 mm
_Packing Nut Diameter25 mm
_Packing Nut Height15 mm
_Packing Ring Height15 mm
_Packing Ring Neck Height9.7 mm
_Top of Stem41 mm
A mm74 mm
Assembly CodeD30
B mm127 mm
Barcode0
BodyBronze BS EN 1982 CC490K
Body Radius26.1 mm
Body Width45.6 mm
BonnetBronze BS EN 1982 CC490K
Bonnet Upper Depth3 mm
Bonnet Upper Radius26.66666667 mm
C mm74 mm
Connection Size42 mm
Connection Size Radius21 mm
DescriptionHattersley gate valves offer the ultimate in dependable service wherever minimum pressure drop is important.They serve as efficient stop valves with fluid flow in either direction. The straight through design offers little resistance to flow and reduces pressure drop to a minimum. A gate-like disc - actuated by a stem screw and handwheel - moves up and down at right angles to the path of flow, and seats against two seat faces to shut off the flow. Gate valves are not recommended for throttling since the control characteristic is not appropriate and subsequent damage due to erosion may prevent the valve providing an effective shut off.
DocumentationLink URLwww.hattersley.com/documents/Fig_C31_Gate_Valve_Hattersley_0813_v3.pdf
End ConnectionBS EN 10226-2 (ISO 7-1) formerly BS 21
Expected Life0
Gland PackingPTFE
HandwheelCast Iron BS EN 1561 EN-JL1030
Handwheel Depth18.5 mm
Handwheel MaterialPVC, Green
K Coefficient129
KeynoteS
Loss Method2
ManufacturerHattersley Ltd
ModelC31
OperatorHandwheel
Packing Ring Diameter34.66666667 mm
Packing Ring Neck Diameter11.55555556 mm
Pressure (BAR)www.hattersley.com/documents/Fig_C31_Gate_Valve_Hattersley_0813_v3.pdf
Pressure Rating (Cat)PN16
Product DescriptionBronze Gate Valve
Product Documentation Linkwww.hattersley.com/documents/Fig_C31_Gate_Valve_Hattersley_0813_v3.pdf
Product Page URLwww.hattersley.com/productView.asp?prodID=137&catID=2
Specification NotesRobust and high quality bronze body with integral seating surfaces. Inside screw pattern with non-rising stem. Suitable for high pressures up to 16 bar. Threaded bonnet. One piece wedge. Generally in accordance with BS EN 12266. Each valve is individually hydrostatically tested to BS EN 12266
StemBrass BS EN 12164 CW603N
Stem Corner Radius10.5 mm
Stem Diameter5 mm
Stem Height9.8 mm
Stem Loop Length36.4 mm
Stem Loop Width23.49 mm
Stem Retaining RingBrass BS EN 12164 CW603N
Temperature deg C-10 to 170
Type Comments1 1/2"
Uniclass 2WR-90-94-95
URLwww.hattersley.com/
Valve MaterialBrass, Soft Yellow
Warranty Duration12 months
Warranty Duration Unit12 months
WedgeBronze BS EN 1982 CC490K
Weight (kg)0.9

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
