Fig. 810 - Strainer - Ductile Iron

Description

FIG810
Robust ductile iron valve body for extended operational lifespan
Wafer pattern design for lightweight and efficient installation
Precision-engineered disc ensures reliable shut-off performance
Anti-blow out stem enhances operational safety under pressure
Fusion bonded epoxy coating for increased corrosion resistance
Suitable for HVAC, water, and general industrial applications
Compatible with BS EN 1092-2 PN16 flange standards
Designed in accordance with BS EN593
Stainless steel shaft for durability and strength

Object Data

1 Revision

Last Updated

29/04/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorSM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
12 HolesNo
16 HolesYes
20 HolesNo
4 HolesNo
8 HolesNo
A520 mm
Accessibility Performancen/a
Angle C45.00 °
Angled Piece Origin 11130 mm
Angled Piece Origin 2412 mm
Assembly CodeD20
Asset TypeFixed
B27 mm
BIM Object NameHattersley_Strainer_Fig810
Body Plate Length441 mm
Body Plate Offset204 mm
Body Plate Thickness7 mm
Body Sec Rad215 mm
C429 mm
Classification NameUniclass 2015
Classification ValuePr_65_55_86_99
Code Performancen/a
Colorn/a
Connection Size350 mm
Connection Size Radius175 mm
Constituentsn/a
Created Byenquiries@Hattersley.com
Created On2026-03-31T:09:00:00
D4 mm
Default Elevation0 mm
DescriptionDN350
DN350
DN100No
DN125No
DN150No
DN200No
DN250No
DN300No
DN350Yes
DN400No
DN450No
DN50No
DN500No
DN600No
DN65No
DN80No
Drain Angle45.00 °
Drain Diameter429 mm
Drain Extension857 mm
Drain Flange Radius493 mm
Drain Plug Rad13 mm
Drain Sec Length628 mm
Drain Sec Radius215 mm
Duration UnitYear
E980 mm
Expected Life0
F606 mm
Featuresn/a
Finishn/a
Flange Hole Centres470 mm
Flange Hole Diameter28 mm
G890 mm
Graden/a
H25 mm
H Half13 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcFilterTypeEnum.STRAINER
K Coefficient0
KeynoteS
Length927 mm
Length C606 mm
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig 810 - Strainer - Ductile Iron
Model NumberFig 810
Model ReferenceFig 810 - Strainer - Ductile Iron
NBS DescriptionY-type strainers
NBS Noten/a
NBS Object NameHattersley - Y-type strainers
NBS Office Master Tagn/a
NBS Reference90-20-80/320
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Production Year2026
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN350
Spare Partsn/a
Test Point Offset904 mm
Type CommentsDN350
Type NameDN350
URLwww.Hattersley.com/
Valve MaterialHattersley - Cast Iron - Blue
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@Hattersley.com
Warranty Guarantor Partsenquiries@Hattersley.com

Bimstore on 13 May 2026

Be the first to write a comment...

Fig. 810 - Strainer - Ductile Iron

Description

Object Data

Last Updated

Available Software

BS1192:4

BSB

EPD

Accompanying literature

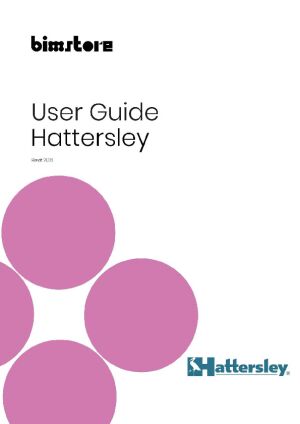

Object User Guide
