Fig. 731 - Globe Valve - Cast Iron

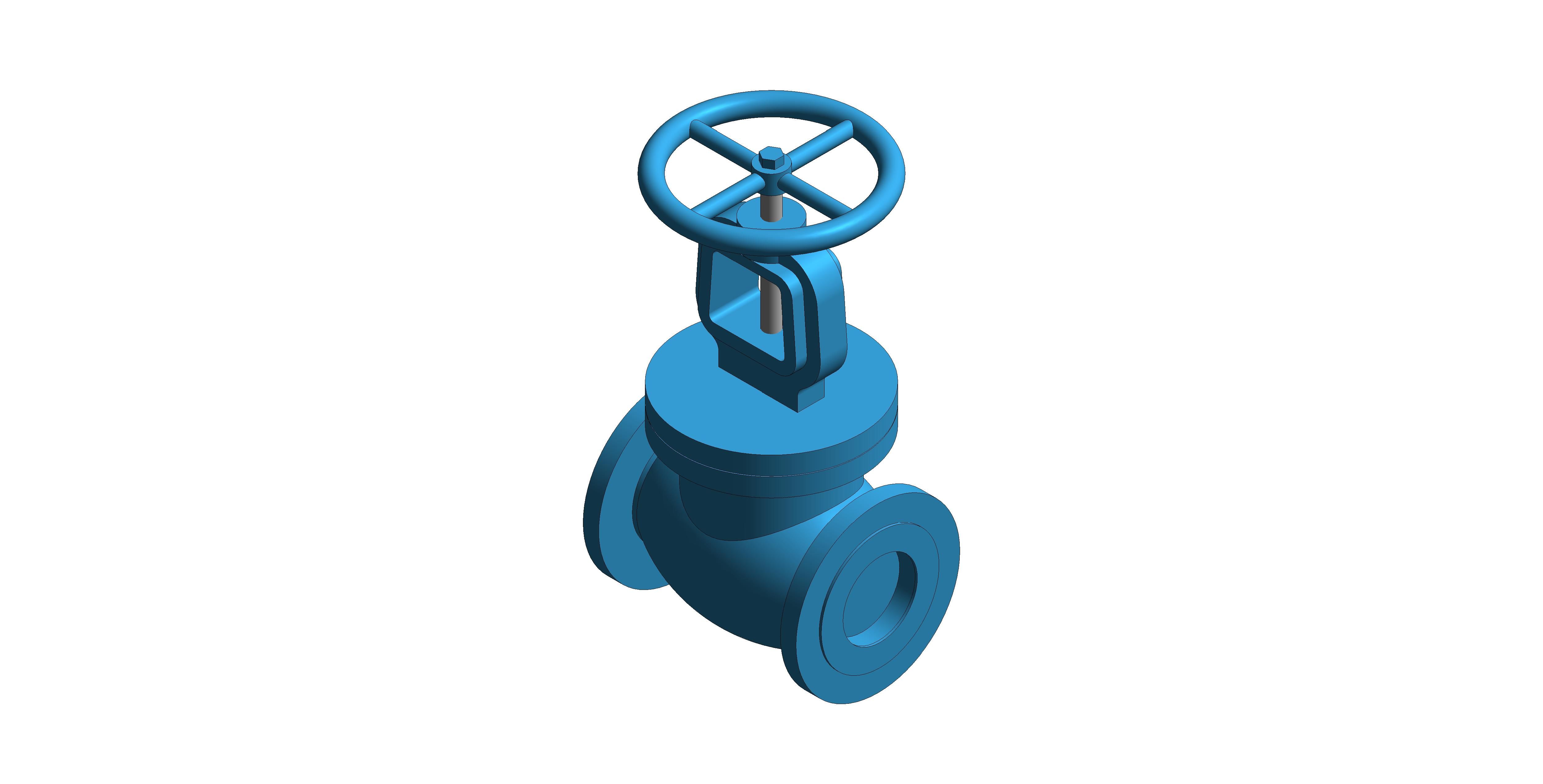

  • ISO

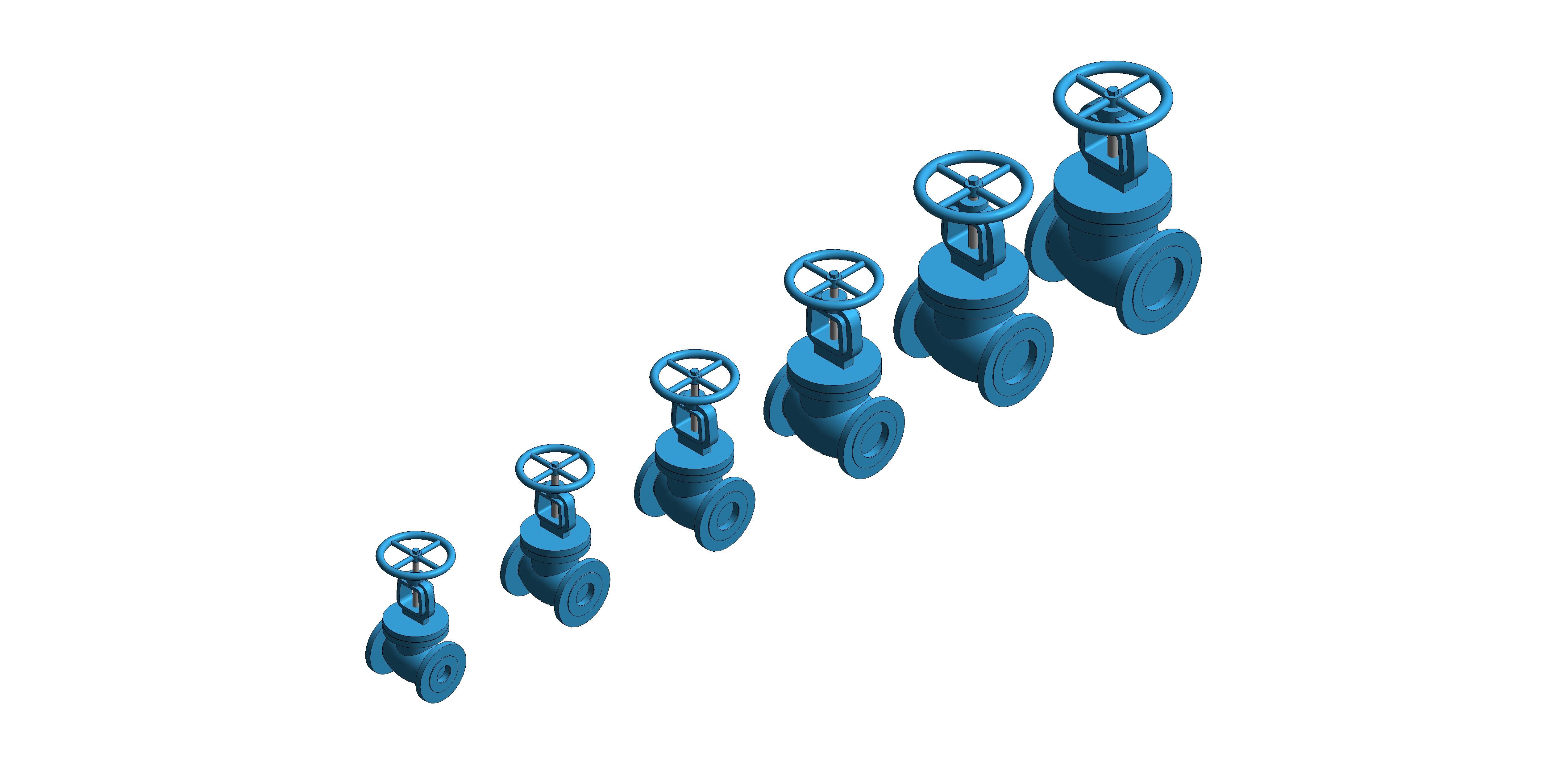

  • ISO RANGE
SketchfabSketchfab
  • Views 1.2k
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

28/03/2022

Available for:
  • Logo: Autodesk Revit

Globe Valve - Cast Iron

Fig. 731



Features & Benefits

  • Valve body is made of high grade cast iron and has integral flanges.
  • Supplied with asbestos free gland packing and gaskets.
  • Outside screw pattern with rising stem.
  • Ideal for use on more active media where fluid might have an adverse effect on thread.

Size

50mm to 300mm

Pressure Rating

PN16

Product Material

Cast Iron

End Connections

Flanged to BS EN 1092-2 PN16.

Test Pressure

Shell: 24 bar
Seat: 17.6 bar

Read more
