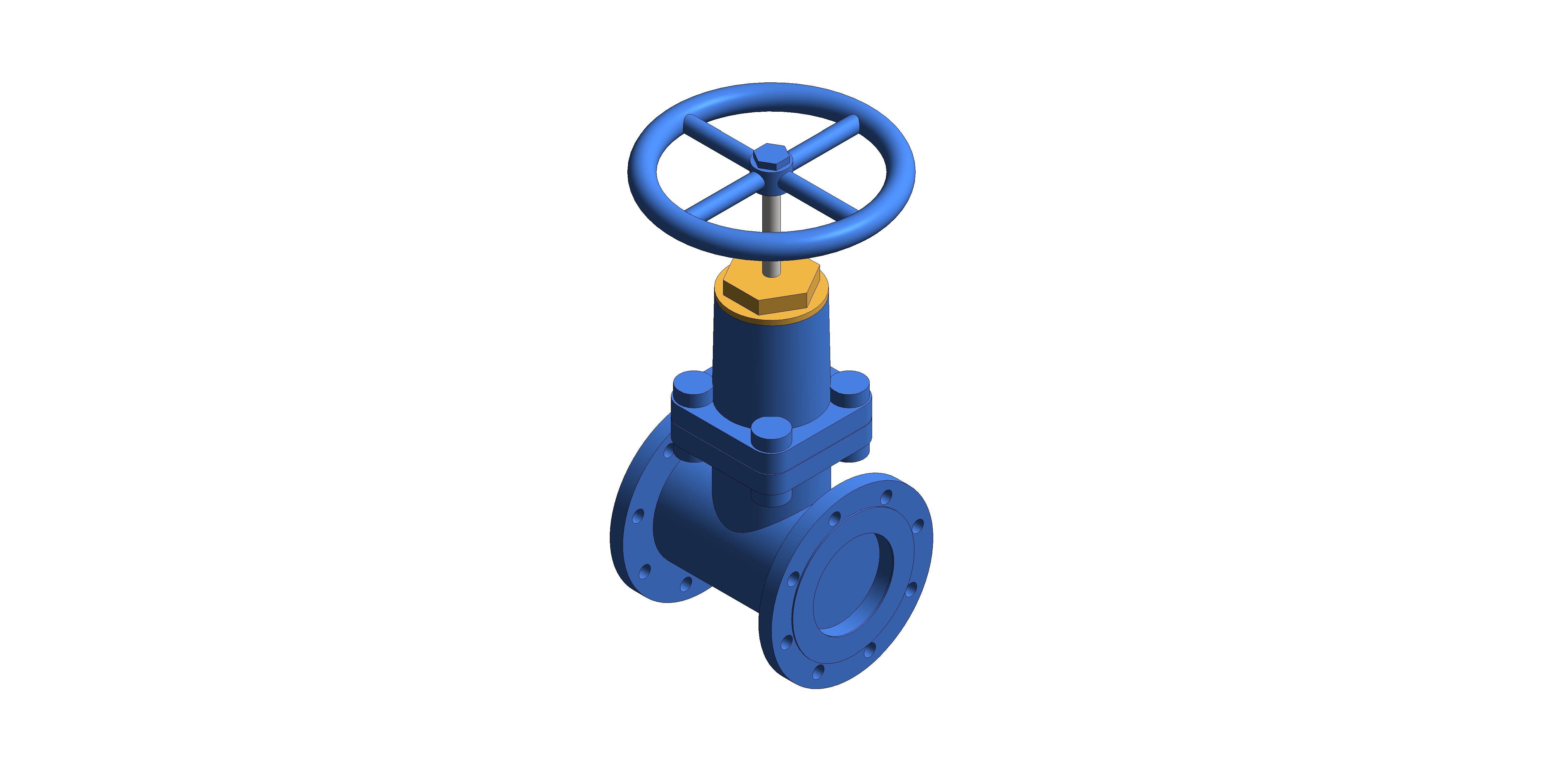

  • ISO

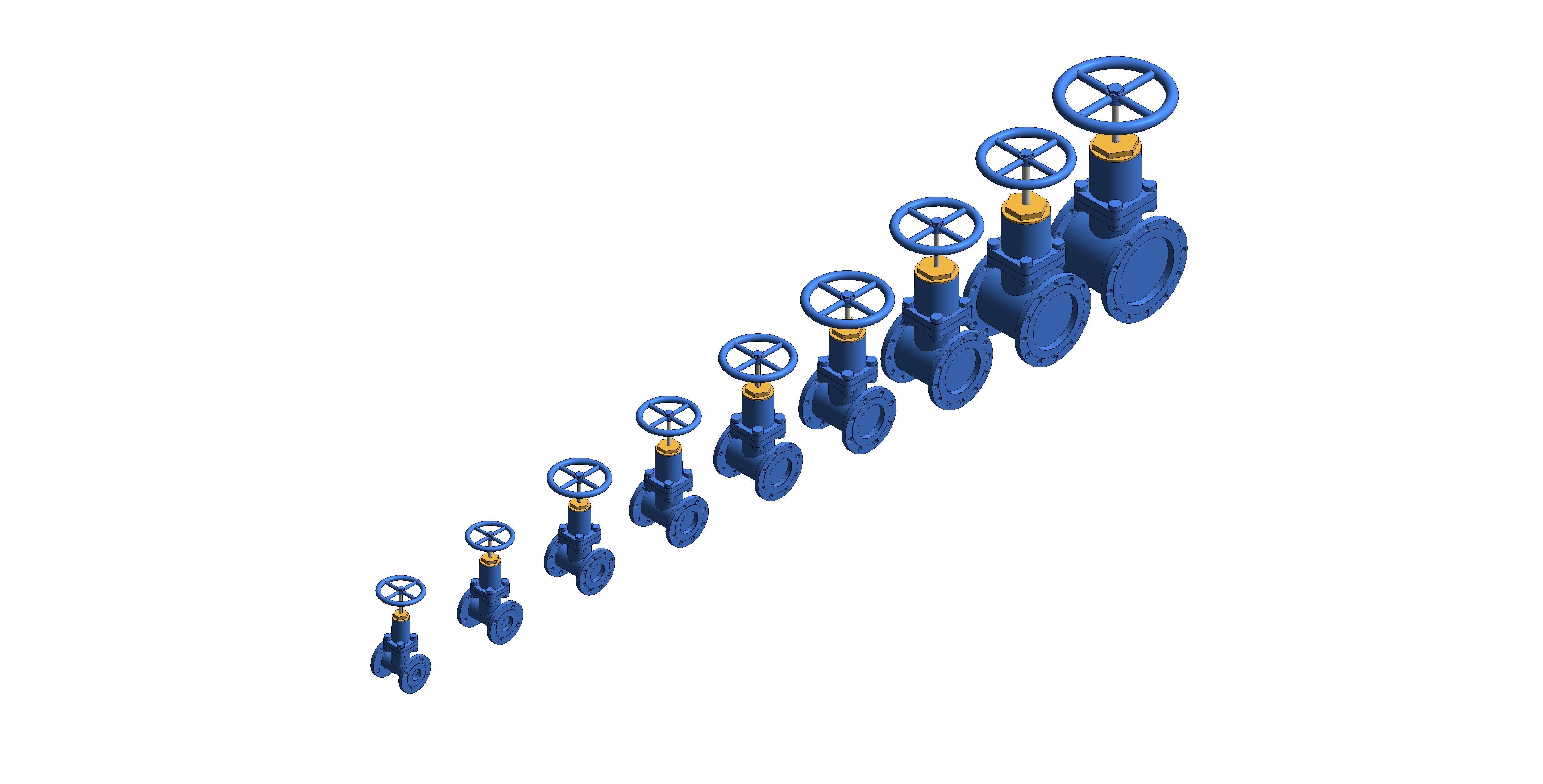

  • ISO RANGE
  • Views 1k
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

28/06/2022

Available for:
  • Logo: Autodesk Revit

Resilient Seated Gate Valve (RSGV) - Ductile Iron

Fig. 589HW & 589SA



Features & Benefits

  • Manufactured in accordance with BS EN 1074 for quality assurance
  • Handwheel (Fig.589 HW) or Stem Adaptor (Fig.589 SA) version available
  • WRAS Approved product to 23°C for potable water applications, maximum temperature rating 80°C
  • WRAS listed fusion bonded epoxy coating, minimum thickness 250 micron and corrosion resistant construction
  • Manufactured from Ductile Iron EN1563 EN-GJS-500-7 for improved durability
  • Ductile iron disc encapsulated with EPDM WRAS elastomer for improved isolation

Size

50mm – 300mm

PressurePN16

Temperature Rating

0°c to 80°c (WRAS 0°c to 23°c)

Product Material

Ductile Iron

End Connections

Flanged to BS EN 1092-2 PN16

Test Pressure

Shell: 24 Bar
Seat: 17.6 bar
