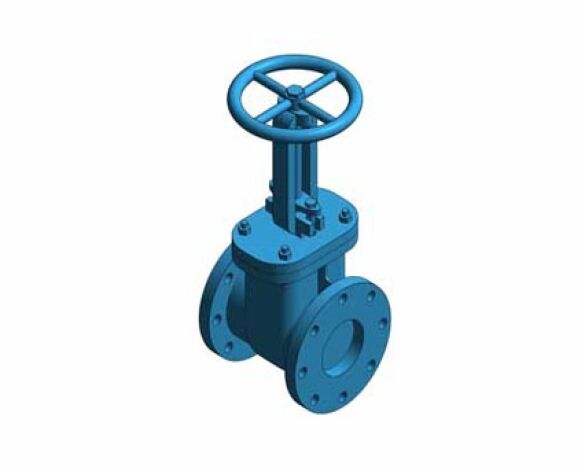

Fig 504 - Gate Valve - Cast Iron

by Hattersley

Download Add to collection

Description

Features & Benefits:

Ductile iron with integral flanges.
Outside screw pattern with rising stem.
Ideal for use on more active media where fluid might have an adverse affect on thread.
Flanged ends require no pipe threading.

Object Data

1 Revision

Last Updated

15/03/2014

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Object metadata

_authorMark Thompson
_BIMspec_GUID0
_current revision1
_distributed bywww.bimstore.co.uk
_End Flange Hole Centres362 mm
_End Flange Hole Diameter25 mm
12_HolesYes
4_HolesNo
8_HolesNo
A mm330 mm
Assembly CodeD30
B mm30.2 mm
Barcode0
BodyCast Iron BS EN 1561 GJL-250
Body Radius129.92 mm
Body Seat RingBronze BS EN 1982 CC491K
Body Width269.6 mm
BonnetCast Iron BS EN 1561 GJL-250
Bonnet Bolt NutsSteel BS 3692 Gr. 8.0
Bonnet BoltsSteel BS 3692 Gr. 8.8
Bonnet Disk Depth33.83333333 mm
Bonnet Gap0 mm
Bonnet GasketAsbestos Free
Bonnet Nut Centre 1167.7 mm
Bonnet Nut Centre 2278.85 mm
Bonnet Nut Depth67.66666667 mm
Bonnet Nut Diameter32.25 mm
C mm406 mm
Connection Size250 mm
Connection Size Radius125 mm
D mm922 mm
DescriptionHattersley gate valves offer the ultimate in dependable service wherever minimum pressure drop is important.They serve as efficient stop valves with fluid flow in either direction. The straight through design offers little resistance to flow and reduces pressure drop to a minimum. A gate-like disc - actuated by a stem screw and handwheel - moves up and down at right angles to the path of flow, and seats against two seat faces to shut off the flow. Gate valves are not recommended for throttling since the control characteristic is not appropriate and subsequent damage due to erosion may prevent the valve providing an effective shut off.
DiscCast Iron BS EN 1561 GJL-250
Disc Seat RingBronze BS EN 1982 CC491K
DocumentationLink URLwww.hattersley.com/documents/Fig_504_Gate_Valve_Hattersley_0813_v3.pdf
E mm1199 mm
Expected Life0
F mm258 mm
Fin Side Depth129.92 mm
Fin Width52.3 mm
G mm429 mm
GlandCast Iron BS EN 1561 GJL-250
Gland BoltsSteel BS 3692 Gr. 8.8
Gland Stud/Bolt NutsSteel BS 3692 Gr. 8.0
Grease Lubricator
Grease Lubricator Offset540.6333333 mm
H mm356 mm
Handle MaterialCast Iron - Blue Paint
HandwheelGrey Iron BS EN 1561 GJL-250
Handwheel Depth35.6 mm
ID PlateAluminium
K Coefficient5771
KeynoteS
Loss Method2
ManufacturerHattersley Ltd
Model504
OperatorHandwheel
PackingAsbestos Free
Pressure (BAR)www.hattersley.com/documents/Fig_504_Gate_Valve_Hattersley_0813_v3.pdf
Pressure Rating (Cat)Class 125
Product DescriptionCast Iron Gate Valve
Product Documentation Linkwww.hattersley.com/documents/Fig_504_Gate_Valve_Hattersley_0813_v3.pdf
Product Page URLwww.hattersley.com/productView.asp?prodID=17&catID=2
Side Fin Height203 mm
Specification NotesDuctile Iron with integral flanges. Outside screw pattern with rising stem. Ideal for use on more active media where fluid might have an adverse affect on thread. Flanges ends require no pipe threadingBS 5150:1990 ANSI 125. Face to face dimensions ANSI B16.10. Rising stem. Bronze trim. Flanged to ANSI B16.1 Class 125. Complies with MSS SP-70 Class 125.
StemBrass ASTM B16-C36001
Stem Corner Radius57.1648 mm
Stem Height600.5833333 mm
Stem Loop Depth285.824 mm
Stem Loop Width165 mm
Stem Lower Circle Radius142.912 mm
Stem Radius17.8 mm
Temperature deg C-10 to 230
Top of Stem253.75 mm
Type Comments10"
Uniclass 2WR-90-94-95
URLwww.hattersley.com/
US End ConnectionANSI B16.1 Class 125
Valve MaterialCast Iron - Blue Paint
Warranty Duration12 months
Warranty Duration Unit12 months
Weight (kg)185
YokeCast Iron BS EN 1561 GJL-250
Yoke Hub BoltsSteel BS 3692 Gr. 8.8
Yoke Hub NutsSteel BS 3692 Gr. 8
Yoke Pad BoltsSteel BS 3692 Gr. 8.8
Yoke Pad NutsSteel BS 3692 Gr. 8
Yoke SleeveBronze BS EN 1982 CC491K
Yoke Sleeve NutCast or Ductile Iron
Yoke Sleeve Retg NutCast or Ductile Iron

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.

Comments

You must log in to write a comment

Login or Join

Gerson Signe on 10 May 2018

I loaded this on my project but is not working properly when i put it in my pipes. it is not visible. My pipes get displaced and there is only 1 size available which is 2 1/2.
i downloaded all in the zip file.
I am using revit 2017.
Any advice.

Fig 504 - Gate Valve - Cast Iron

Description

Object Data

Last Updated

Available Software

BS1192:4

BSB

EPD

Accompanying literature

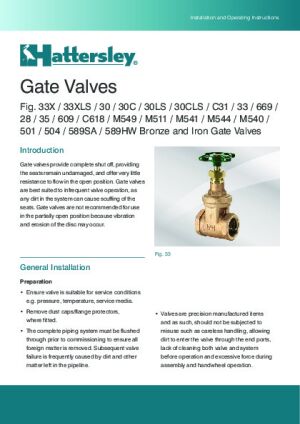

Installation Guide
