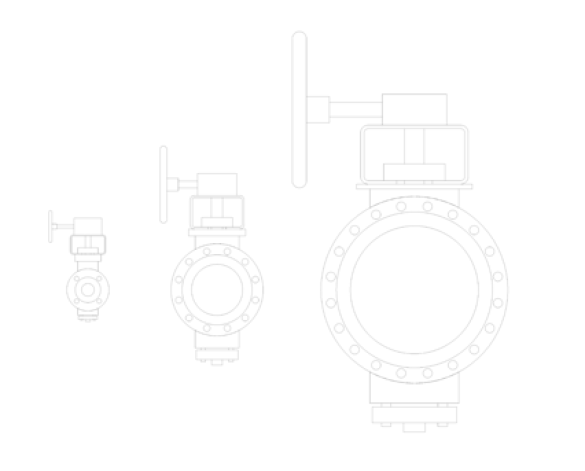

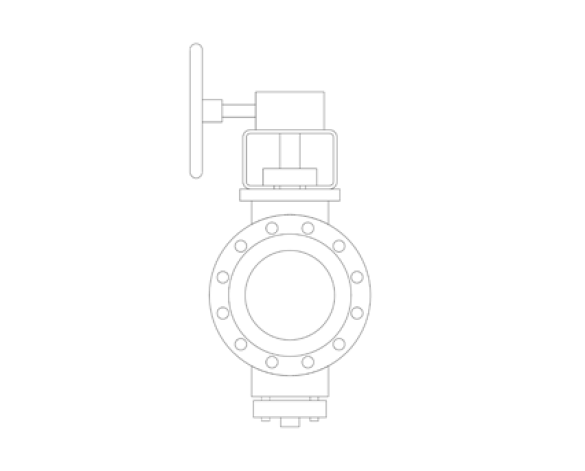

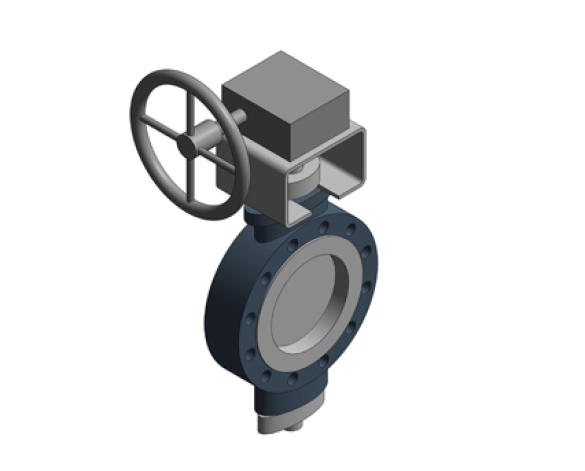

Fig 4993G - SBV - Steel Fully-lugged Double Regulating Valve - PN25

Download Add to collection

Description

Features & Benefits:

Precise flow regulation
Flanged with handwheel - easy to install and operate
Positive flow control at all handwheel settings
Bi-directional isolation
Double eccentric disc

Object Data

1 Revision

Last Updated

16/04/2014

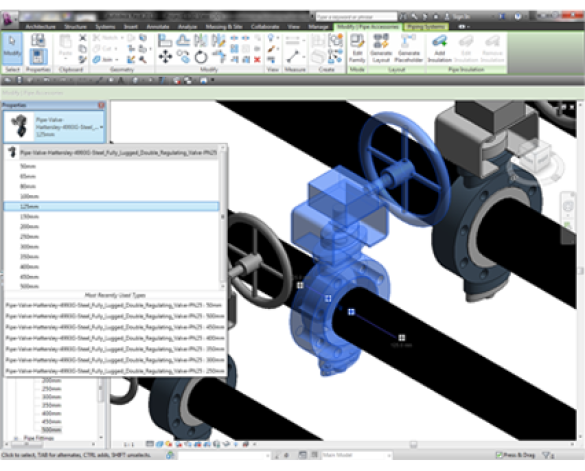

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_authorMark Thompson
_BIMspec_GUID0
_Bracket Width170 mm
_current revision1
_distributed bywww.bimstore.co.uk
_End Flange Diameter235 mm
_End Flange Hole Centres190 mm
_End Flange Hole Diameter22 mm
_Operator_C130 mm
_Operator_E108 mm
_Operator_H65 mm
12_HolesNo
16_HolesNo
20_HolesNo
4_HolesNo
8_HolesYes
A mm64 mm
Assembly CodeD30
B mm175 mm
Barcode0
BearingsBronze PTFE
BodySteel BS EN 10213-2 GP240GH
Body SeatStainless Steel 10270 X10CrNr18-8
Bottom CapSteel BS EN 10213-2 GP240GH
Bracket Height100.3571429 mm
Bracket Length128 mm
C mm35 mm
Central Radius76 mm
Central Radius 2152 mm
Central Thickness70.4 mm
Connection Size100 mm
Connection Size Radius50 mm
Connector 1 Length55.95238095 mm
Connector 1 Width29.09090909 mm
Connector 2 Length72.73809524 mm
Connector 2 Width34.90909091 mm
D mm250 mm
DescriptionPrecise flow regulation. Flanged with hand wheel- easy to install and operate. Positive flow control at all hand wheel settings. Bi directional isolation. Double eccentric disc.
DiscStainless Steel 10270 X10CrNr18-8
Disc PinStainless Steel 10270 X10CrNr18-8
Disc Seal RingPTFE or PTFE/Neoprene
Disc Thickness21.33333333 mm
DocumentationLink URLwww.hattersley.com/documents/Fig_4993G_PN25_DN50_150_DRV_SBV_Hattersley_0813_v3.pdf
E mm52 mm
End ConnectionFlanged to BS EN 1092-2 PN25
End Flange Radius120.5128205 mm
Expected Life0
F mm184 mm
Gear Operator MaterialIron, Ductile
GearboxCast Iron BS EN 1561 EN JLI030
Gland PackingPTFE or PTFE/Neoprene
H mm281 mm
HandwheelStainless Steel 10270 X10CrNr18-8
K Coefficient0
KeynoteS
Loss Method2
Lower Height33.82352941 mm
Lower Length106.3095238 mm
Lower Offset141.1764706 mm
ManufacturerHattersley Ltd
Model4993G
Model Number4993G
Pressure (BAR)www.hattersley.com/documents/Fig_4993G_PN25_DN50_150_DRV_SBV_Hattersley_0813_v3.pdf
Pressure Rating (Cat)PN25
Product DescriptionSteel Fully-Lugged Double Regulating Valve - PN25
Product Documentation Linkwww.hattersley.com/documents/Fig_4993G_PN25_DN50_150_DRV_SBV_Hattersley_0813_v3.pdf
Product Page URLwww.hattersley.com/productView.asp?prodID=73&catID=9
Retaining RingStainless Steel 10270 X10CrNr18-8
Specification NotesDesigned to BS EN 593: 2009. Face to face dimensions to BS EN 558-1 basic series 16. Reinforced PTFE disc seal. Stainless steel body seat. Double eccentric disc. Bi-directional isolation. Valves fitted with double regulating feature. Actuator flange ISO 5211/1.
StemStainless Steel 10270 X10CrNr18-8
Stem Radius16 mm
Temperature deg C-10 to 204°C
Type Comments100mm
Type Name100mm
Uniclass 2WR-90-94-95
URLwww.cranefs.com/
Valve MaterialSteel - Blue
Valve Material 2Steel
Void Radius117.5 mm
Warranty Duration12 months
Warranty Duration Unit12 months
Weight (kg)24
