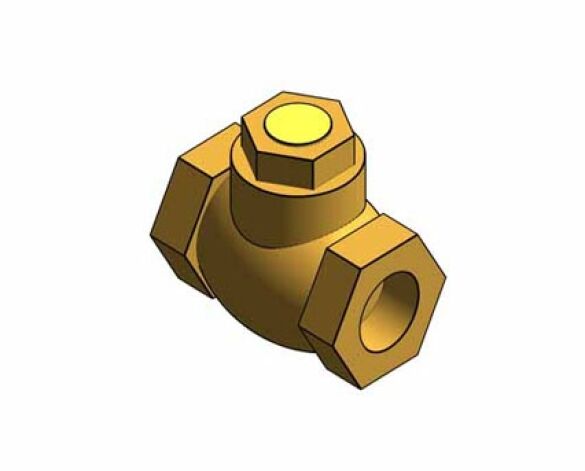

Fig 42 - Check Valves - Bronze - Horizontal Lift

Object metadata

• _authorMark Thompson
• _BIMspec_GUID0
• _Body Curve Centre34 mm
• _Body Radius70 mm
• _current revision1
• _distributed bywww.bimstore.co.uk
• _End Nut Diameter63.5 mm
• _End Nut Thickness18.5 mm
• A mm109 mm
• Assembly CodeD30
• B mm64 mm
• Barcode0
• BodyBronze BS EN 1982 CC491K
• Body Width72 mm
• CapBronze BS EN 1982 CC491K
• Cap Diameter43.2 mm
• Cap Height14.4 mm
• Centre Radius28.8 mm
• Connection Size42 mm
• Connection Size Radius21 mm
• DescriptionCheck valves permit flow in one direction only and close automatically if flow reverses. They are entirely automatic in action, depending upon pressure and velocity of flow within the line to perform their functions of opening and closing. Lift Check Valves should only be used in horizontal pipe runs. The Crane D104 check valve is of the lift check variety. Robust and high quality bronze body. Horizontal lift pattern. Metal to metal seat for enhance sealing. Fits in horizontal pipework only not vertical
• Disc

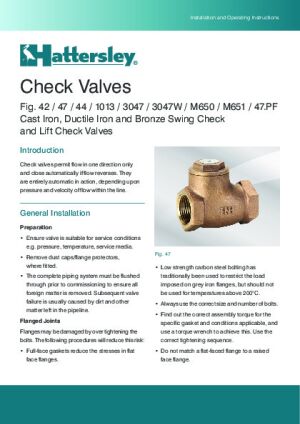

• DocumentationLink URLwww.hattersley.com/documents/Fig_42_Check_Valve_Hattersley_0813_v3.pdf
• Expected Life0
• ID PlateAluminium
• ID Plate Height1 mm
• ID Plate MaterialAluminum (Yellow)
• ID Plate Radius14.4 mm
• K Coefficient62.1
• KeynoteS
• Loss Method2
• ManufacturerHattersley Ltd
• Model42
• OperatorHorizontal Lift Check Valve
• Pressure (BAR)www.hattersley.com/documents/Fig_42_Check_Valve_Hattersley_0813_v3.pdf
• Pressure Rating (Cat)PN32
• Product DescriptionBronze Horizontal Lift Check Valve
• Product Documentation Linkwww.hattersley.com/documents/Fig_42_Check_Valve_Hattersley_0813_v3.pdf
• Product Page URLwww.hattersley.com/productView.asp?prodID=28&catID=6
• Specification NotesBS 5154:1991. Bronze body. Horizontal lift pattern. Metal to metal seat. Guilded disc. Threaded cap.
• Temperature deg C-10 to 198 deg C
• Top of Stem48.6 mm
• Type Comments1 1/2"
• UK End ConnectionBS EN 10226 ISO 7-1
• Uniclass 2WR-90-94-95
• URLwww.hattersley.com/
• US End ConnectionANSI B1.20.1
• Valve MaterialBrass, Soft Yellow
• Warranty Duration12 months
• Warranty Duration Unit12 months
• Weight (kg)2.5
