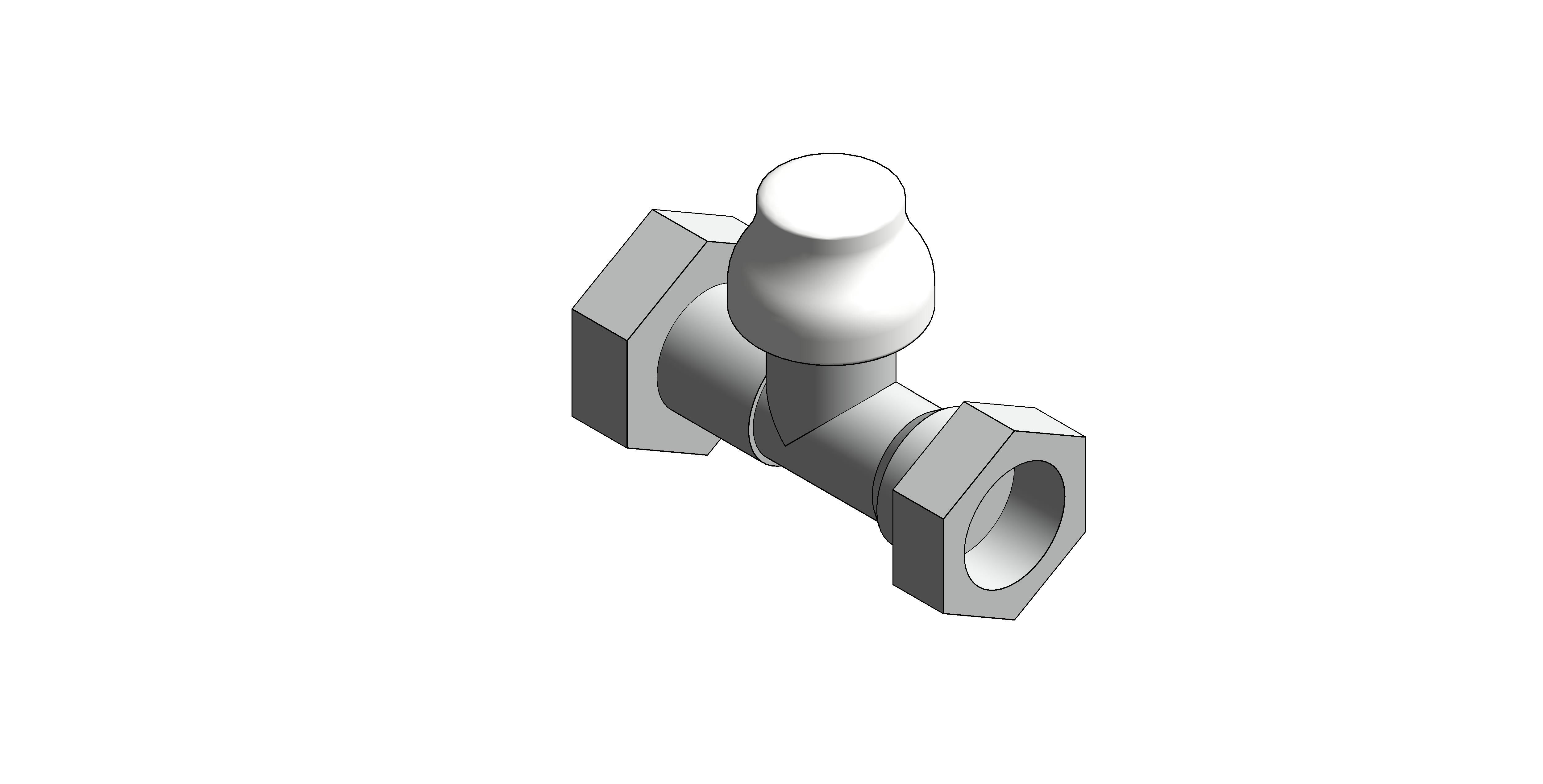

Fig. 3400LS - Straight Lockshield Valve - Brass

Download Add to collection

Description

Straight Lockshield Valve - Brass

Fig. 3400LS

Features & Benefits

Regulates the fluid flow to radiators of the central heating system.
Prevents unwanted temperature rises and achieves considerable energy savings.
Suitable for installations where durability and rugged construction are predominant.

Product Material

Brass

Object Data

1 Revision

Last Updated

28/03/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

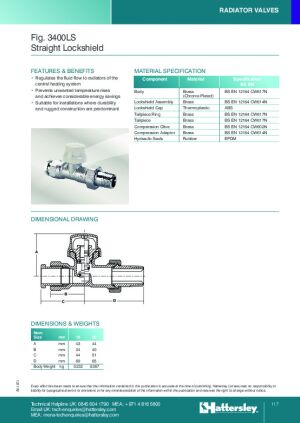

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/fig-3400ls-straight-lockshield-valve-brass/document/object-user-guide
a15.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b3.00 mm
BIM Object NameHattersley_StraightLockshieldValve_3400LS
BodyBrass (Chrome Plated) BS EN 12164 CW617N
c5.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_70
Code Performancen/a
Colorn/a
Compression AdaptorBrass BS EN 12164 CW614N
Compression OliveBrass BS EN 12164 CW602N
Connection Radius7.50 mm
Connection Size15.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2022-02-01 T:09:00:00
d11.00 mm
DescriptionThe new range offers interchange-ability of the TRV head and the Wheelhead. The revolutionary body design enables both the TRV head and the Wheelhead to be connected directly to a common valve body without the need for adaptors. This breakthrough design reduces the cost of stock holding and increases the versatility of the range. The design has been consolidated into a single chrome plated finish.
Documentation Certificateswww.bimstore.co/products/fig-3400ls-straight-lockshield-valve-brass/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fig-3400ls-straight-lockshield-valve-brass/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fig-3400ls-straight-lockshield-valve-brass/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fig-3400ls-straight-lockshield-valve-brass/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fig-3400ls-straight-lockshield-valve-brass/document/technical-data-sheet
Duration UnitYear
e20.00 mm
Expected Life0
f23.00 mm
FeaturesComplete with compression adaptor allows for installation onto either threaded or smooth pipe to suit site requirements
Finishn/a
g16.00 mm
Graden/a
h7.00 mm
Hex 130.00 mm
Hex 227.00 mm
Hex Length19.00 mm
Hydraulic SealsRubber EPDM
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
Inlet Length29.00 mm
k12.00 mm
K Coefficient0
KeynoteS
Lockshield AssemblyBrass BS EN 12164 CW614N
Lockshield CapThermoplastic ABS
Loss MethodK Coefficient
m0.00 mm
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 3400LS
Model NumberFig. 3400LS
Model ReferenceFig. 3400LS - Straight Lockshield Valve
n0.00 mm
NBS DescriptionRadiator valves
NBS Noten/a
NBS Object NameHattersley- Radiator valves
NBS Office Master Tagn/a
NBS Reference90-10-90/362
Nominal Depth32.00 mm
Nominal Height65.00 mm
Nominal Length69.00 mm
Production Year2022
Rad 110.00 mm
Rad 211.00 mm
Rad 312.00 mm
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size15mm
Spare Partsn/a
Symbol Length Inlet0.00 mm
Symbol Length Outlet0.00 mm
TailpieceBrass BS EN 12164 CW617N
Tailpiece RingBrass BS EN 12164 CW617N
Type CommentsFig. 3400LS - Straight Lockshield Valve
Type NameFig. 3400LS - Straight Lockshield Valve
URLwww.hattersley.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
Weight0.23 kg
