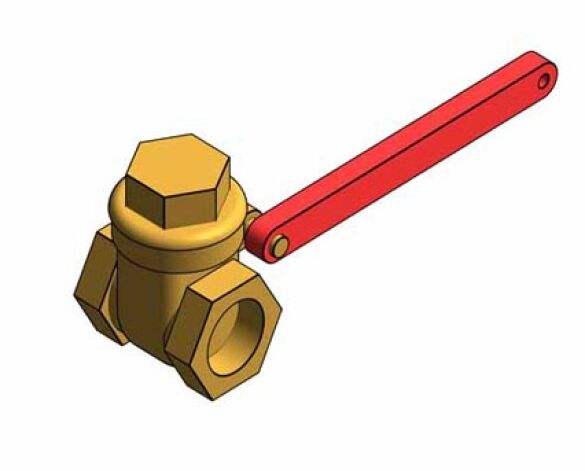

Fig 28 - Gate Valve - Bronze - Lever Operated

Download Add to collection

Description

Features & Benefits:

Robust and high quality bronze body with integral seating surfaces.
Lever operated for ease of use.
Fitted with asbestos-free gland packing as standard.

Object Data

1 Revision

Last Updated

15/03/2014

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

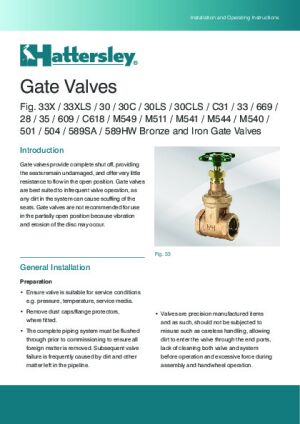

Installation Guide

Product Data Sheet

Object metadata

_authorMark Thompson
_BIMspec_GUID0
_Bonnet Lower Depth15 mm
_Bonnet Lower Radius31 mm
_current revision1
_distributed bywww.bimstore.co.uk
_End Nut Diameter58 mm
_End Nut Thickness14.2 mm
_Top of Stem30.56 mm
Assembly CodeD30
Barcode0
BodyBronze
Body Radius26.68 mm
Body Width38.6 mm
Bonnet Upper Depth6 mm
Bonnet Upper Radius32.55 mm
Connection Size42 mm
Connection Size Radius21 mm
D mm215 mm
DescriptionHattersley gate valves offer the ultimate in dependable service wherever minimum pressure drop is important.They serve as efficient stop valves with fluid flow in either direction. The straight through design offers little resistance to flow and reduces pressure drop to a minimum. A gate-like disc - actuated by a stem screw and handwheel - moves up and down at right angles to the path of flow, and seats against two seat faces to shut off the flow. Gate valves are not recommended for throttling since the control characteristic is not appropriate and subsequent damage due to erosion may prevent the valve providing an effective shut off.
DocumentationLink URLwww.hattersley.com/documents/Fig_28_Gate_Valve_Hattersley_0813_v3(1).pdf
End ConnectionN/A
End Nut Large Radius33.48631561 mm
End Nut Radius29 mm
Expected Life0
GasketFibre
H mm68 mm
Handle Turn Calc143.2723511 mm
K Coefficient129
KeynoteS
L mm67 mm
LeverBrass
Lever Connector Depth19.12066667 mm
Lever Connector Offset38.24133333 mm
Lever MaterialBrass, Red Paint
Loss Method2
ManufacturerHattersley Ltd
Model28
O_RingNBR
OperatorLever
Packing Nut Diameter41.1 mm
Packing Nut Height16.44 mm
PlugBrass
Pressure (BAR)www.hattersley.com/documents/Fig_28_Gate_Valve_Hattersley_0813_v3(1).pdf
Pressure Rating (Cat)PN16
Product DescriptionCWP Bronze Gate Valve - Lever Operated
Product Documentation Linkwww.hattersley.com/documents/Fig_28_Gate_Valve_Hattersley_0813_v3(1).pdf
Product Page URLwww.hattersley.com/productView.asp?prodID=6&catID=2
Specification NotesRobust and high quality bronze body with integral seating surfaces. Lever operated for ease of use. Fitted with asbestos-free gland packing as standard. Screwed BSP.
Stem Corner Radius8.685 mm
Stem Loop Depth57.362 mm
Stem Loop Length34.74 mm
Stem Loop Width26 mm
Stem Lower Circle Radius28.681 mm
Temperature deg C-20 to 90
Type Comments1 1/2"
Uniclass 2WR-90-94-95
URLwww.hattersley.com/
Valve MaterialBrass, Soft Yellow
Warranty Duration12 months
Warranty Duration Unit12 months
WasherBrass
WedgeBrass
Weight (kg)1.08
