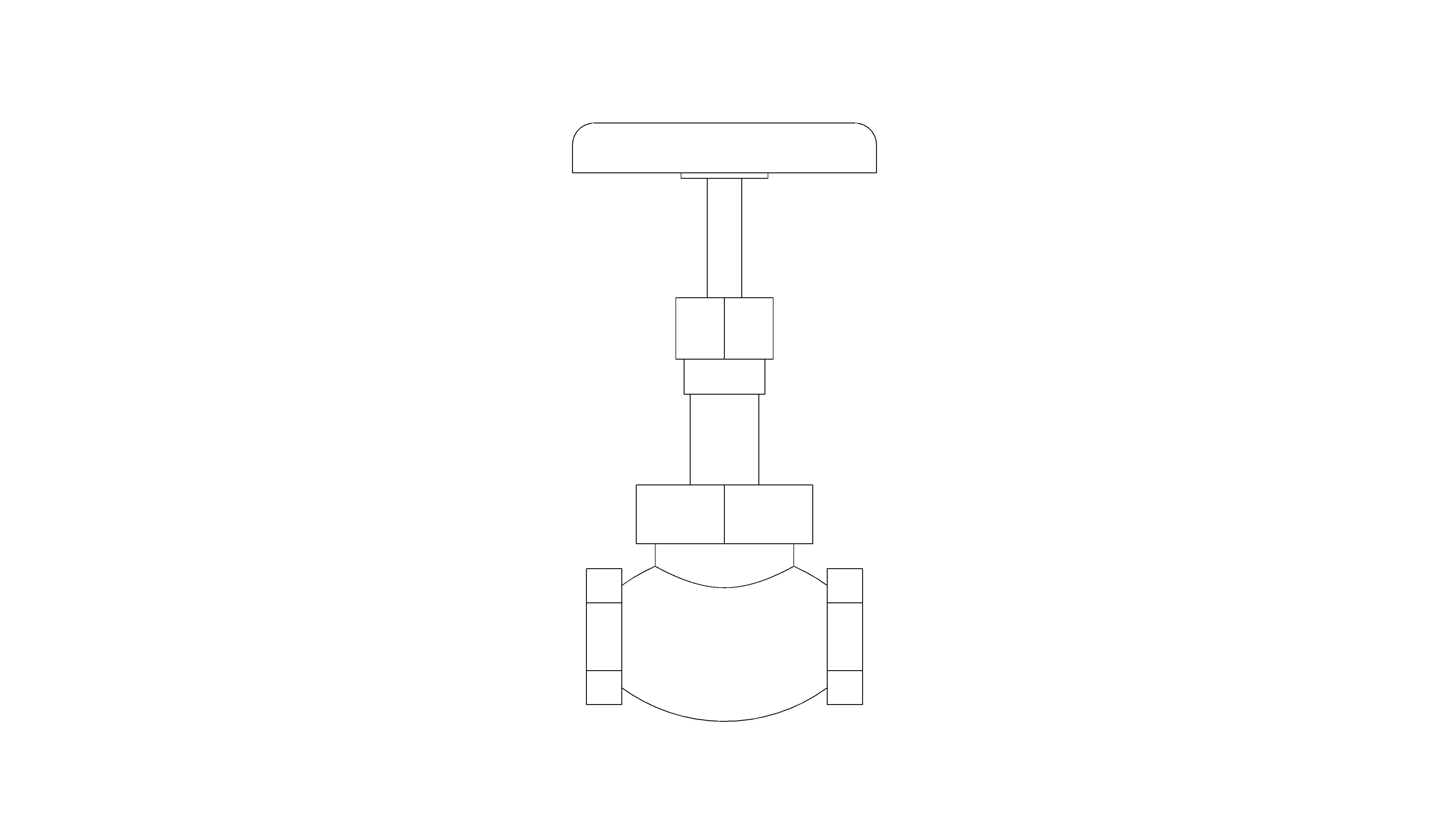

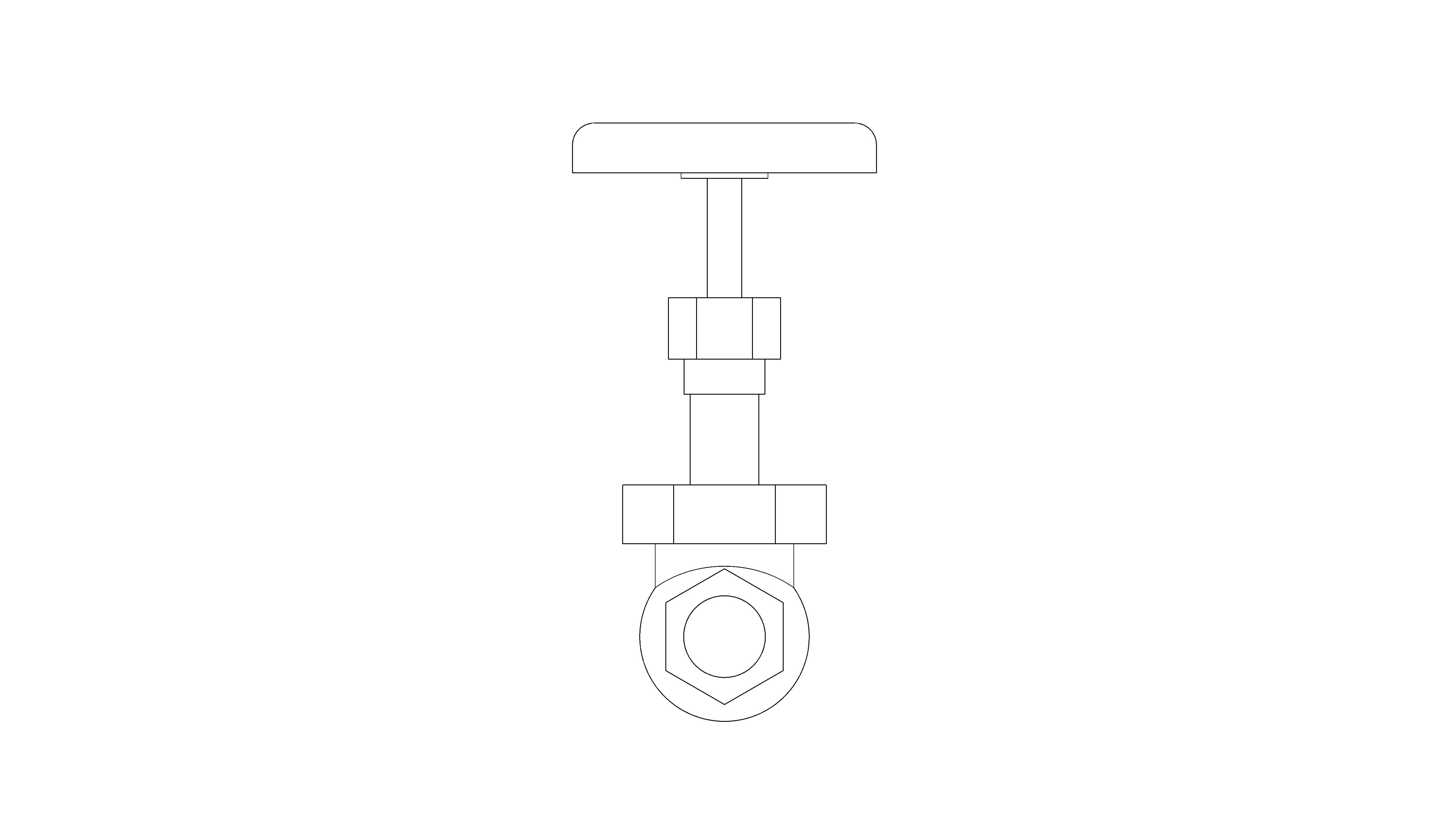

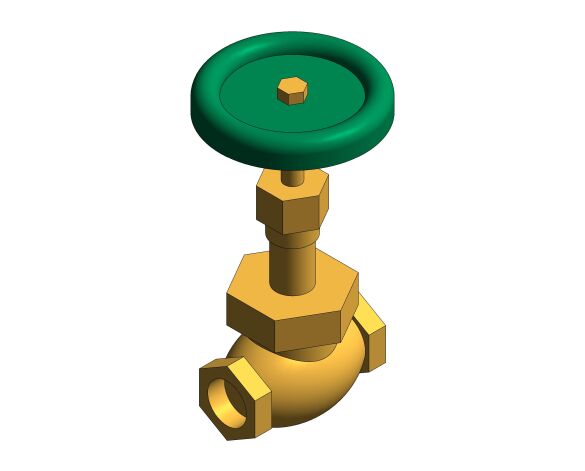

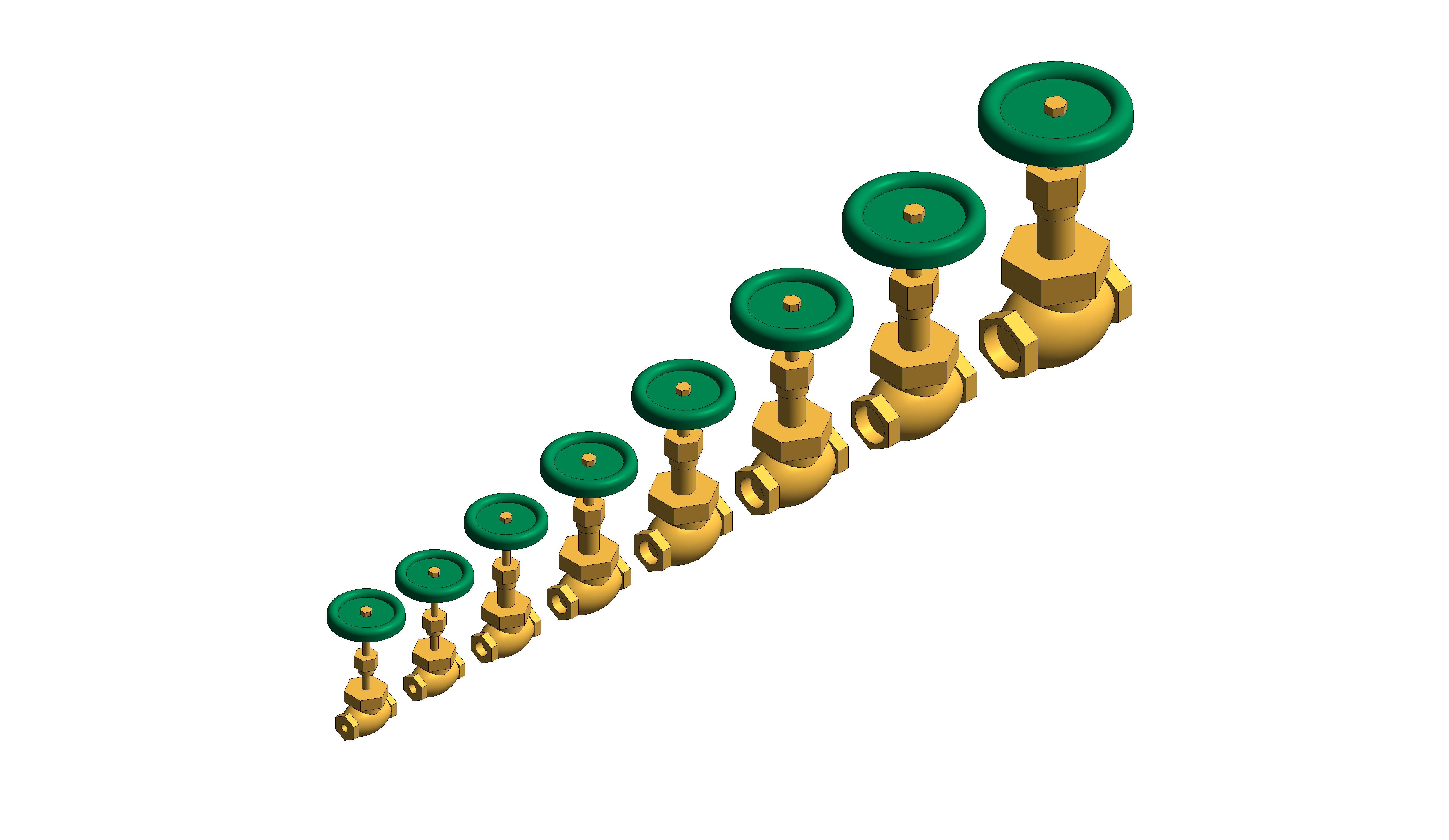

Fig. 23 - Globe Valve - Bronze

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/fig-23-globe-valve-bronze/document/object-user-guide
• a15.4 mm
• A121.0 mm
• Accessibility Performancen/a
• Assembly CodeD30
• Asset TypeFixed
• b22.0 mm
• B225.0 mm
• BIM Object NameHattersley_GlobeValve_Fig23
• BodyBronze BS EN 1982 (CC491K)
• Body Seat Ring13% Cr. Steel BS 970 Pt1 410S21 OR BS 970 Pt1 431S29
• BonnetBronze BS EN 1982 (CC491K)
• c76.0 mm
• C139.0 mm
• Classification NameUniclass2015
• Classification ValuePr_65_54_95_16
• Code Performancen/a
• Colorn/a
• Connection Radius20.0 mm
• Connection Size40.0 mm
• Constituentsn/a
• Created Byenquiries@hattersley.com
• Created On2023-09-11 T09:00:00
• d41.0 mm
• Default Elevation0.0 mm
• DescriptionPN40 Bronze Globe Valve
• Disc316 ST. STEEL
• Disc Stem RingMang. Bronze BS EN 12164 CW721R
• Documentation Certificateswww.bimstore.co/products/fig-23-globe-valve-bronze/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/fig-23-globe-valve-bronze/document/installation-guide

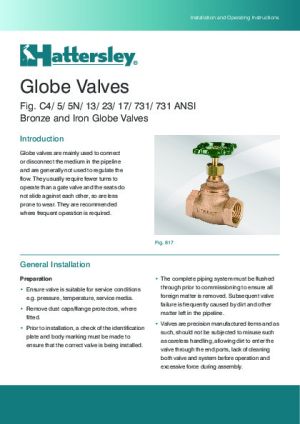

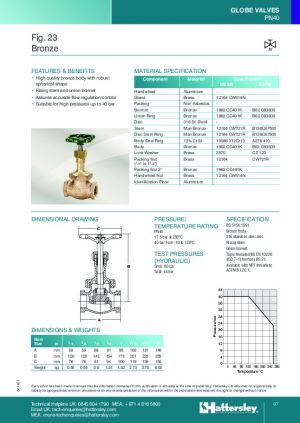

• Documentation Literaturewww.bimstore.co/products/fig-23-globe-valve-bronze/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/fig-23-globe-valve-bronze/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/fig-23-globe-valve-bronze/document/technical-data-sheet
• Duration UnitYear
• e25.9 mm
• End ConnectionTaper threaded BS EN 10226 (ISO 7-1) formerly BS 21
• Expected Life0
• f30.3 mm
• Features- High quality bronze body with robust spherical shape - Rising stem and union bonnet - Assures accurate flow regulation/ control - Suitable for high pressures up to 40 bar
• Finishn/a
• g15.2 mm
• GlandBrass BS EN 12164 CW614N
• Graden/a
• h17.7 mm
• HandwheelAluminium
• Handwheel NutBrass BS EN 12164 CW614N
• Handwheel Offset25.3 mm
• Hex Width 150.0 mm
• Hex Width 277.0 mm
• Hex Width 343.0 mm
• i21.3 mm
• Identity PlateAluminium
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.REGULATING
• j106.5 mm
• k15.0 mm
• K Coefficient0
• KeynoteS
• l27.3 mm
• Lock WasherBrass BS 2870 - CZ 123
• Loss MethodK Coefficient
• m7.4 mm
• M4 X4 SK.HD.Set ScrewStainless Steel BS 970 PART 4 - 304 S15
• ManufacturerHattersley
• Manufacturer NameHattersley
• MaterialBronze
• ModelFig. 23
• Model NumberFig. 23
• Model ReferenceFig. 23
• n13.0 mm
• NBS DescriptionCopper alloy globe valves
• NBS Noten/a
• NBS Object NameHattersley - Copper alloy globe valves
• NBS Office Master Tagn/a
• NBS Reference90-10-90/344
• Nominal Depth0.0 mm
• Nominal Height0.0 mm
• Nominal Length0.0 mm
• PackingAsbestos Free
• Packing NutBrass BS EN 12164 CW721R
• Production Year2023
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Spare Partsn/a
• StemMang. Bronze BS EN 12164 CW721R
• Test PressureShell: 60 bar; Seat: 44 bar
• Type Comments1-1/2"
• Type Name1-1/2"
• Union Nut-LockableBronze BS EN 1982 (CC491K)
• URLwww.hattersley.com
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsenquiries@hattersley.com
• Weight3.78 kg
