Fig. 13 - Globe Valve - Bronze

Download Add to collection

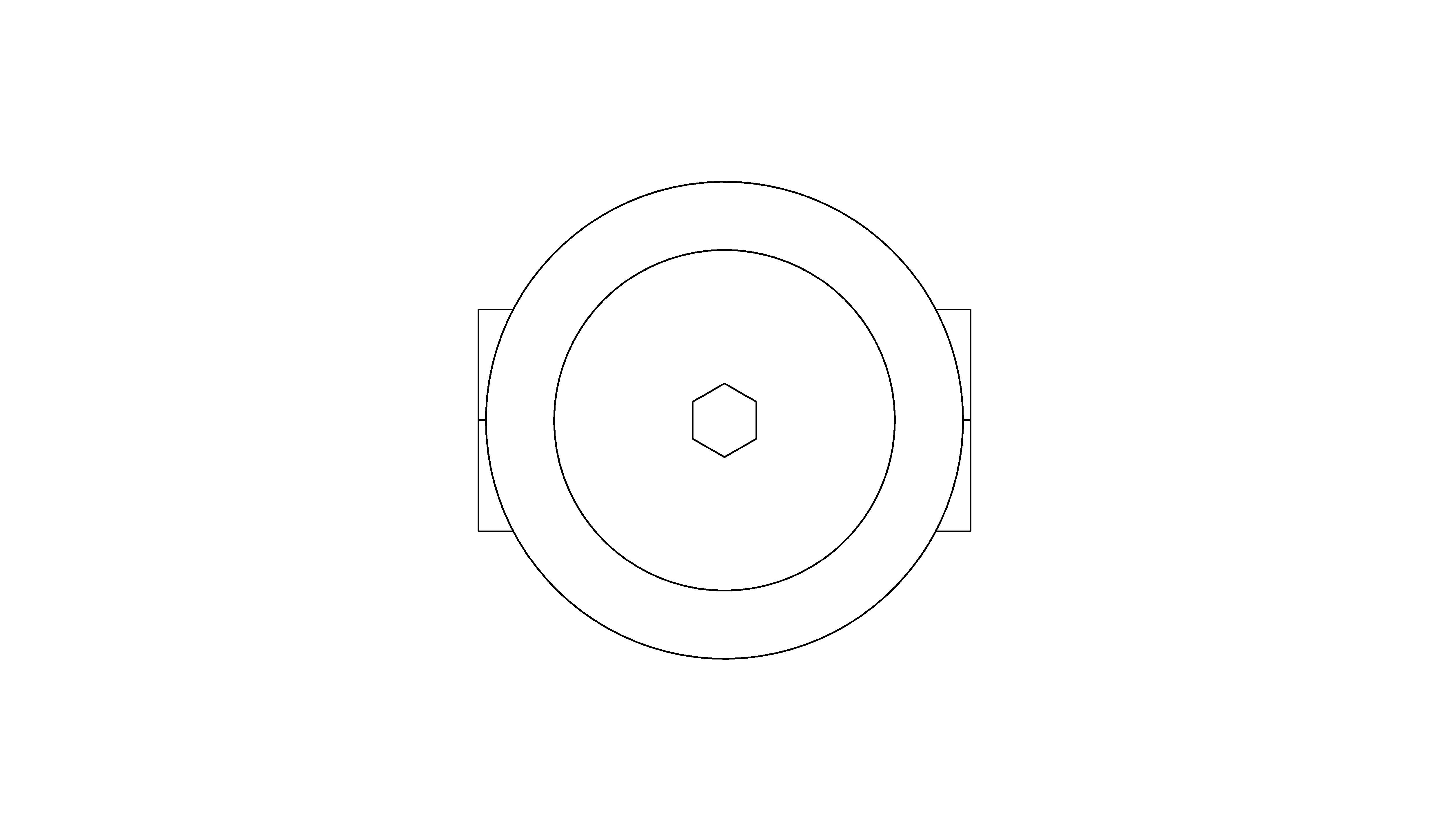

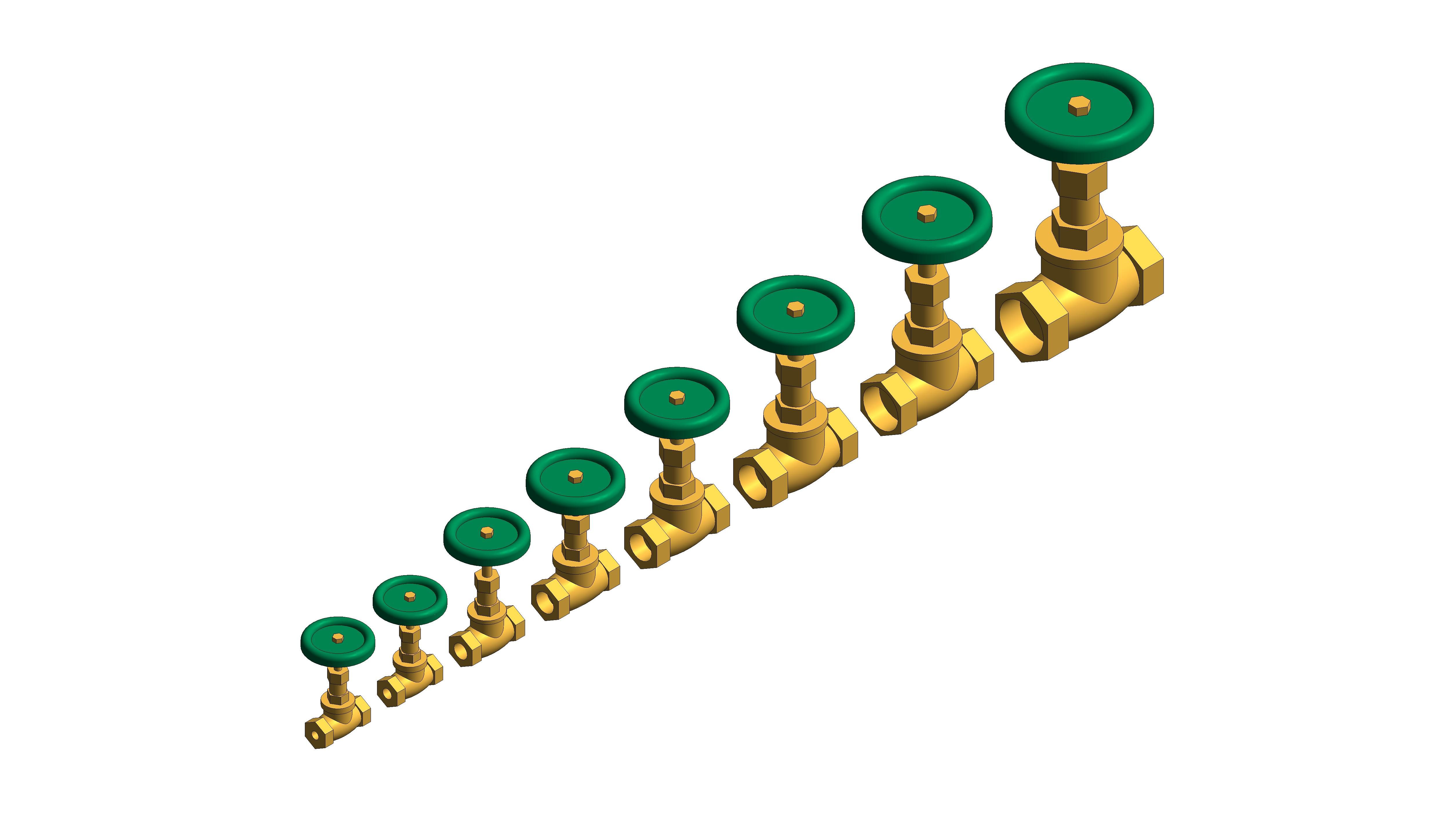

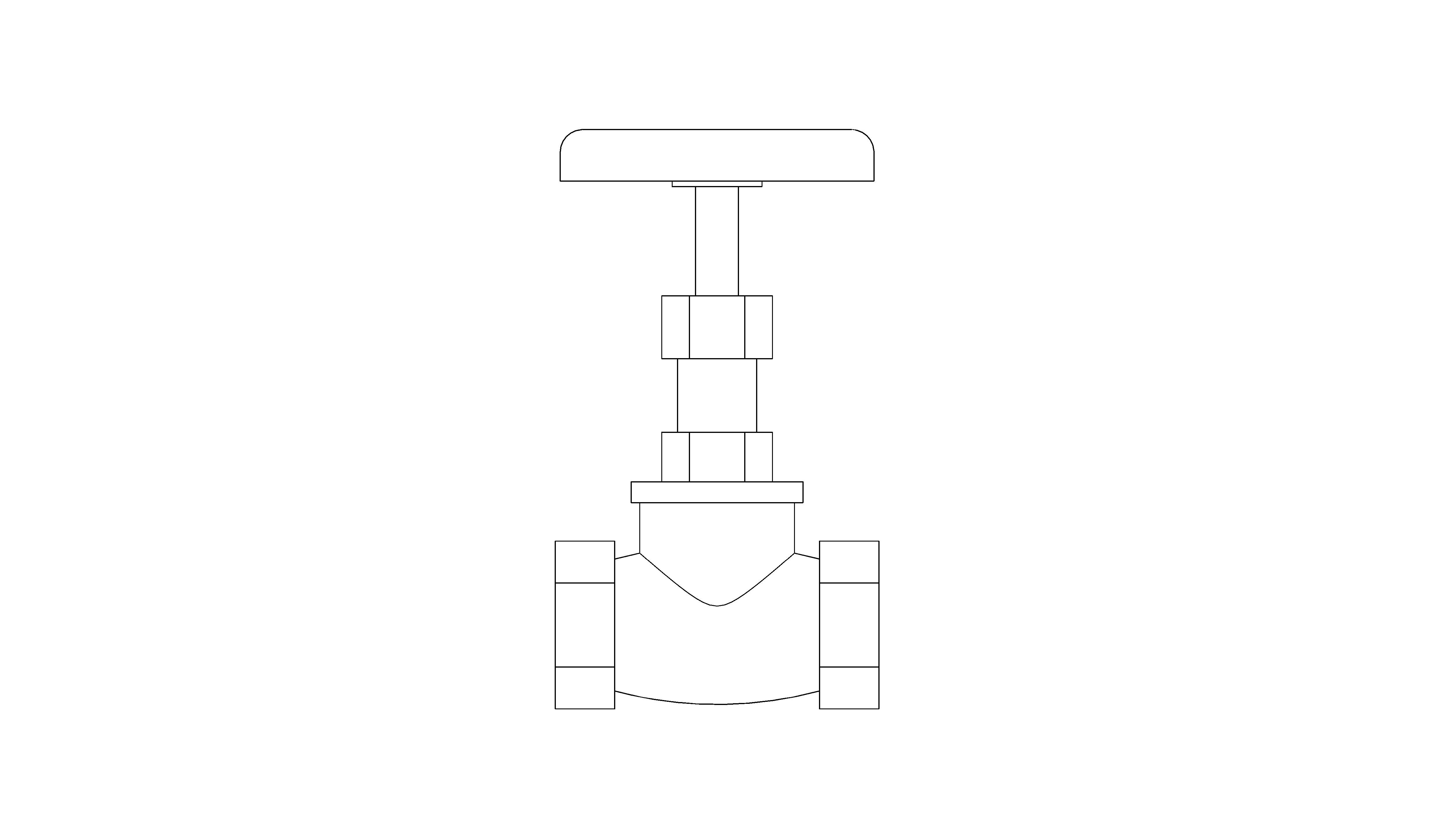

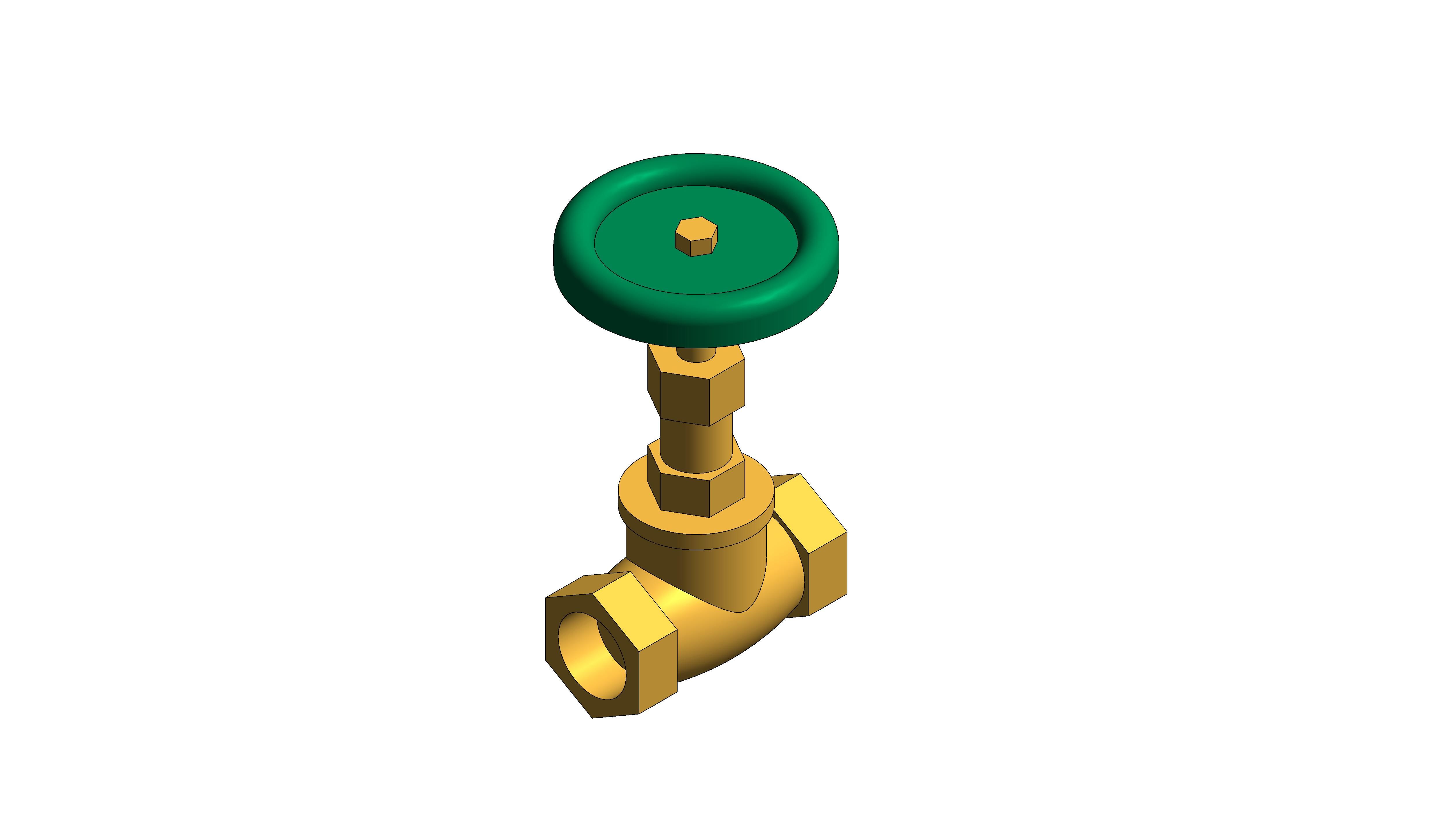

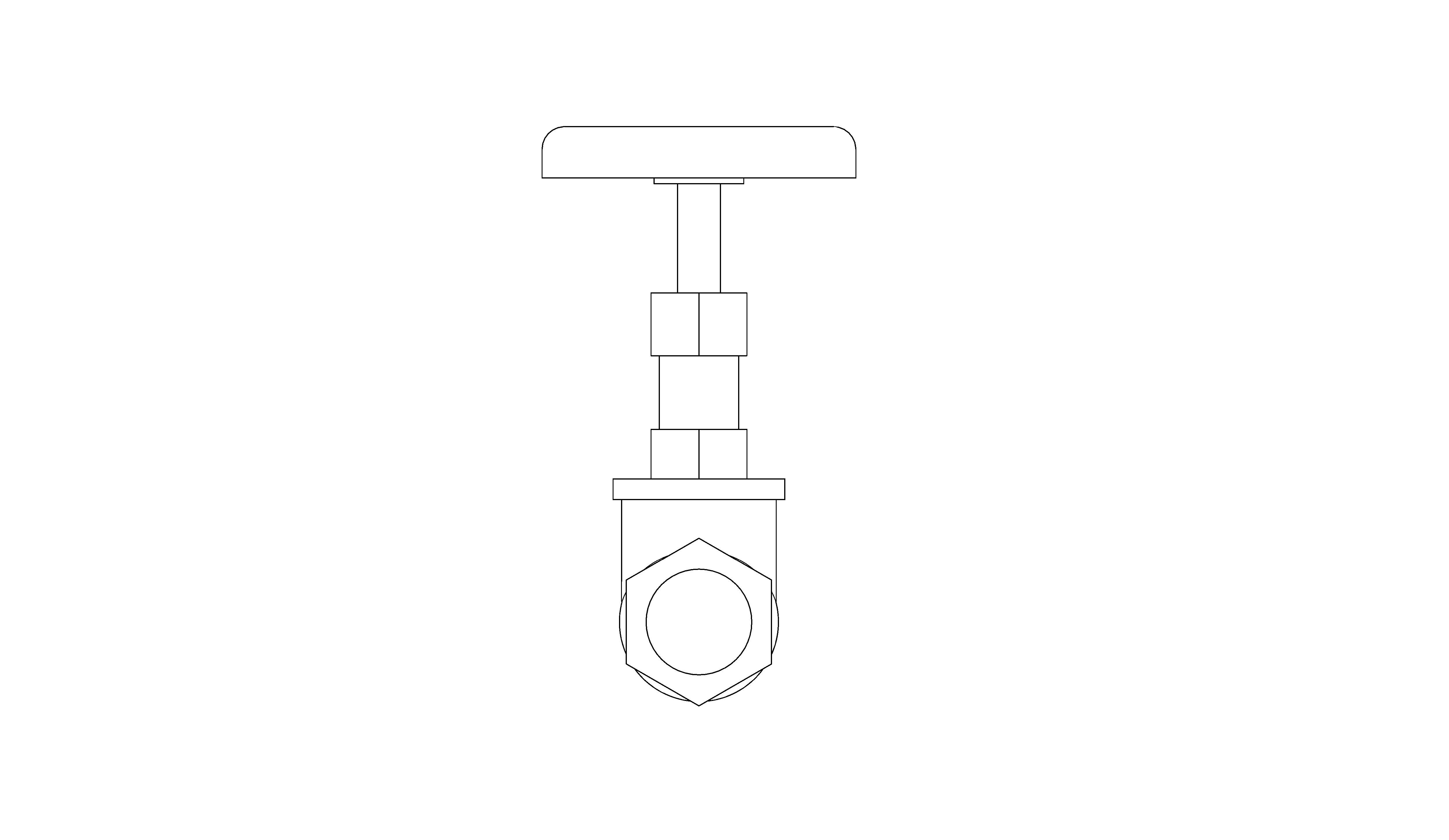

Description

PN32 Series B Globe Valve - Bronze

High quality bronze body with robust spherical shape.
Rising stem and screwed bonnet.
Assures flow regulation/control.
Suitable for high pressures up to 32 bar.

Object Data

1 Revision

Last Updated

30/10/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

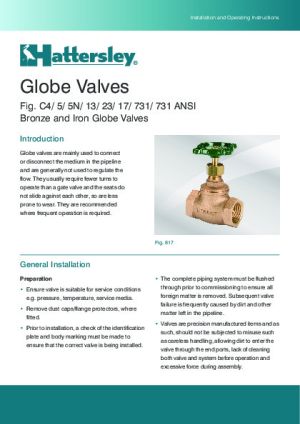

Installation Guide

Product Literature

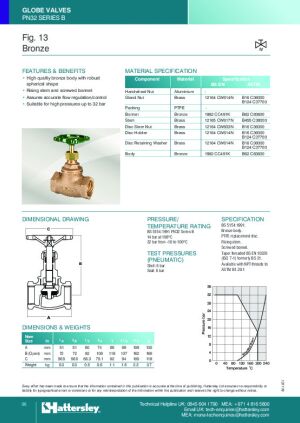

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/fig-13-globe-valve-bronze/document/object-user-guide
a18.6 mm
A106.0 mm
Accessibility Performancen/a
Assembly CodeD30
Asset TypeFixed
b22.0 mm
B170.0 mm
BIM Object NameHattersley_GlobeValve_Fig13
BodyGunmetal BS1400-LG2
BonnetForged Brass BS2872-CZ122
c150.0 mm
C105.0 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_16
Code Performancen/a
Colorn/a
Connection Radius20.0 mm
Connection Size40.0 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2023-09-11 T09:00:00
d28.4 mm
Default Elevation0.0 mm
DescriptionPN32 Bronze Globe Valve
Disk CaseForged Brass BS2872-CZ122
Disk NutForged Brass BS2872-CZ122
Disk Stem NutBrass BS2874-CZ121
Documentation Certificateswww.bimstore.co/products/fig-13-globe-valve-bronze/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fig-13-globe-valve-bronze/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fig-13-globe-valve-bronze/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fig-13-globe-valve-bronze/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fig-13-globe-valve-bronze/document/technical-data-sheet
Duration UnitYear
e25.5 mm
End ConnectionTaper threaded BS EN 10226 (ISO 7-1) formerly BS 21
Expected Life0
f40.1 mm
Features- High quality bronze body with robust spherical shape - Rising stem and screwed bonnet - Assures flow regulation/control - Suitable for high pressures up to 32 bar
Finishn/a
g6.6 mm
GlandBrass BS2874-CZ121
Gland NutForged Brass BS2872-CZ122
Gland PackingGraphited Non-Asbestos (CRANE SS6 AR)
Graden/a
h13.0 mm
HandwheelAluminium
Handwheel NutBrass BS2874-CZ121
Handwheel Offset19.1 mm
Hex Width 146.0 mm
i7.2 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.REGULATING
j63.1 mm
k23.7 mm
K Coefficient0
KeynoteS
l20.9 mm
Loss MethodK Coefficient
m18.6 mm
ManufacturerHattersley
Manufacturer NameHattersley
MaterialBronze
ModelFig. 13
Model NumberFig. 13
Model ReferenceFig. 13
n32.0 mm
NBS DescriptionCopper alloy globe valves
NBS Noten/a
NBS Object NameHattersley - Copper alloy globe valves
NBS Office Master Tagn/a
NBS Reference90-10-90/344
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
o13.0 mm
Production Year2023
Referenced Standardn/a
Renewable DiskMoulded Glass-Filled PTFE
Replacement Costn/a
Service Rating14 bar at 198°C; 32 bar from -10 to 100°C
Shapen/a
Sizen/a
Spare Partsn/a
StemBrass BS2874-CZ121
Test PressureBody: 48 bar hydraulic; Seat: 35.2 bar hydraulic
Type Comments1-1/2"
Type Name1-1/2"
URLwww.hattersley.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@hattersley.com
Weight2.20 kg
