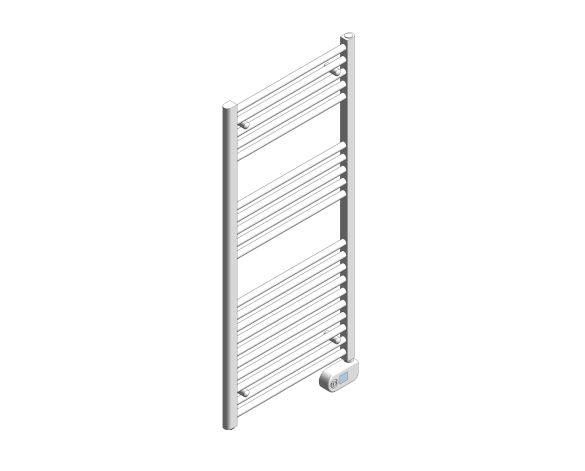

Fantasia Fluid Towel Radiator

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• Accessibility Performancen/a
• Additional Array2
• Additional First Offset0.00 mm
• Additional Gap Offset0.00 mm
• Assembly CodeD3020
• Asset TypeFixed
• Bar Length420.00 mm
• Bar Radius11.00 mm
• BIM Object NameStelrad_MechanicalEquipment_TowelRadiator_FantasiaFluid
• Bottom Array8
• Bracket Offset Bottom67.50 mm
• Bracket Offset Top67.50 mm
• Btu/hr1707
• Classification NameUniclass2015
• Classification ValuePr_70_60_36_26
• Class Of ProtectionII
• Code Performancen/a
• ColorAnthracite
• Constituentsn/a
• ControlsIntegrated Control Panel
• Created Byinfo@stelrad.com
• Created On2024-01-11 T09:00:00
• Default Elevation0.00 mm
• DescriptionThe Fantasia Fluid is an oil filled towel radiator that provides effective heating and practical drying performance with space for two towels. This popular towel rail has 22 horizontal round tubes and,semi-oval manifolds which together result in an efficient, versatile silhouette that also produces heat quickly and flexibly. The towel radiator is filled with a fluid which is heated up using the electrical element immersed in the fluid inside. This maintenance free and specially formulated fluid is designed to distribute the heat quickly and evenly across the towel radiator, which in turn emits the heat into your room through radiation.
• Documentation Certificateswww.bimstore.co/products/fantasia-fluid/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/fantasia-fluid/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/fantasia-fluid/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/fantasia-fluid/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/fantasia-fluid/document/technical-data-sheet
• Duration UnitYear
• Expected Life0
• Featuresn/a
• Finishn/a
• Gap 1233.50 mm
• Gap 2548.00 mm
• Gap 3413.00 mm
• Graden/a
• Heat Output500 W
• Heat SourceOil Filled
• Ifc Export AsIfcSpaceHeater
• Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
• Indice Of ProtectionIP34
• KeynoteT
• ManufacturerStelrad
• Manufacturer NameStelrad
• Materialn/a
• Mid Array5
• ModelFantasia Fluid
• Model NumberFantasia Fluid
• Model Reference1041mm(H) x 500mm(L) - Anthracite
• NBS DescriptionElectric heated towel rails
• NBS Noten/a
• NBS Object NameStelrad - Electric heated towel rails
• NBS Office Master Tagn/a
• NBS Reference90-40-35/385
• Nominal Depth0.00 mm
• Nominal Height1041.00 mm
• Nominal Length500.00 mm
• Offset Bottom Bar30.50 mm
• Offset Gap 168.00 mm
• Offset Gap 267.50 mm
• Offset Gap 367.50 mm
• Offset Top Bar30.50 mm
• Production Year2024
• Radiator FinishStelrad - Metal - Anthracite
• Referenced Standardn/a
• Replacement Costn/a
• Sizen/a
• Spare Partsn/a
• Top Array4
• Type Comments1041mm(H) x 500mm(L) - Anthracite
• Type Name1041mm(H) x 500mm(L) - Anthracite
• UINE004-1041-0500
• URLwww.stelrad.com
• Voltage230V - 50Hz
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsinfo@stelrad.com
• Weight10.80 kg
