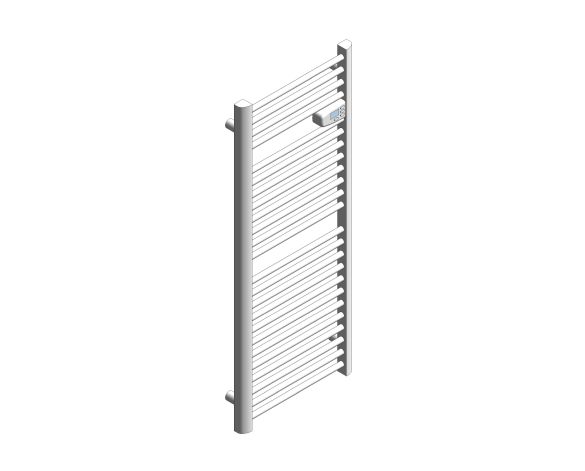

Fantasia Dry Towel Radiator

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• Accessibility Performancen/a
• Assembly CodeD3020
• Asset TypeFixed
• Bar Length451.60 mm
• Bar Radius11.00 mm
• BIM Object NameStelrad_MechanicalEquipment_TowelRadiator_FantasiaDry
• Bottom Array12
• Bottom Bracket Offset112.50 mm
• Btu/hr1707
• Classification NameUniclass2015
• Classification ValuePr_70_60_36_26
• Class Of ProtectionII
• Code Performancen/a
• ColorWhite
• Constituentsn/a
• Controller Offset244.50 mm
• ControlsIntegrated Control Panel
• Created Byinfo@stelrad.com
• Created On2024-01-11 T09:00:00
• Default Elevation0.00 mm

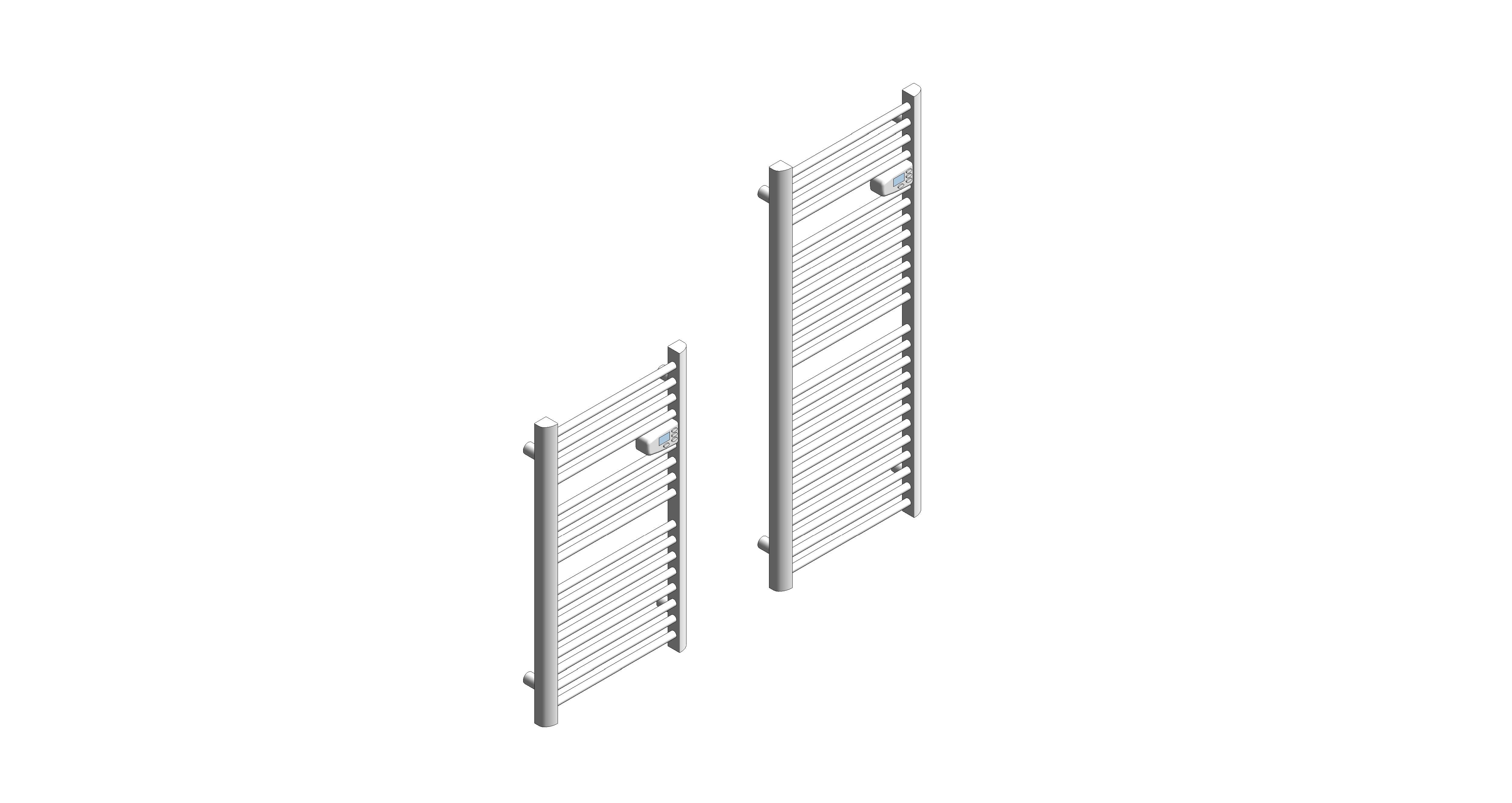

• DescriptionThe Fantasia Dry electric tubular towel radiator provides effective heating and practical drying performance for any kitchen or bathroom. The sleek straight white rail has 16 or 24 horizontal round tubes and semi-oval manifolds which together result in a smooth, versatile silhouette that also produces heat quickly and flexibly. The steel manifolds and aluminium tubes are heated via internal electric elements, benefitting from fast and efficient green heat to warm up. This is a greener more environmentally friendly option with simple installation and maintenance.
• Documentation Certificateswww.bimstore.co/products/fantasia-dry/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/fantasia-dry/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/fantasia-dry/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/fantasia-dry/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/fantasia-dry/document/technical-data-sheet
• Duration UnitYear
• Expected Life0
• Featuresn/a
• Finishn/a
• Gap 1244.50 mm
• Gap 2703.50 mm
• Graden/a
• Heat Output500 W
• Heat SourceDry - Electric Element
• Ifc Export AsIfcSpaceHeater
• Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
• Indice Of ProtectionIP24
• KeynoteT
• ManufacturerStelrad
• Manufacturer NameStelrad
• Materialn/a
• Mid Array8
• ModelFantasia Dry
• Model NumberFantasia Dry
• Model Reference980mm(H) x 540mm(L)
• NBS DescriptionElectric heated towel rails
• NBS Noten/a
• NBS Object NameStelrad - Electric heated towel rails
• NBS Office Master Tagn/a
• NBS Reference90-40-35/385
• Nominal Depth0.00 mm
• Nominal Height980.00 mm
• Nominal Length540.00 mm
• Offset Bottom Bar40.50 mm
• Offset Gap 151.00 mm
• Offset Gap 251.00 mm
• Offset Top Bar40.50 mm
• Production Year2024
• Radiator FinishStelrad - Metal - White
• Referenced Standardn/a
• Replacement Costn/a
• Sizen/a
• Spare Partsn/a
• Top Array4
• Top Bracket Offset112.50 mm
• Type Comments980mm(H) x 540mm(L)
• Type Name980mm(H) x 540mm(L)
• UINE006-0980-0540
• Unit Height1356.00 mm
• URLwww.stelrad.com
• Voltage230V - 50Hz
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsinfo@stelrad.com
• Weight6.30 kg
