EURO CERAMIC Wash Basin (102435SH00)

by GROHE

Download Add to collection

Description

Product Number - 102435SH00

EAN - 4067393034575

Colour - Alpine White

PRODUCT MAIN FEATURES

wall hung
1 hole punched
with overflow
450 x 385 mm
with antibacterial glazing HyperClean
wall fixings not included
sanitary ware
distance between installation holes: 160 mm

Product Page - https://www.grohe.co.uk/en_gb/hand-rinse-basin-45-102435SH00.html

Object Data

1 Revision

Last Updated

31/10/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

Product Data Sheet

Object metadata

_AuthorSM 205
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/ff30bce5-cb58-4f32-896a-0bd04c9a0dcc/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameGrohe_EUROCERAMIC_WashBasin_102435SH00
Classification NameUniclass2015
Classification ValuePr_40_20_96_96
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
Coloralpine white
Constituentsn/a
Cradle To Cradle CertificationN/A
Created Byinfo-uk@grohe.com
Created On2025-10-28T:09:00:00
CW ConnectionNo
CWFU4.5
Default Elevation0 mm
Descriptionwall hung 1 hole punched with overflow 450 x 385 mm with antibacterial glazing HyperClean wall fixings not included sanitary ware distance between installation holes: 160 mm

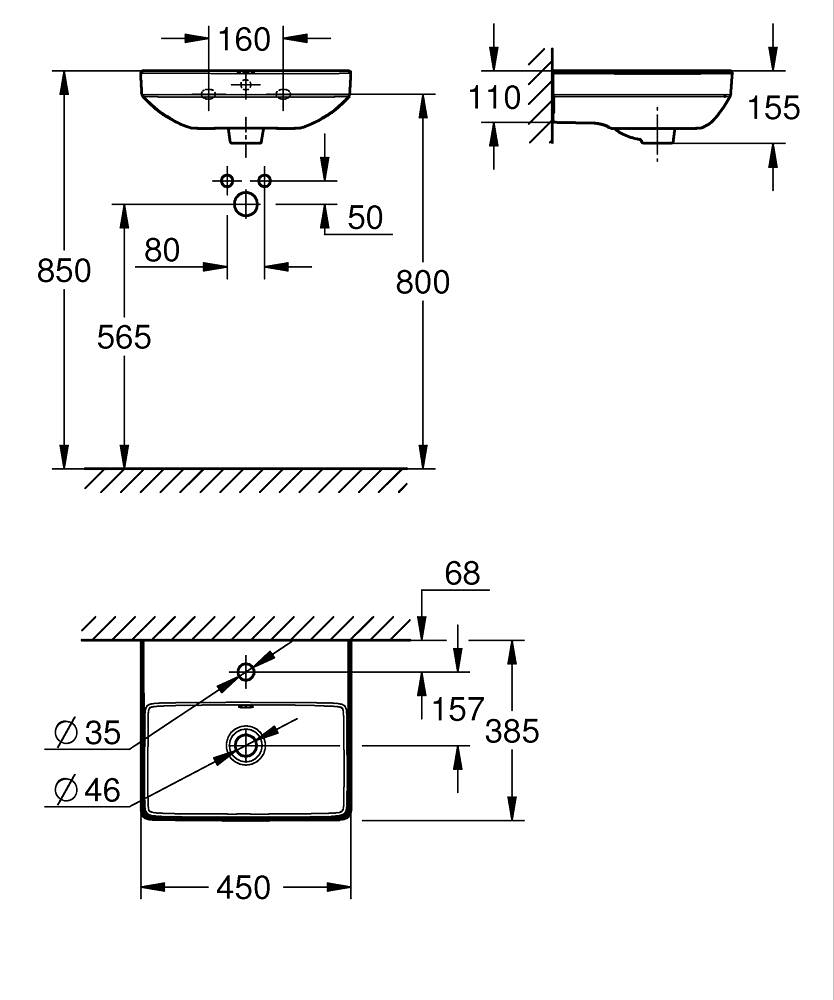

Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/2000/2200/2240/2246/2246845/1280/2246845.jpg
Documentation Certificateswww.bimstore.co/products/ff30bce5-cb58-4f32-896a-0bd04c9a0dcc/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/ff30bce5-cb58-4f32-896a-0bd04c9a0dcc/document/installation-guide
Documentation Literaturewww.bimstore.co/products/ff30bce5-cb58-4f32-896a-0bd04c9a0dcc/document/product-literature
Documentation Maintenancewww.bimstore.co/products/ff30bce5-cb58-4f32-896a-0bd04c9a0dcc/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/ff30bce5-cb58-4f32-896a-0bd04c9a0dcc/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000003Hanging
EF000007White
EF000040155
EF000049385 mm
EF000051Other
EF000455false
EF001257Other
EF002169Ceramics
EF002442Plug bolts
EF004567450
EF005645None
EF006009false
EF010046false
EF010047false
EF010048false
EF011021false
EF011022false
EF0116491
EF011650false
EF011666150 mm
EF013670not relevant
EF015606true
EF020348true
EF020361Centre
EF020704false
EF0207061
EF020707false
EF020708None
EF020709true
EF02071046 mm
EF021202false
EF021203Back side
EF0212041
EF021206false
EF021207false
EF021208false
EF021209false
EF021210false
EF021587false
EF023788false
EF023789true
EF023790true
EF023791false
EF024897not relevant
Expected Life0
Featureswall hung 1 hole punched with overflow 450 x 385 mm with antibacterial glazing HyperClean wall fixings not included sanitary ware distance between installation holes: 160 mm
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com/awards
HW ConnectionNo
HWFU4.5
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.SINK
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
Model102435SH00
Model Number102435SH00
Model Referencewashbasins (ceramics)
NBS DescriptionWall-hung washbasins
NBS Noten/a
NBS Object NameGrohe - Wall-hung washbasins
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkn/a
Primary MaterialGrohe_AlpineWhite
Product Descriptionconsisting of: horizontal 435 mm shower arm exposed SmartControl thermostat with metal housing allows change between: head shower Rainshower Aqua Duo square 400 x 230 mm, black acrylic spray plate swing angle 0° - 30° spray patterns: GROHE PureRain, ActiveRain hand shower Rainshower Aqua 130 (101 676), black acrylic spray plate spray patterns: GROHE Rain, Rain+ and ActiveMassage adjustable in height with gliding element initial Rainshower Aqua Pure unit (101 672 9990) enclosed shower hose 1750 mm GROHE Rainshower Aqua Pure removes chlorine and odor (hand shower) GROHE SmartTip showering spray selection via push of a ring GROHE Water Saving - Less water, perfect flow maximum flow rate (at 3 bar): 8.7 l/min GROHE SmartControl with recessed metal buttons, push for ON-OFF, turn for volume adjustment from GROHE Water Saving to full flow GROHE ProGrip Metal with knurl structure GROHE TurboStat compact cartridge with wax thermoelement GROHE SafeStop safety button at 38°C GROHE SafeStop Plus optional temperature limiter at 43°C included integrated GROHE EasyReach shower tray (black glass) GROHE DreamSpray perfect spray pattern GROHE Long-Life finish SpeedClean anti-limescale system Inner WaterGuide for a longer life TwistStop to prevent hose from twisting GROHE CoolTouch prevents scalding on hot surfaces suitable for instantaneous heaters from 18 kW/h minimum flow rate 5 l/min min. recommended pressure 1.0 bar internal 6 V lithium battery (42 886 000) type CR-P2 battery lifetime approx. 10 years replacement filter: Rainshower Aqua Pure unit (101 672 9990) optional: Rainshower Aqua glass shelf (101 677) to change the filter, a minimum distance of 20 cm from the right-hand side wall must be maintained
Product Documentation Linkwww.grohe.co.uk/en_gb/-102435SH00.html
Production Year2025
Product Short TextHand rinse basin 45
Product TypeEURO CERAMIC Wash Basin (102435SH00)
Referenced Standardn/a
Replacement Costn/a
Secondary Material<By Category>
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2200/2250/2254/2254179/original/2254179.pdf cdn.cloud.grohe.com/tpi/2000/2200/2250/2254/2254170/original/2254170.pdf
Type CommentsEURO CERAMIC Wash Basin (102435SH00)
Type NameEURO CERAMIC Wash Basin (102435SH00)
URLwww.grohe.co.uk/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo
WFU0
