Untied PN6 EPDM Rubber Bellows [00/0599]

by Valves Instruments Plus

Download Add to collection

Description

Untied PN6 EPDM Rubber Bellows, Galvanised Steel Flanges, WRAS Approved.

Object Data

2 Revision

Last Updated

24/06/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

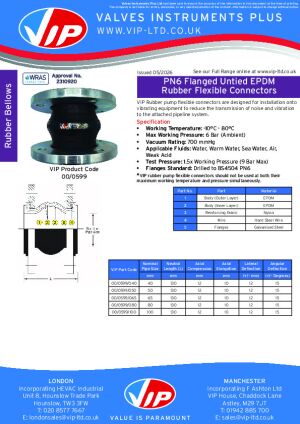

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAA
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/2c064506-46e8-4b18-81a2-90b781d59a45/document/object-user-guide
Accessibility Performancen/a
Applicable FluidsWater, Warm Water, Sea Water, Air, Weak Acid
Assembly CodeDN32
Asset TypeFixed
BIM Object NameVIP_RubberBellow_PN16_(00-0600)
Classification NameUniclass 2015
Classification ValuePr_80_77_94_74
Code Performancen/a
ColorGrey
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2024-11-04T09:00:00
Default Elevation0 mm
DescriptionVIP rubber pump flexible connectors are designed for installation onto vibrating equipment to reduce the transmission of noise and vibration to the attached pipeline system. They are suitable for use with potable water, warm water, sea water, air and weak acid. VIP rubber pump flexible connectors should not be used at both their maximum working temperature and pressure simultaneously.
DN32 mm
Documentation Certificateswww.bimstore.co/products/2c064506-46e8-4b18-81a2-90b781d59a45/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/2c064506-46e8-4b18-81a2-90b781d59a45/document/installation-guide
Documentation Literaturewww.bimstore.co/products/2c064506-46e8-4b18-81a2-90b781d59a45/document/product-literature
Documentation Maintenancewww.bimstore.co/products/2c064506-46e8-4b18-81a2-90b781d59a45/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/2c064506-46e8-4b18-81a2-90b781d59a45/document/technical-data-sheet
Duration UnitYears
Expected Life0
Export Type to IFC AsIfcPipeFitting
Featuresn/a
Finishn/a
Flange Diameter120 mm
Flange End Radius33 mm
Flange Holes Center90 mm
Flange Holes Diameter18 mm
Flange Length14 mm
Flanges StandardDrilled to BS4504 PN6
Graden/a
Holes Angle45.00 °
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteS
L13 mm
Length130 mm
ManufacturerVIP
Manufacturer NameVIP
Materialn/a
Max Working Pressure6 Bar (Ambient)
Max Working Temperature-10°C to 80°C
Model00/0599 PN6 EPDM Flanged Untied Rubber Flexible Connectors (WRAS Approved)
Model Number00-0599-32
Model ReferenceRubber Bellows
NBS DescriptionRubber bellows
NBS Noten/a
NBS Object NameVIP - Rubber bellows
NBS Office Master Tagn/a
NBS Reference90-90-95/390
No Holes4
Nominal Depth120 mm
Nominal Height120 mm
Nominal Length130 mm
Pipe Inside Diameter31 mm
Pipe Inside Radius15 mm
Pipe Outside Diameter40 mm
Pipe Outside Radius20 mm
Primary MaterialVIP - Stainless Steel
Production Year2025
Radius R125 mm
Referenced Standardn/a
Replacement Costn/a
Rubber MaterialVIP - EPDM
Shapen/a
SizeDN32
Spare Partssales@vip-ltd.co.uk
Test Pressure1.5 x working pressure (9 Bar Max)
Type Comments00-0599-32
Type IFC Predefined TypeIfcPipeFittingType
Type NameDN32
URLwww.vip-ltd.co.uk/Expansion/Rubber_Bellows/00_0599/
Vacuum Rating700 mmHg
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
WRAS ApprovalYes
