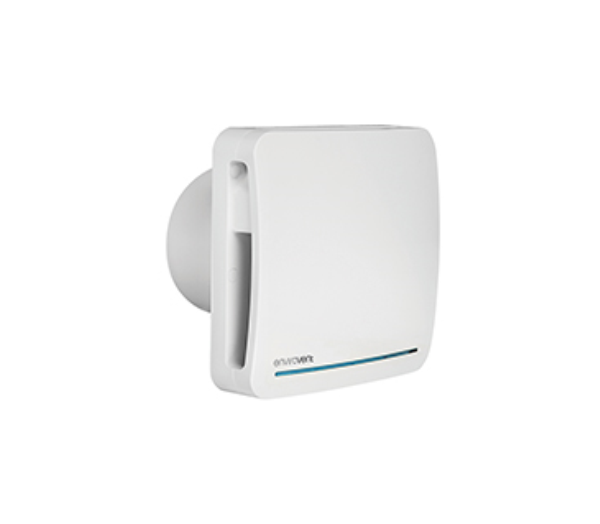

The ECO dMEV has been designed and developed to offer the market a constant volume, continuously running decentralised extract fan to achieve the lowest power consumption, the lowest noise and the lowest life-cycle costs.

Key Features

  • 2 Year Warranty
  • Adjustable Run-On Timer
  • IP57 SELV
  • Quiet Operation
  • Adjustable Humidity Sensor
  • IPX4 Rated

One Fan For All Situations

Building on the principles of the hugely successful and award-winning EnviroVent Filterless Extract Fan the ECO dMEV is ideal for all domestic applications, WCs, bathrooms, utility rooms and kitchens. It is a 100mm constant volume, continuously running extract fan, which can be fitted in wall, ceiling or panel installations.

ECO Friendly & Ultra Quiet

Fitted with a DC motor mounted on silent elastic blocks, the fan delivers incredibly silent running below 20 dB(A) with exceptional performance and stylish features. Fully complying with Building Regulations and SAP PCDB Listed, the ECO dMEV ensures a significant contribution to maximising the reward in SAP for ventilation.

Stylish Design

Designed with style in mind, the ECO dMEV adds a touch of elegance to the modern bathroom or kitchen without compromising on performance or quality. The fan is supplied with smart interchangeable front panel trims in four colours.

Lowest Life-Cycle Costs

The ECO dMEV has been designed for ease of maintenance, achieving the lowest life-cycle costs.

Easy Commissioning

The fan is easily commissioned at installation to be set at one of 5 trickle speed settings ranging from 4-13 l/s to meet the airflow requirements for specific applications and ensure the lowest energy consumption down to 1.5 Watts.

Low Voltage Bathroom Extractor Fan

For extra safety, the ECO dMEV is also available in a low voltage 17V version. In addition to the standard ECO dMEV 17V, which can be boosted by an external switch, the same three models are available as the 230V version: the ECO dMEV 17V timer option, humidity sensor option with timer or pullcord with timer and humidity sensor.

‘Sensorless’ Technology

The EnviroVent ECO dMEV incorporates a unique “sensorless” constant volume technology. Using intelligent microprocessor controls and software, the centrifugal fan works in direct correlation with any resistance in the ductwork.

When it senses any resistance it automatically adjusts itself to ensure that the commissioned airflow is always delivered and maintained.

This means the fan is also self-commissioning - all the installer needs to do is set the unit to the required airflow, screw it to the wall and connect it up. It will commission itself automatically and perform over and above building regulations.

Powerful Centrifugal Performance

Meticulous research and development has gone into the design of the ECO dMEV to be able to incorporate a high powered, forward curved, “sensorless” constant volume centrifugal fan into the smallest of spaces.

Most small dMEV’s this size use an axial impeller. Axial fans can perform well if they encounter no resistance, however by adding any amount of pressure, they can struggle to perform.

As the inlet of the ECO dMEV is oval and not round like other fans, this creates space for the dual inlet centrifugal motor assembly, meaning we can fit a centrifugal fan inside a tiny footprint.

Product Codes

Product Code

Product Name

Product Description

ECO DMEV S *ECO dMEV SStandard Model
ECO DMEV T *ECO dMEV TAdjustable run-on timer model
ECO DMEV HT *ECO dMEV HTAdjustable timer and humidity sensor model
ECO DMEV HTP *ECO dMEV HTPAdjustable timer, humidity sensor and pull cord model
