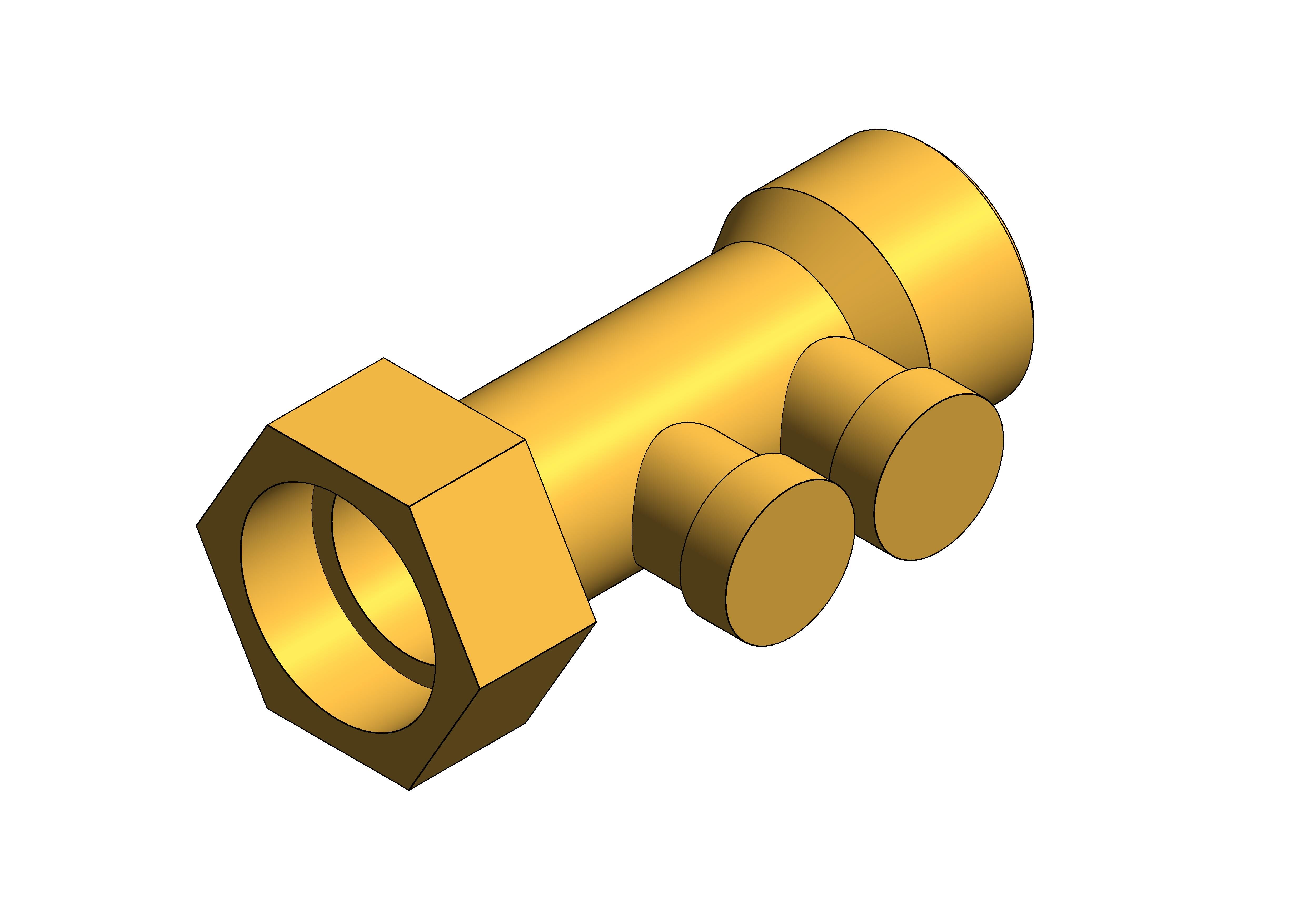

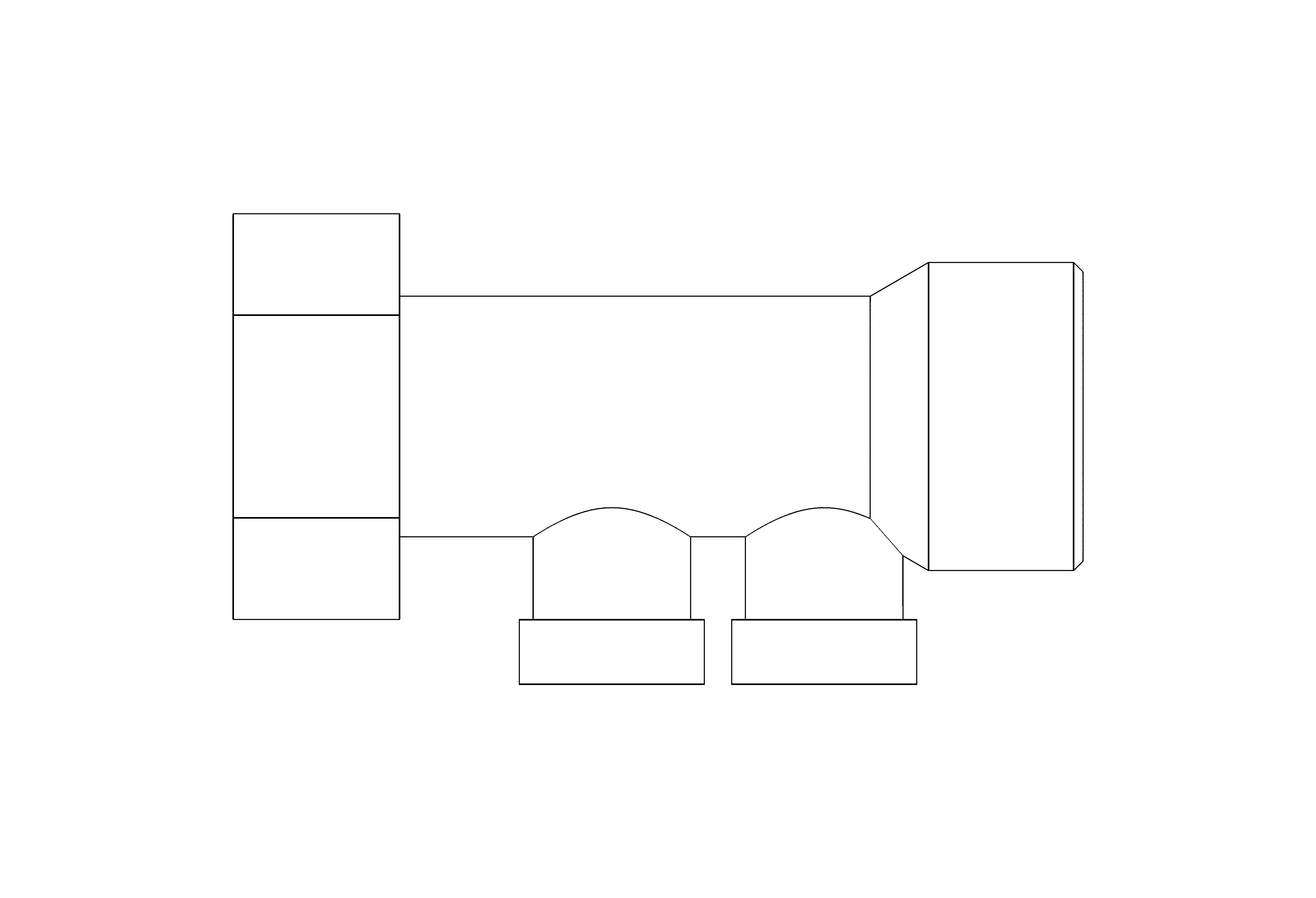

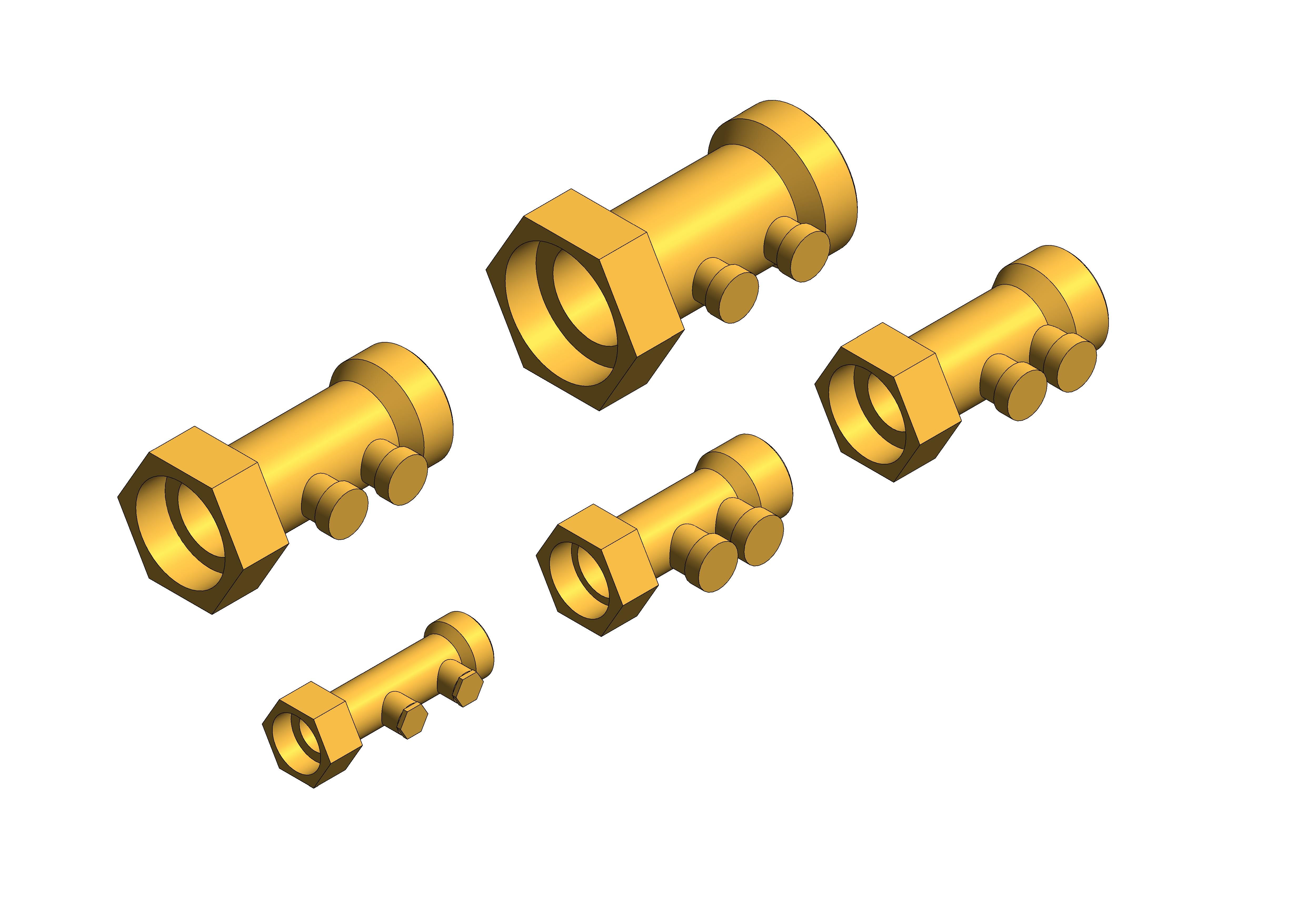

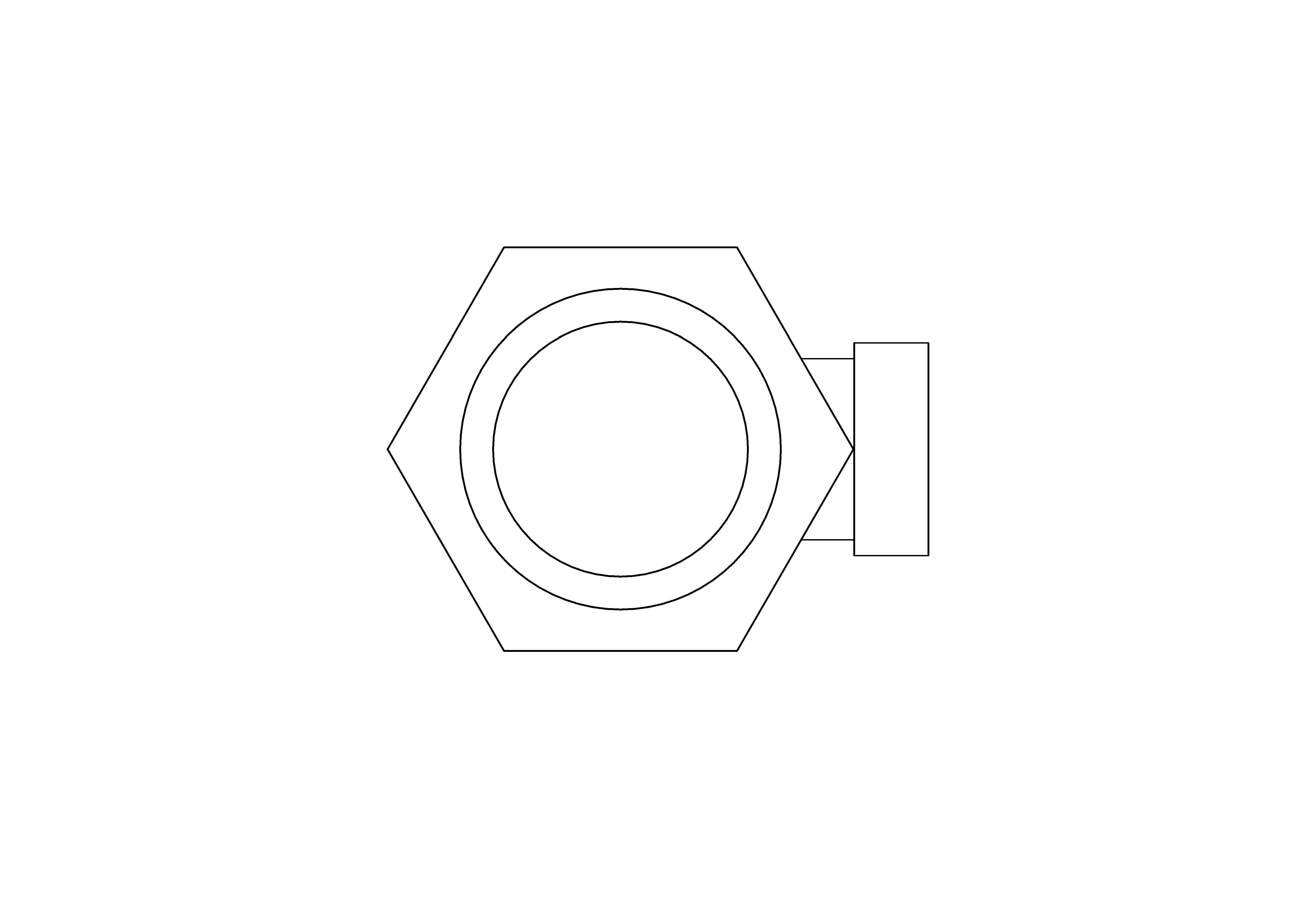

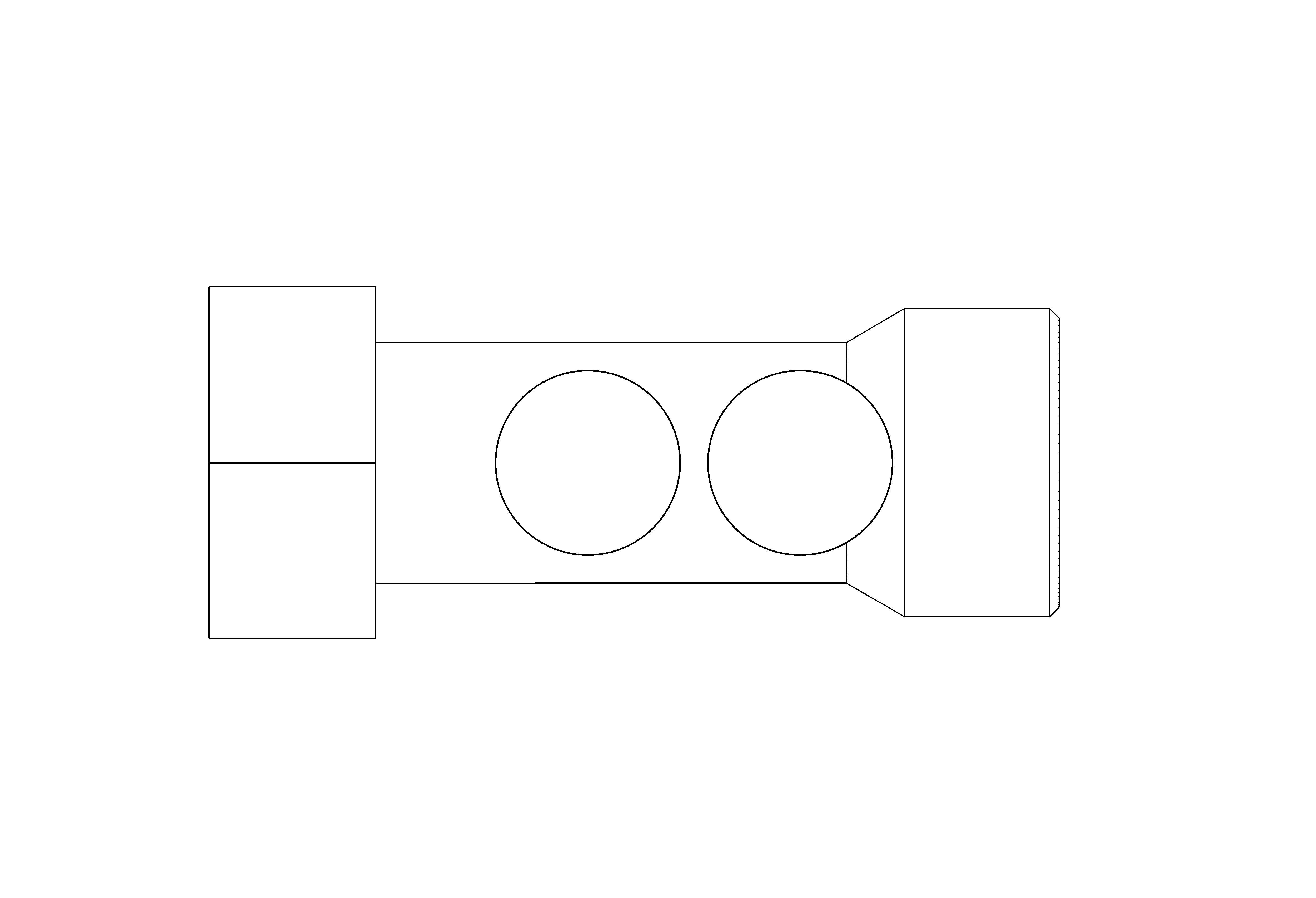

EA 251 - Antipollution Brass Check Valve

by Watts Water Technologies EMEA B.V.

Download Add to collection

Description

EA 251 Controllable anti-pollution valve - protection type EA, by SOCLA, A WATTS Brand.

Application: all drinking water networks protection: building, water distribution, pumping, etc.

Key Features

Quiet operation,
Low head loss.
Totally watertight even with very low back pressure.
Mounting in any position

Key Specs

Model with swivel nut / Male fittings for direct mounting after meter.
Brass body with 2 bosses F 1/4" (except DN15 F 1/8")
Max temperature: 90°C
Max. pressure: 10bar

Object Data

1 Revision

Last Updated

08/03/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/ea-251-anti-pollution-brass-check-valve/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2040100
Asset TypeFixed
BIM Object NameWATTS_Valve_AntiPollutionBrassCheckValve_EA251
Classification NameUniclass2015
Classification ValuePr_65_54_94_03
Code Performancen/a
ColorYellow
Connection TypeFree nut / M - 3/4"
Constituentsn/a
Created Bycontact@wattswater.com
Created On2020-11-16T09:00:00
D116 mm
D220 mm
D326 mm
DescriptionEA 251 antipollution brass check valve DN15, Free nut / M - 3/4", Brass plugs 1/8", Body Brass, PN10.
DN15 mm
Documentation Certificateswww.bimstore.co/products/ea-251-anti-pollution-brass-check-valve/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/ea-251-anti-pollution-brass-check-valve/document/installation-guide
Documentation Literaturewww.bimstore.co/products/ea-251-anti-pollution-brass-check-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/ea-251-anti-pollution-brass-check-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/ea-251-anti-pollution-brass-check-valve/document/technical-data-sheet
Duration UnitYears
EAN Code3660770136636
ETIM ClassEC011469
Expected Life0
FeaturesBrass plugs 1/8"
FinishBrass
Fitting MaterialBrass, Soft Yellow
Graden/a
Hex 116 mm
Hex 214 mm
Hex Size30 mm
Hex VisYes
Ifc Export AsIfcDistributionControlElementType
Ifc Export TypeIfcFlowInstrumentType
KeynoteS12
L139 mm
L228 mm
Length87 mm
ManufacturerSOCLA
Manufacturer NameSOCLA
MaterialBrass
ModelEA 251 Anti-pollution Brass Check Valve
Model Number149B2111
Model ReferenceEA 251 Anti-pollution Brass Check Valve
NBS DescriptionAnti-pollution check valves
NBS Object NameWATTS - Anti-pollution check valves
NBS Office Master Tagn/a
NBS Reference90-12-90/385
Nominal Depth30 mm
Nominal Height34 mm
Nominal Length88 mm
Operating Temperature-10 Degree C to 80 Degree C
Outlet Dia13 mm
Outlet Dia 212 mm
Outlet L20 mm
Outlet L22 mm
PFA Water10
Production Year2020
Reference149B2111
Referenced Standardn/a
Replacement Costn/a
RevolveNo
S14 mm
Shapen/a
Size88mm(L) x 30mm(D) x 34mm(H)
Socket Depth 19 mm
Socket Depth 29 mm
Socket Dia 124 mm
Spare Partsn/a
Thread Inch1/2
Type CommentsEA 251 Anti-pollution brass check valve DN15
Type NameEA 251 Anti-pollution brass check valve DN15
URLsocla.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partscontact@wattswater.com
Weight0.19 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
