DZR Brass 'M' Profile Press Ball Valve [00/2070]

by Valves Instruments Plus

Download Add to collection

Description

DZR Brass 'M' Profile Press Full Bore Ball Valve, Quarter Turn, Red & Blue Levers, WRAS Approved.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

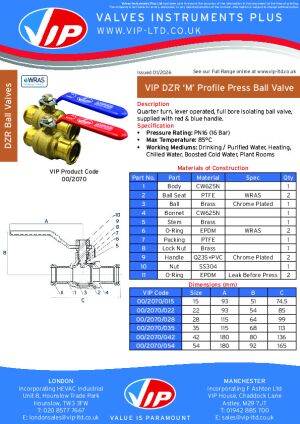

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorEL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version0
_Created ByEL
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/6dda228b-b899-436a-a64a-461cc13a6477/document/object-user-guide
A51 mm
A248 mm
Accessibility Performancen/a
Assembly CodeDN15
Asset TypeFixed
B83 mm
B238 mm
B393 mm
BIM Object NameVIP_DZRMpressBallValve_(00_2070)
BodyVIP - DZR Brass
Body 15 mm
Body 25 mm
Body Thickness32 mm
C75 mm
Centre Body Width21 mm
Classification NameUniclass 2024
Classification ValuePR_65_54_95_06
Code Performancen/a
ColorYellow
Compression Nut Width20 mm
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-03-26
D15 mm
Default Elevation0 mm
DescriptionQuarter turn, lever operated, full bore isolating ball valve available with red or blue handle.
Documentation Certificateswww.bimstore.co/products/6dda228b-b899-436a-a64a-461cc13a6477/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/6dda228b-b899-436a-a64a-461cc13a6477/document/installation-guide
Documentation Literaturewww.bimstore.co/products/6dda228b-b899-436a-a64a-461cc13a6477/document/product-literature
Documentation Maintenancewww.bimstore.co/products/6dda228b-b899-436a-a64a-461cc13a6477/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/6dda228b-b899-436a-a64a-461cc13a6477/document/technical-data-sheet
Duration UnitYears
End Connections'M' Profile Press
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handle Thickness3 mm
Handle Width14 mm
Inner Nut Size22 mm
Inner Nut Thickness2 mm
KeynoteS
LeverVIP - Stainless Steel
Lever CoverVIP Blue
Lever Cover 15 mm
Lever Height50 mm
Lever height0 mm
ManufacturerVIP
Manufacturer NameVIP
Maximum Temperature85°C
Model00/2070 DZR 'M' Press Ball Valve
Model Number00/2070/015
Model ReferenceVIP DZR M Press Ball Valve
NBS Descriptionn/a
NBS Noten/a
NBS Object Namen/a
NBS Office Master Tagn/a
NBS Referencen/a
Nut Center7 mm
Nut End Radius29 mm
Nut Width58 mm
Open50 mm
Opening8 mm
Outer Nut3 mm
Pressure RatingPN16 (16 Bar)
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Ring5 mm
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
Type Comments00/2070/015 Blue
Type NameDN15
URLwww.vip-ltd.co.uk/
Valve Inner Width13 mm
Valve Width20 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
Working MediumsDrinking / Purified Water, Heating, Chilled Water, Boosted Cold Water, Plant Rooms
WRAS ApprovedYes
X22 mm
Y5 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
