Ductile Iron PN25 Dual Plate Non-Return Valve [00/2007]

by Valves Instruments Plus

Download Add to collection

Description

Ductile Iron PN25 Dual Plate Non-Return Valve, Stainless Steel Disc, Stem & Spring, EPDM Seat, WRAS Approved.

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

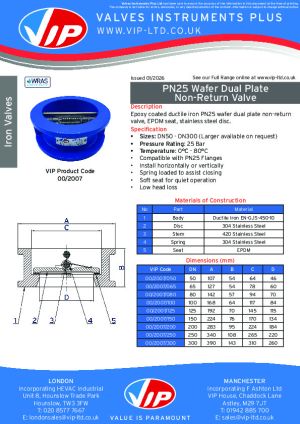

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAA
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/558d645e-35ac-42ef-9071-8067ceb83bfe/document/object-user-guide
Accessibility Performancen/a
Assembly CodeDN100
Asset TypeFixed
BIM Object NameVIP_NonReturnValve_PN25_(00-2007)
Classification NameUniclass2015
Classification ValuePr_65_54_30_12
Code Performancen/a
ColorBlue
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-01-13T09:00:00
D1104 mm
D226 mm
Default Elevation0 mm
DescriptionEpoxy coated cast iron PN25 wafer dual plate no-return valve, EPDM seat, stainless steel disc
DN100 mm
Documentation Certificateswww.bimstore.co/products/558d645e-35ac-42ef-9071-8067ceb83bfe/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/558d645e-35ac-42ef-9071-8067ceb83bfe/document/installation-guide
Documentation Literaturewww.bimstore.co/products/558d645e-35ac-42ef-9071-8067ceb83bfe/document/product-literature
Documentation Maintenancewww.bimstore.co/products/558d645e-35ac-42ef-9071-8067ceb83bfe/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/558d645e-35ac-42ef-9071-8067ceb83bfe/document/technical-data-sheet
Duration UnitYears
Expected Life0
Export Type to IFC AsIfcPipeFitting
Featuresn/a
Finishn/a
Fitting MaterialVIP - Cast Iron - Epoxy Coated Blue
Fitting Material 2VIP - Stainless Steel
Graden/a
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteS12
L11 mm
L27 mm
L313 mm
L49 mm
L56 mm
L64 mm
L719 mm
LD182 mm
LD2102 mm
Length64 mm
ManufacturerVIP
Manufacturer NameVIP
Materialn/a
Max Working Pressure25 Bar
Max Working Temperature-0°C to 80°C
Model00/2007 VIP Cast Iron Body Dual Plate Wafer Non-Return Valve With EPDM Seat, WRAS Approved
Model Number00-2007-100
Model ReferenceNon-return Valve Double Plate
NBS DescriptionCheck and non-return valves
NBS Noten/a
NBS Object NameVIP - Check and non-return valves
NBS Office Master Tagn/a
NBS Reference90-35-35/310
Nominal Depth168 mm
Nominal Height168 mm
Nominal Length64 mm
OD168 mm
Production Year2025
R17 mm
R23 mm
RD1117 mm
RD2143 mm
Referenced Standardn/a
Replacement Costn/a
ROS0 mm
SD248 mm
Shapen/a
SizeDN100
Spare Partssales@vip-ltd.co.uk
Thread Inch4
Type CommentsNon return valve double plate DN 100.
Type IFC Predefined TypeIfcPipeFittingType
Type NameDN100
URLwww.vip-ltd.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
WRAS ApprovalYes

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
