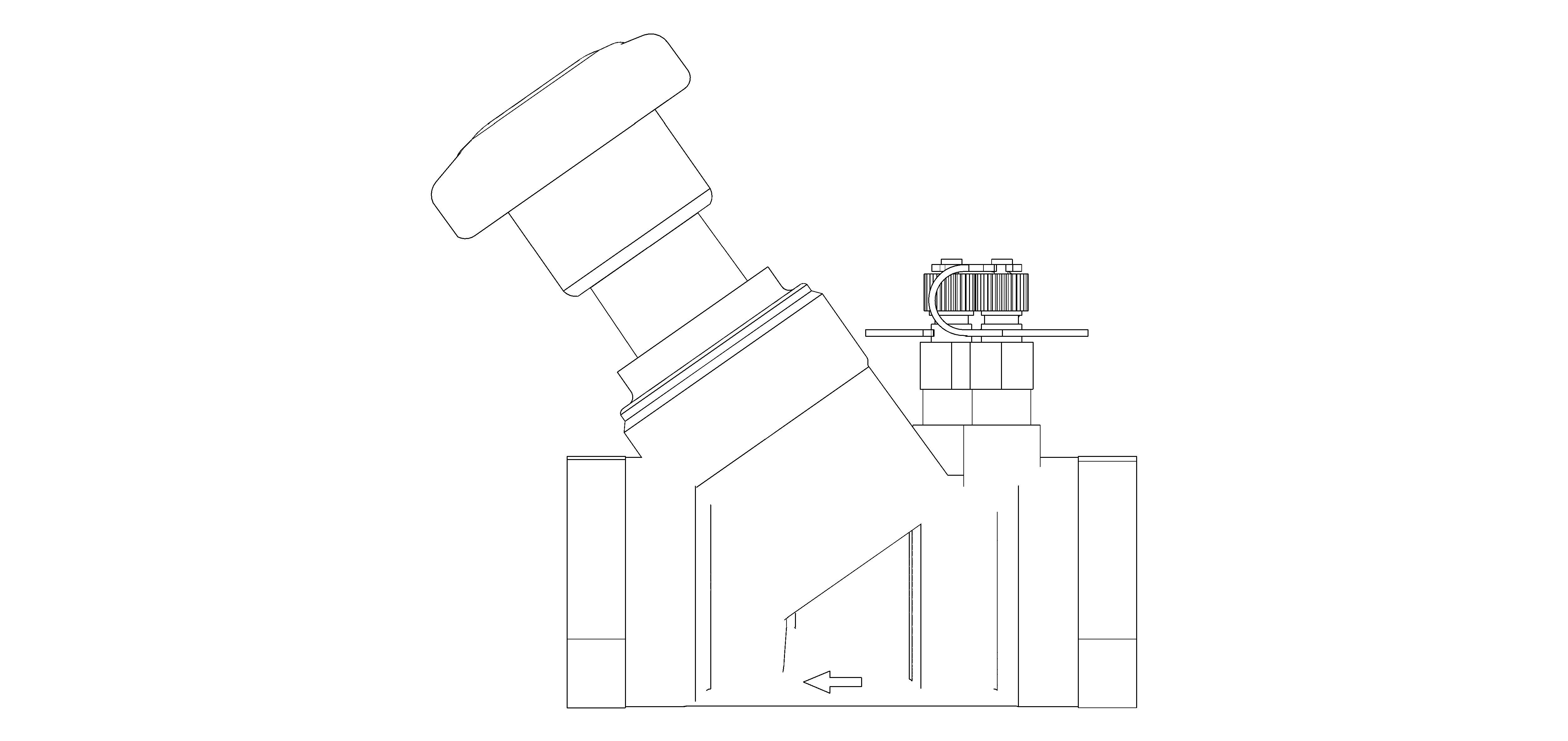

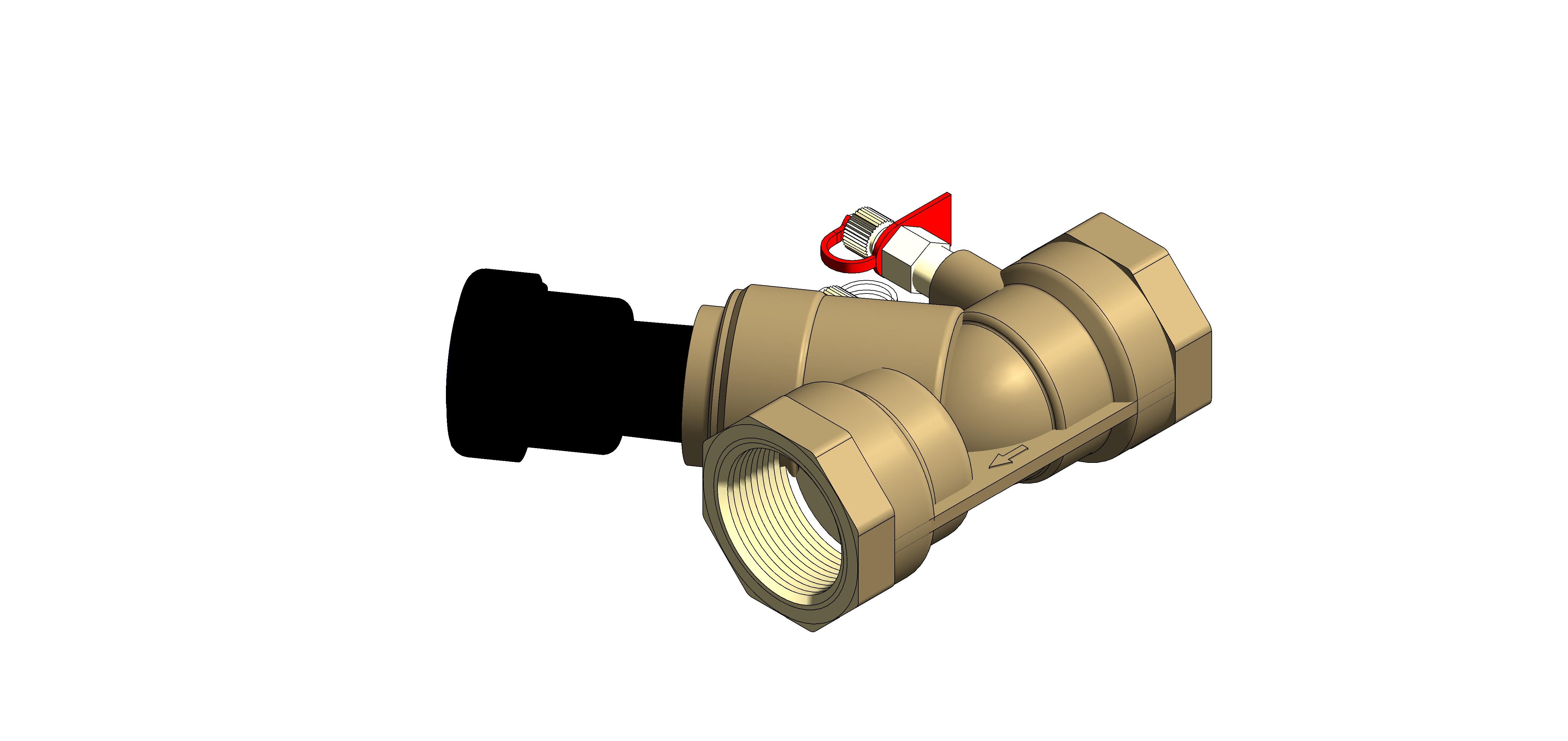

DBRV100016 - Fixed Orifice Double Reg Valves

by Reliance Valves

Download Add to collection

Description

DBRV100016 - Fixed Orifice Double Reg Valves

Object Data

1 Revision

Last Updated

07/05/2024

Available Software

EPD

Not Available

Accompanying literature

Installation Guide

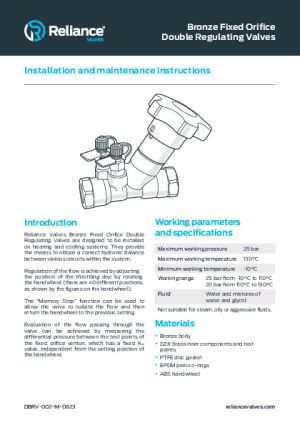

Maintenance Information

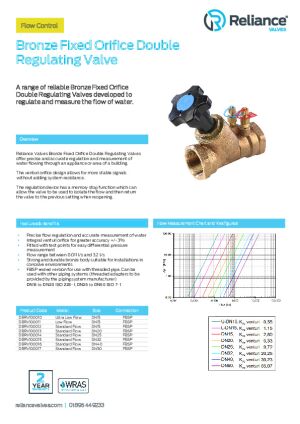

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorPeter Graham
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.rwc.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2090900
Asset TypeFixed
BIM Object NameRWC_FlowControl_FixedOrificeDoubleRegValves_DBRV100016
Classification NameUniclass2015
Classification ValuePr_65_54_95_26
Code Performancen/a
Colorn/a
Connector DescriptionDN40 1½" FBSP Fixed Orifice Bronze Double Reg Valve
Connector Diameter45 mm
Connector Height 10 mm
Connector Left Right0 mm
Constituentsn/a
Created Bytechnical@rwc.co.uk
Created On12-12-2023
Default Elevation0 mm
DescriptionFixed Orifice Double Regulating Valves for the regulation and measurment of flow in a system
Documentation Certificates--Link From Website--
Documentation Installation Guide--Link From Website--
Documentation Literature--Link From Website--
Documentation Maintenance--Link From Website--
Documentation Technical--Link From Website--
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Flow0.0 L/s
Graden/a
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingTypeEnum.Connector
K Coefficient30.23
KeynoteS
Loss MethodK Coefficient
ManufacturerReliance Worldwide Corporation (UK) Ltd.
Manufacturer NameReliance Worldwide Corporation (UK) Ltd.
Materialn/a
ModelDN40 1½" FBSP Fixed Orifice Bronze Double Reg Valve DBRV100016
Model NumberDBRV100016
Model ReferenceDBRV100016
NBS DescriptionDouble Regulating Valves
NBS Object NameRWC - Double Regulating Valves
NBS Office Master Tagn/a
NBS Reference90-10-90/356
Nominal Depth70 mm
Nominal Height154 mm
Nominal Length160 mm
Pressure Drop0.0 Pa
Production Year2023
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size160x70x154
Spare Partsn/a
Type CommentsDVBR100016
Type NameDN40 1½" FBSP Fixed Orifice Bronze Double Reg Valve
URLwww.rwc.co.uk
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnical@rwc.co.uk

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
