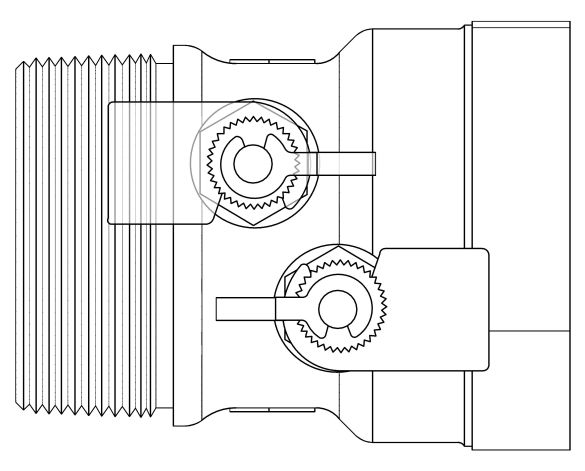

DBMS100008 - Metering Stations
Description
DBMS100008 - Metering Stations
Object Data
1 Revision
Last Updated
07/05/2024
Available Software
EPD
Not Available
Object metadata
- _AuthorPeter Graham
- _Bim Spec Guid0
- _BS Bible Version17
- _Created Bywww.rwc.co.uk
- _Current Revision1
- _Distributed Bywww.bimstore.co.uk
- Accessibility Performancen/a
- Assembly CodeD2090900
- Asset TypeFixed
- BIM Object NameRWC_FlowControl_MeteringStations_DBMS100008
- Classification NameUniclass2015
- Classification ValuePr_65_54_95_50
- Code Performancen/a
- Colorn/a
- Connector DescriptionDN40 1½" MBSP x 1½" FBSP Metering Station
- Connector Diameter48 mm
- Connector Height 10 mm
- Connector Left Right0 mm
- Constituentsn/a
- Created Bytechnical@rwc.co.uk
- Created On05-04-2023
- Default Elevation0 mm
- DescriptionMetering Station
- Documentation Certificates--Link From Website--

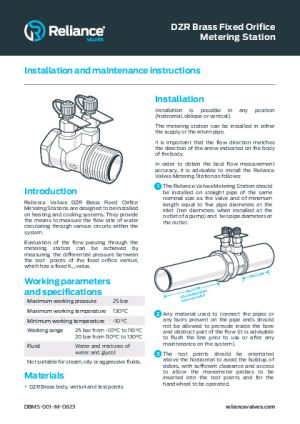

- Documentation Installation Guide--Link From Website--
- Documentation Literature--Link From Website--
- Documentation Maintenance--Link From Website--

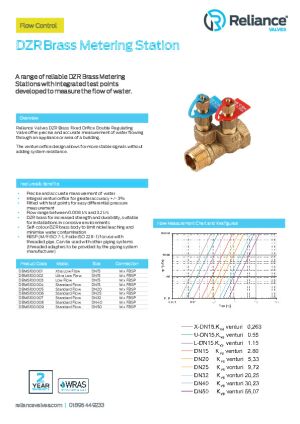

- Documentation Technical--Link From Website--
- Duration UnitYears
- Expected Life0
- Featuresn/a
- Finishn/a
- Flow0.0 L/s
- Graden/a
- Ifc Export AsIfcPipeFitting
- Ifc Export TypeIfcPipeFittingTypeEnum.Connector
- K Coefficient30.23
- KeynoteS
- Loss MethodK Coefficient
- ManufacturerReliance Worldwide Corporation (UK) Ltd.
- Manufacturer NameReliance Worldwide Corporation (UK) Ltd.
- Materialn/a
- ModelDN40 1½" MBSP x 1½" FBSP Metering Station DBMS100008
- Model NumberDBMS100008
- Model ReferenceDBMS100008
- NBS DescriptionMetering valves
- NBS Object NameRWC - Metering valves
- NBS Office Master Tagn/a
- Nominal Depth25 mm
- Nominal Height72 mm
- Nominal Length73 mm
- Pressure Drop0.0 Pa
- Production Year2023
- Referenced Standardn/a
- Replacement Costn/a
- Shapen/a
- Size72x25x69
- Spare Partsn/a
- Type CommentsDBMS100008 for system flow measurment
- Type NameDN40 1½" MBSP x 1½" FBSP Metering Station
- URLwww.rwc.co.uk
- Warranty Descriptionn/a
- Warranty Duration Labor0
- Warranty Duration Parts0
- Warranty Duration UnitYears
- Warranty Guarantor Laborn/a
- Warranty Guarantor Partstechnical@rwc.co.uk
We have more variations, please download the object to get them all.
Sustainability & Environmental Data
Not available.
Environmental Product Declarations
There are no EPDs.
