D885 & T90 - Angle Body And TRV Head

by Crane Fluid Systems

Download Add to collection

Description

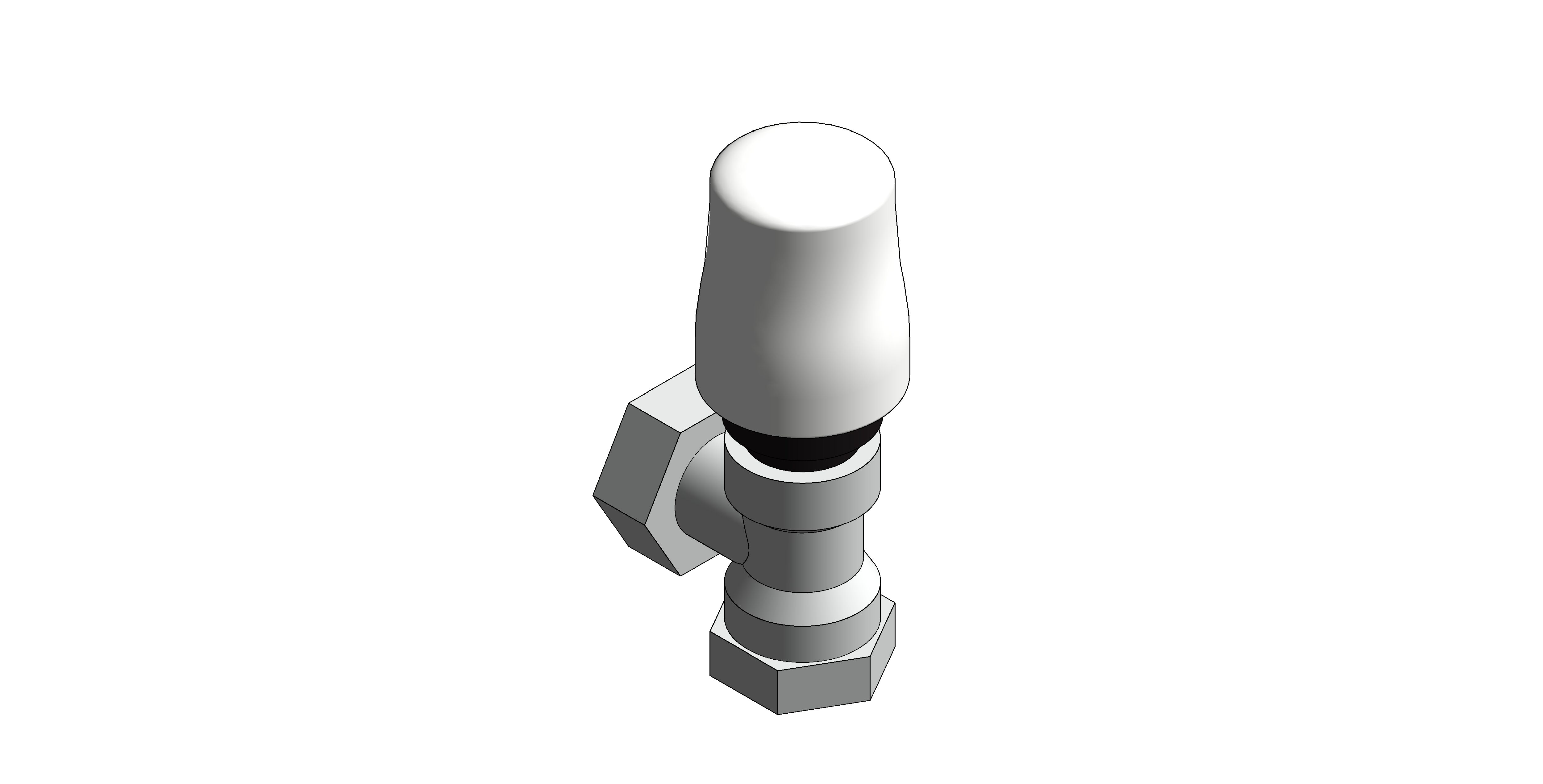

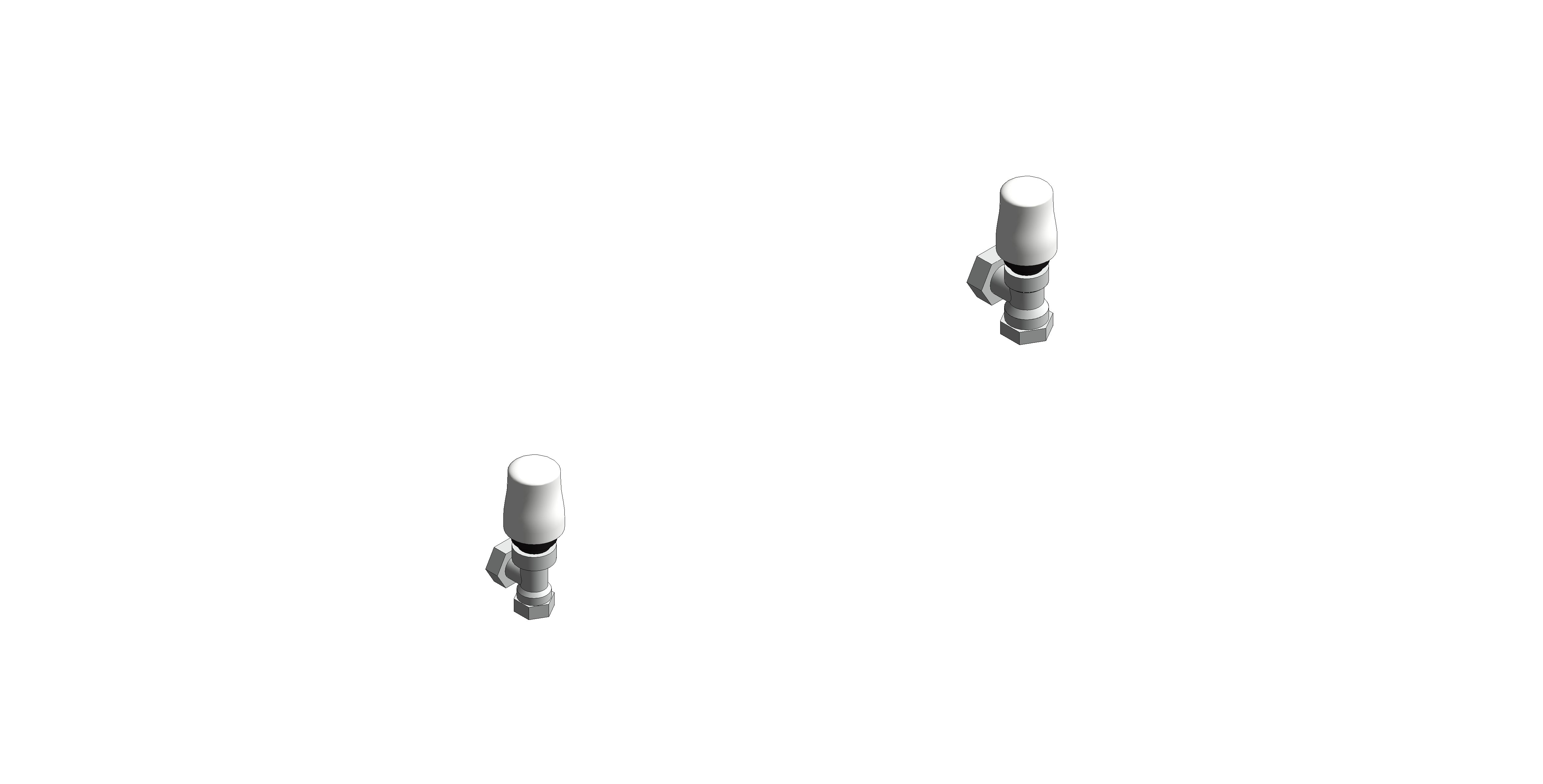

he new range offers interchange-ability of the TRV head and the Wheelhead. The revolutionary body design enables both the TRV head and the Wheelhead to be connected directly to a common valve body without the need for adaptors. This design breakthrough reduces the cost of stock holding and increases the versatility of the range. The range has been consolidated into a single chrome plated finish.

Object Data

1 Revision

Last Updated

22/03/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/d885-t90-angle-body-and-trv-head/document/object-user-guide
a20.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b19.00 mm
BIM Object NameCraneFS_AngleBodyAndTRVHead_D885&T90
BodyBrass (Chrome Plated) BS EN 12164 CW617N
c11.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_89
Code Performancen/a
Colorn/a
Compression AdaptorBrass BS EN 12164 CW614N
Compression OliveBrass BS EN 12164 CW602N
Connection Radius7.50 mm
Connection Size15.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2022-02-01 T:09:00:00
d6.50 mm
DescriptionThe new range offers interchange-ability of the TRV head and the Wheelhead. For the TRV Head see T90 data page. For Wheelhead option see T80 dats page. The revolutionary body design enables both the TRV head and the Wheelhead to be connected directly to a common valve body without the need for adaptors. This design breakthrough reduces the cost of stock holding and increases the versatility of the range. The range has been consolidated into a single chrome plated finish.
Documentation Certificateswww.bimstore.co/products/d885-t90-angle-body-and-trv-head/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/d885-t90-angle-body-and-trv-head/document/installation-guide
Documentation Literaturewww.bimstore.co/products/d885-t90-angle-body-and-trv-head/document/product-literature
Documentation Maintenancewww.bimstore.co/products/d885-t90-angle-body-and-trv-head/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/d885-t90-angle-body-and-trv-head/document/technical-data-sheet
Duration UnitYear
e3.50 mm
Expected Life0
f3.00 mm
Featuresn/a
Finishn/a
g12.00 mm
Graden/a
Hex 130.00 mm
Hex 226.00 mm
Hydraulic SealsRubber EPDM
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
k20.00 mm
K Coefficient0
KeynoteS
Loss MethodK Coefficient
m20.00 mm
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD885 & T90
Model NumberD885 & T90
Model ReferenceD885 & T90 - Angle Body & TRV Head - Brass (Chrome Plated)
n12.00 mm
NBS DescriptionThermostatic radiator valves
NBS Noten/a
NBS Object NameCraneFS - Thermostatic radiator valves
NBS Office Master Tagn/a
NBS Reference90-10-90/364
Nominal Depth35.00 mm
Nominal Height90.00 mm
Nominal Length47.00 mm
Production Year2022
Rad 112.50 mm
Rad 216.00 mm
Rad 315.00 mm
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size15mm
Spare Partsn/a
Symbol Length Inlet27.00 mm
Symbol Length Outlet32.00 mm
T90 STD Thermostatic HeadThermoplastic ABS
TailpieceBrass BS EN 12164 CW617N
Tailpiece RingBrass BS EN 12164 CW617N
Type CommentsD885 & T90 - Angle Body & TRV Head - Brass (Chrome Plated)
Type NameD885 & T90 - Angle Body & TRV Head - Brass (Chrome Plated)
URLwww.cranefs.com/
Valve Insert AssemblyEPDM Valve Disc
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
Weight0.35 kg
