D159 - Gate Valve

by Crane Fluid Systems

Download Add to collection

Description

Features & Benefits:

Non-rising stem design to minimise installation height
Full bore design to ensure minimal pressure drop
Adjustable gland packing for ease of maintenance
Material selection results in superior dezincification (DZR) and corrosion resistance properties
Body, bonnet and disc are made from low lead content bronze, typically 4-6%

Object Data

1 Revision

Last Updated

03/05/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

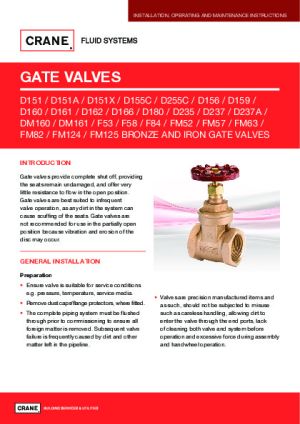

Installation Guide

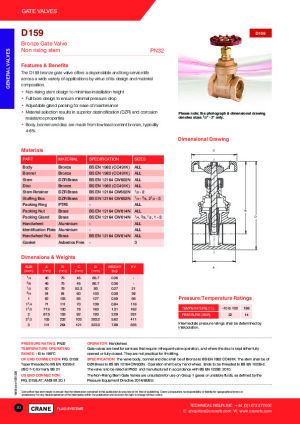

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
a17.22 mm
A77.50 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b36.00 mm
B130.00 mm
BIM Object NameCraneFS_GateValve_D159
BodyBronze BS EN 1982 (CC491K)
BonnetBronze BS EN 1982 (CC491K)
c20.00 mm
C78.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_15
Code Performancen/a
Colorn/a
Connection Size40.00 mm
Connection Size Radius20.00 mm
Constituentsn/a
c Rad26.50 mm
Created Byenquiries@cranefs.com
Created On2022-03-01 T:09:00:00
d7.00 mm
D163.00 mm
d 22.00 mm
DescriptionThe D159 bronze gate valve offers a dependable and long service life across a wide variety of applications by virtue of its design and material composition. PN32 Bronze Gate Valve. Features & Benefits: - Non-rising stem design to minimise installation height - Full bore design to ensure minimal pressure drop - -Adjustable gland packing for ease of maintenance - Material selection results in superior dezincification (DZR) and corrosion resistance properties - Body, bonnet and disc are made from low lead content bronze, typically 4-6%
DiscBronze BS EN 1982 (CC491K)
Documentation Certificateswww.bimstore.co/products/d159-gate-valve/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/d159-gate-valve/document/installation-guide
Documentation Literaturewww.bimstore.co/products/d159-gate-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/d159-gate-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/d159-gate-valve/document/technical-data-sheet
Duration UnitYear
e12.00 mm
End Connection(UK)Taper threaded to BS EN 10226-2 (ISO 7-1) formerly BS 21
End Connection(US)ANSI B1.20.1
Expected Life0
f15.00 mm
Features- Non-rising stem design to minimise installation height - Full bore design to ensure minimal pressure drop - -Adjustable gland packing for ease of maintenance - Material selection results in superior dezincification (DZR) and corrosion resistance properties - Body, bonnet and disc are made from low lead content bronze, typically 4-6%
Finishn/a
f Rad12.00 mm
g16.00 mm
GlandBrass BS EN 12164 CW614N
Graden/a
h14.18 mm
HandwheelAluminium
Handwheel NutBrass BS EN 12164 CW614N
Hex 157.16 mm
Hex 235.00 mm
Hex 328.00 mm
h Rad3.50 mm
i37.00 mm
ID PlateAluminium
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
i Rad2.00 mm
j37.00 mm
K Coefficient0
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD159
Model NumberD159
Model ReferenceD159 - Gate Valve - Bronze
NBS DescriptionCopper alloy gate valves
NBS Noten/a
NBS Object NameCrane FS - Copper alloy gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/342
Nominal Depth78.00 mm
Nominal Height163.00 mm
Nominal Length78.00 mm
OperatorHandwheel. Gate valves are best for services that require infrequent valve operation, and where the disc is kept either fully opened or fully closed. They are not practical for throttling.
Packing NutBrass BS EN 12164 CW614N
Packing RingAsbestos Free WRAS listed and approved
Pressure RatingPN32
Production Year2022
Rad26.00 mm
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2"
Spare Partsn/a
Specification NotesThe valve body, bonnet and disc shall be of Bronze to BS EN 1982 CC491K. The stem shall be of DZR Brass to BS EN 12164 CW602N. Operation shall be by hand wheel. Ends to be threaded to BS EN 10226-2. The valve is to be rated at PN32 and manufactured in accordance with BS EN 12288: 2010. The Non-Rising Stem Gate Valves are unsuitable for use on Group 1 gases or unstable fluids, as defined by the Pressure Equipment Directive 2014/68/EU.
StemBronze BS EN 12164 CW602N
Stuffing BoxBrass ASTM B371 C69400
Temperature Operating Range-10 to 198°C
Type CommentsD159 - Gate Valve - Bronze
Type NameD159 - Gate Valve - Bronze
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
Weight1.31 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
