F621 - 50mm to 200mm

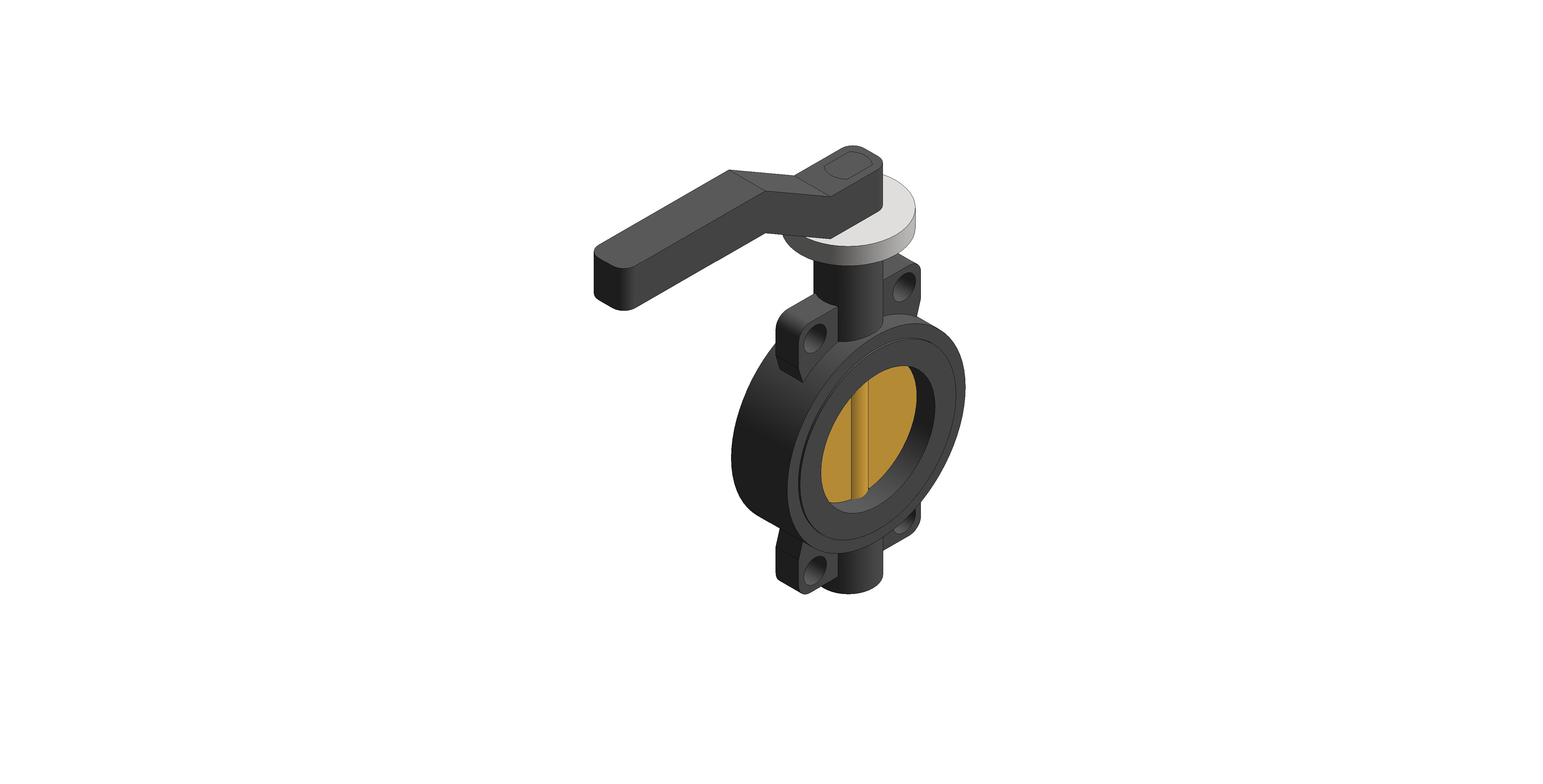

Semi-Lugged Lever Operated Butterfly Valves - Ductile Iron



Features & Benefits

  • WRAS approved for potable water applications -10°C to 80°C
  • Robust, ductile iron valve body for long life service
  • Valve body semi-lugged to fit PN16 or ANSI Class 125 flanges
  • The anti-blow out stem design provides a safe and secure operation
  • Integrated notch plate for a more compact design and aluminium lever to reduce risk of corrosion
  • Fully bonded epoxy paint system for superior corrosion resistance
  • Suitable for applications where Level 3 C3 (Medium) corrosion protection is required
  • Suitable for use with flanges conforming to BS EN 1092-2 PN10 or PN16 and ANSI B16.1 Class 125
  • Maintenance free valve design, reducing downtime
  • Suitable for a wide temperature range -10°C to 100°C



Size

50mm to 200mm

Pressure Rating

PN16 / Class 125

End Connections

To suit flange connections BS EN 1092-2 PN10 or PN16 and ANSI B16.1 Class 125.

Material

Ductile Iron
