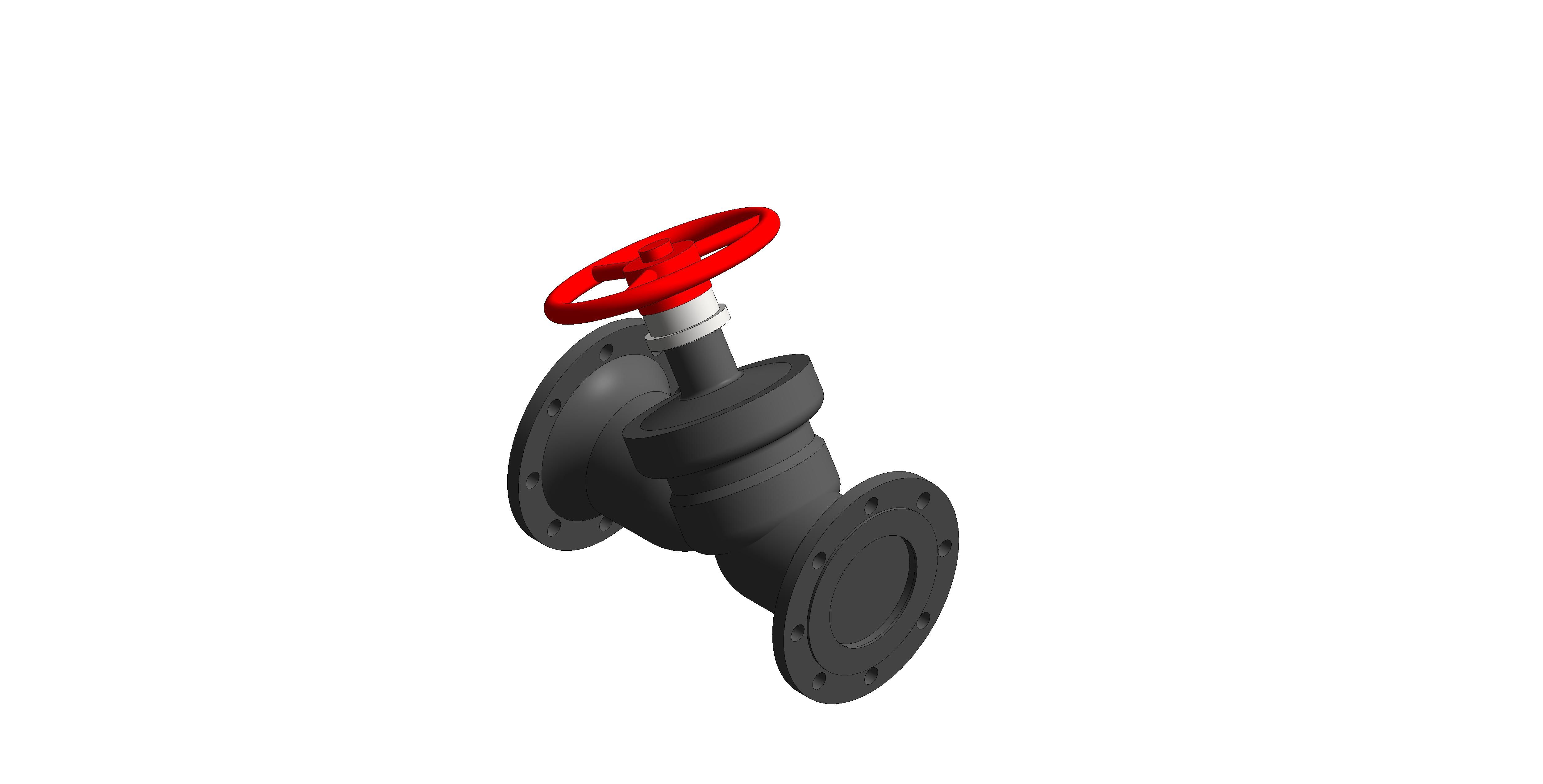

DM931 - Variable Orifice Double Regulating Valve (DRV) - Ductile Iron

  • ISO
  • ISO RANGE
SketchfabSketchfab
  • Views 28.2k
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

31/08/2021

Available for:
  • Logo: Autodesk Revit

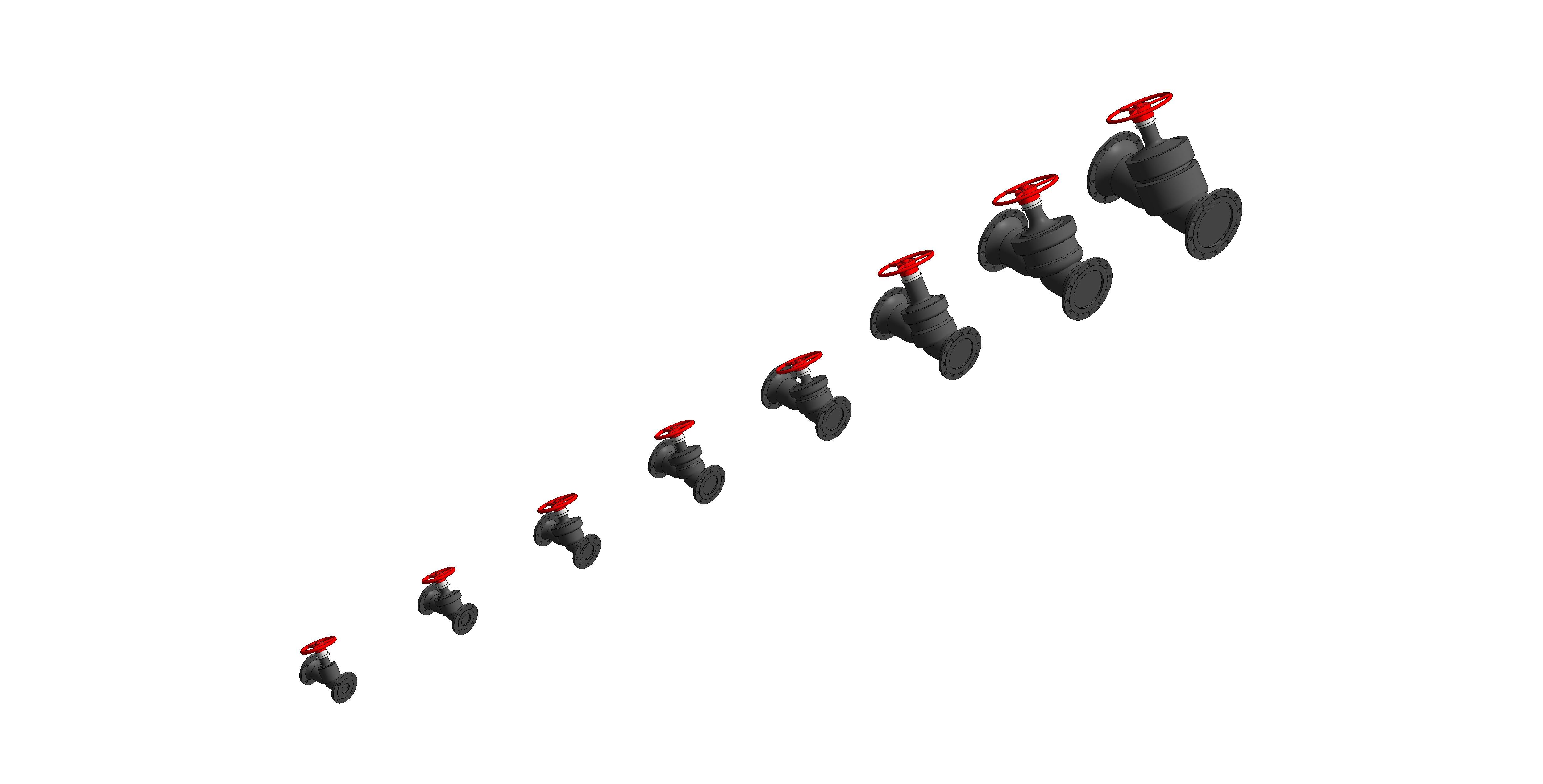

DM931 - DN65 to DN300

Variable Orifice Double Regulating Valve (DRV) - Ductile Iron



Features & Benefits

  • These are Y-Pattern globe valves supplied with two pressure test points P84 to provide flow measurement, regulation and isolation
  • The Double Regulating feature allows the valve to be used for isolation and to be reopened to its pre-set position to maintain required flow rate
  • Primarily used in injection or other circuits requiring a double regulating valve for system balancing
  • Accuracy of flow measurement is ±10% at the full open position of the valve
  • Some reduction in accuracy occurs at partial openings of the valve in accordance with BS 7350



Size

DN65 to DN300

Pressure Rating

PN16

Flow Rate

Please see Flow Measurement Graphs

Temperature Rating

10 - 120°C

End Connections

Flanged

Material

Ductile Iron
