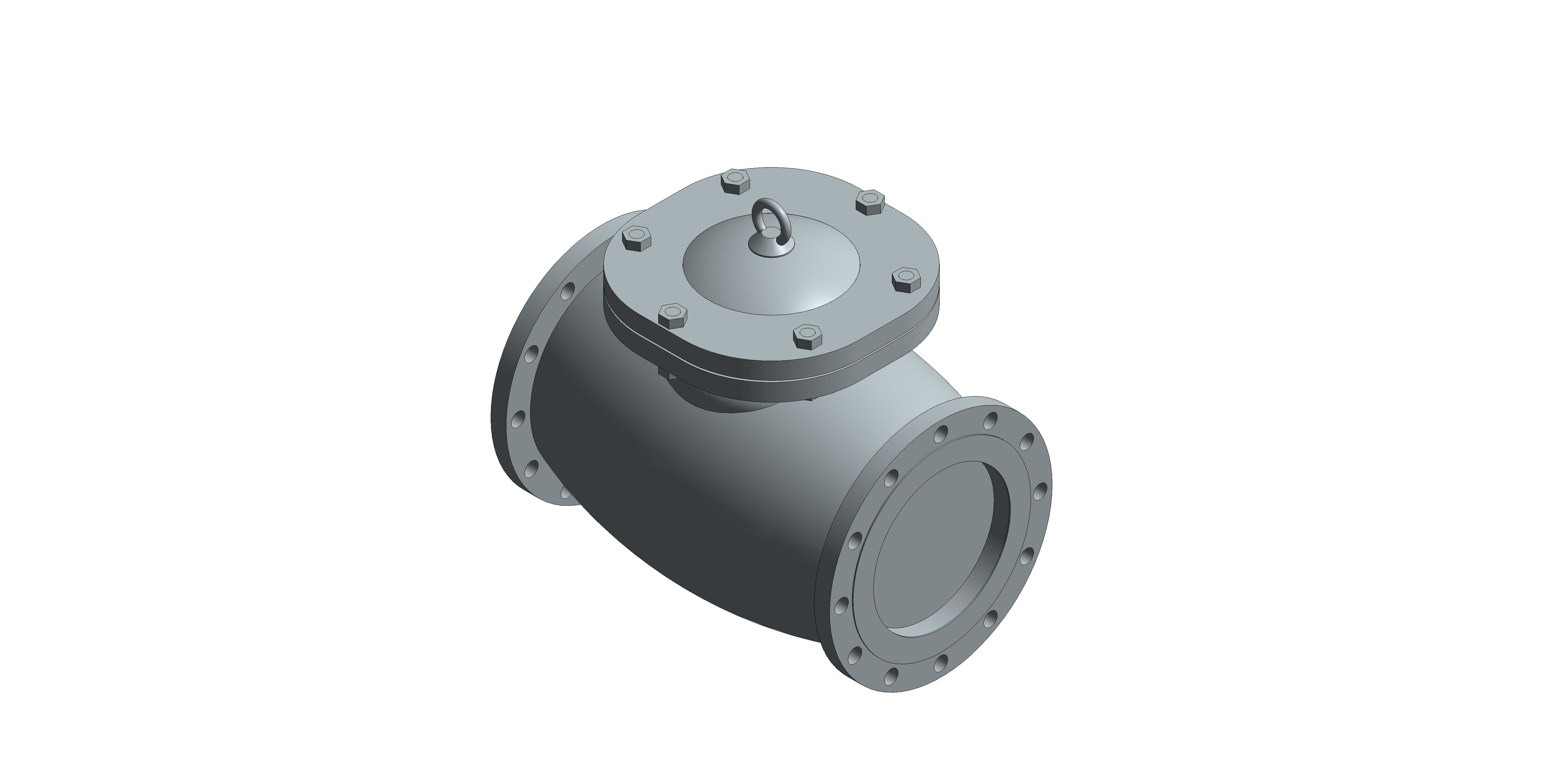

147XU - Swing Check Valve - Cast Steel

by Crane Fluid Systems

Download Add to collection

Description

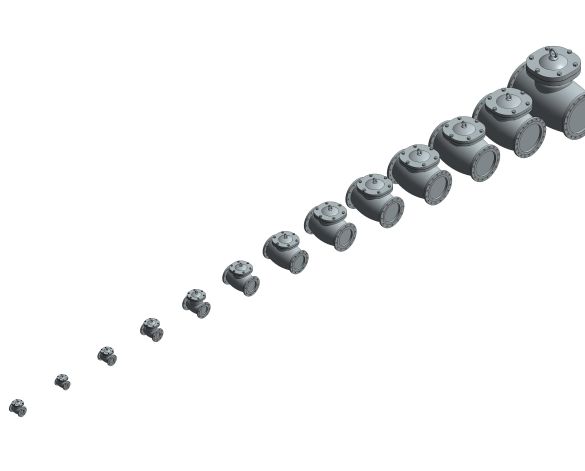

147XU - 2" to 24"

Swing Check Valve - Cast Steel

Class 150 Steel Swing Check Valve

Features & Benefits

Cast Steel, bolted cap and flanged
Swing check valves prevent reversal of flow through the pipeline
Can be installed in horizontal or vertical, upward flow piping
Offer low resistance to flow and are particularly suited to low velocity service
Seat ring is seal welded to eliminate leak paths

Size	2" to 24"
Pressure Rating	Class 150
Material	Carbon Steel

Object Data

1 Revision

Last Updated

31/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

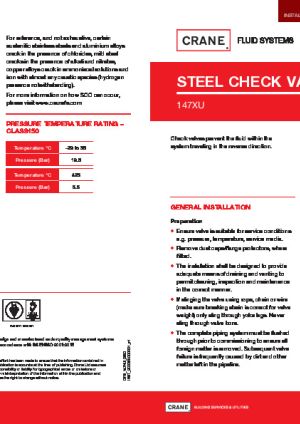

Maintenance Information

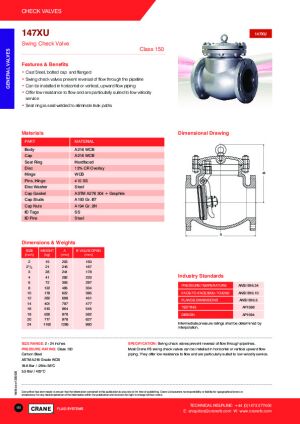

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/cranefs-147xu/document/object-user-guide
A622.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B395.00 mm
BIM Object NameCraneFS_CheckValve_Swing_147XU
Body Centre590.00 mm
Body Radius800.00 mm
Body Vertical Radius148.00 mm
Body Width562.00 mm
Bolt Offset360.00 mm
Border Circle Length420.00 mm
Border Circle Offset50.00 mm
Border Circle Radius50.00 mm
Cap Disk Depth46.47 mm
Cap Nut Height21.12 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_40_13
Code Performancen/a
Colorn/a
Connection Size250.00 mm
Connection Size Radius125.00 mm
Constituentsn/a
Cover Disc Centre114.29 mm
Cover Disc Radius160.00 mm
Cover Disc Size400.00 mm
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
Description147XU - Swing Check Valve - Cast Steel
Documentation Certificateswww.bimstore.co/products/cranefs-147xu/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/cranefs-147xu/document/installation-guide
Documentation Literaturewww.bimstore.co/products/cranefs-147xu/document/product-literature
Documentation Maintenancewww.bimstore.co/products/cranefs-147xu/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/cranefs-147xu/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Flange Diameter406.00 mm
Flange Hole Centres362.00 mm
Flange Hole Diameter25.00 mm
Flange Hole Offset Radius181.00 mm
Flange Hole Radius12.50 mm
Flange Radius203.00 mm
Flange Raised Face Diameter324.00 mm
Flange Raised Face Height2.00 mm
Flange Raised Face Radius162.00 mm
Flange Thickness30.00 mm
Graden/a
Hinge Pin Centre Offset76.79 mm
Hinge Pin Length296.00 mm
Hinge Pin Radius37.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
K Coefficient3072.69
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
Model147XU - Swing Check Valve - Cast Steel
Model Number147XU
Model Reference147XU - Swing Check Valve - Cast Steel
NBS DescriptionCheck valves
NBS Noten/a
NBS Object NameCrane FS - Check valves
NBS Office Master Tagn/a
NBS Reference90-15-40/323
Nominal Depth405.00 mm
Nominal Height598.00 mm
Nominal Length622.00 mm
Number Of Holes12
Nut Diameter33.33 mm
Nut Height14.81 mm
Nut Length64.98 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Ring Bottom29.91 mm
Ring Height100.03 mm
Ring Radius6.50 mm
Ring Top13.00 mm
Shapen/a
Size10"
Spare Partsn/a
Type Comments147XU - Swing Check Valve - Cast Steel
Type Name147XU - Swing Check Valve - Cast Steel
URLwww.cranefs.com/
Valve MaterialCrane - Metal - Cast Steel
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
