FM63 - Gate Valve - Cast Iron

18.9k
0
4.8 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

06/10/2021

Download BIM

Add to collection

Available for:

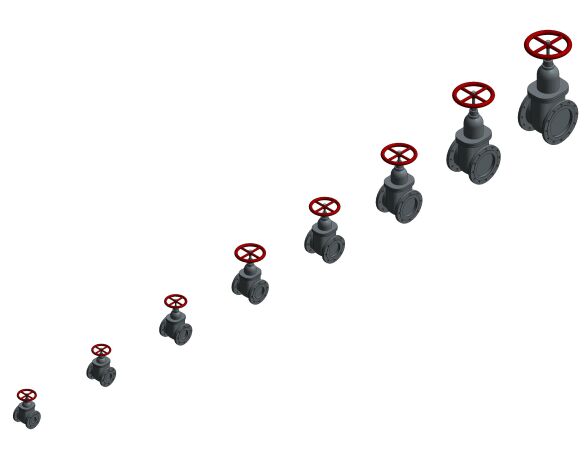

FM63 - 65mm to 300mm

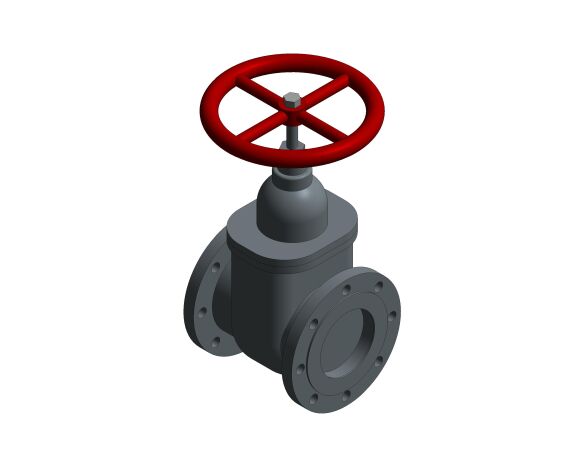

Gate Valve - Cast Iron

PN16 Cast Iron Gate Valve

Features & Benefits

Crane cast iron gate valves offer the ultimate in dependable service wherever minimum pressure drop is important.
Each valve is manufactured in accordance with BS EN 1171: 2002
Hydrostatically tested to BS EN 12266-1: 2003

Size	65mm to 300mm
Pressure Rating	PN16
End Connections	Flanged BS EN 1092-2: PN16
Material	Cast Iron

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-fm63/document/object-user-guide
12 HolesNo
4 HolesNo
8 HolesYes
A229 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B24 mm
BIM Object NameCraneFS_GateValve_FM63
Body Radius73 mm
Body Width181 mm
Bonnet Disk Depth12 mm
Bonnet Disk Length183 mm
Bonnet Gap0 mm
C220 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_96
Code Performancen/a
Colorn/a
Connection Size100 mm
Connection Size Radius50 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
D356 mm
DescriptionFM63 - Gate Valve - Cast Iron
Documentation Certificateswww.bimstore.co/products/crane-fs-fm63/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-fm63/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-fm63/document/product-literature

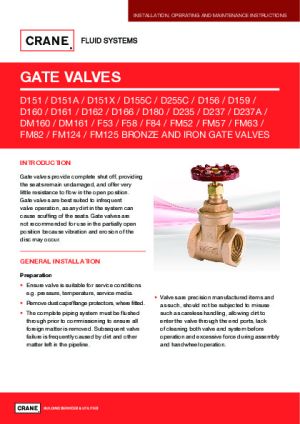

Documentation Maintenancewww.bimstore.co/products/crane-fs-fm63/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-fm63/document/technical-data-sheet
Dome Offset35 mm
Duration UnitYear
E220 mm
End Connector Hole Centre180 mm
End Connector Hole Diameter19 mm
End Connector Raised Height3 mm
Expected Life0
F156 mm
Featuresn/a
Finishn/a
Gland Length207 mm
Gland Packing Nut Diameter28 mm
Graden/a
Handle MaterialCrane - PVC - Maroon
Handlewheel Radius110 mm
Handwheel Nut Diameter18 mm
Handwheel Nut Height9 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient1125.41
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelFM63 - Gate Valve - Cast Iron
Model NumberFM63
Model ReferenceFM63 - Gate Valve - Cast Iron
NBS DescriptionWaterworks gate valves
NBS Noten/a
NBS Object NameCrane FS - Waterworks gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/312
Nominal Depth220 mm
Nominal Height466 mm
Nominal Length229 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size100mm
Spare Partsn/a
Stem Corner Radius35 mm
Stem Height87 mm
Stem Loop Depth174 mm
Stem Loop Width115 mm
Stem Lower Circle Radius87 mm
Stem Radius7 mm
Top Of Dome38 mm
Top Of Stem132 mm
Type CommentsFM63 - Gate Valve - Cast Iron
Type NameFM63 - Gate Valve - Cast Iron
URLwww.cranefs.com/
Valve MaterialCrane - Metal - Cast Iron
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
